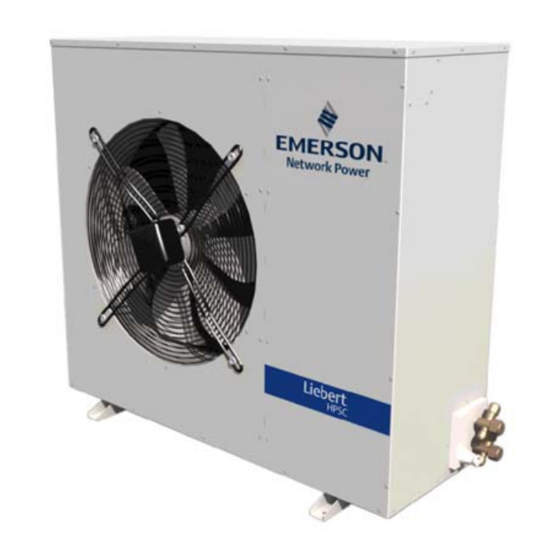

Liebert HPSE Product Documentation

High performance, for mobile network access nodes
Hide thumbs

Advertisement

Table of Contents

Liebert HPS
High Performance Split Air Conditioner for Mobile Network Access Nodes
HPSE
HPSC

PRODUCT DOCUMENTATION

Precision Cooling for
Business- - Critical Continuity
SE_W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPSE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Liebert HPSE

Summary of Contents for Liebert HPSE

  • Page 1: Product Documentation

    Precision Cooling for Business- - Critical Continuity Liebert HPS High Performance Split Air Conditioner for Mobile Network Access Nodes HPSE SE_W HPSC PRODUCT DOCUMENTATION...
  • Page 2 (noise level, allowed environmental conditions range etc.) and the desired option (free cooling, emergency free cooling, heating etc.). The Liebert HPS family is also available in the HPSW version, made of the SE_W indoor wall mounted moudule coupled with the HPSC outdoor module.

  • Page 3: Table Of Contents

    The product conforms to European Union directives 2006/42/EC; 2004/108/EC; 2006/95/EC and 97/23/EC. Units are supplied complete with a test certificate and conformity declaration and control component list. Liebert HPS units are CE marked as they comply with European directives concerning mechanical, electrical electromagnetic safety.

  • Page 4: Features And Benefits

    Distribute the air in the best way The HPSE, ceiling mounted indoor unit is thought to send the cold air straightly down, close to the racks suction area and intakes the hot air out coming from the heat sources, into the cabinet sides (frontal and lateral).

  • Page 5: Model Description And Selection

    Cooling Capacity “kW” (Nominal Cooling Capacity) Split Evaporator Section (Indoor Unit) High Performance Unit HPSE 06 --- 14 BASE UNIT EVAPORATOR SECTION Split air cooled indoor unit Digits 1, 2, 3, 4, 5, 6 Digit 11 ---Air filter RAL7035 “bright grey” cabinet...
  • Page 6 D = Control + graphic display and language Set L2 Language set L1: GB, F, I, D, E, P , NL, S. Language set L2: GB, PL, CZ , H, RUS, TK. 2 -- 2 Liebert HPS--- PD--- 272965--- 20.11.2009...
  • Page 7 3 = Epoxy coated condenser fins with protection grilles Digit 9 --- Packing 0 = Pallet + heavy cardboard C = Cardboard and wooden crate S = Seaworthy Digit 10 ---Special requirements 0 = None X = Special 2 -- 3 Liebert HPS--- PD--- 272965--- 20.11.2009...

  • Page 8: Mechanical Specifications

    Depending on unit version, evaporating fan(s), all dir- and heat exchangers (CEILING) ect driven, can be axial (HPSE ceiling mounted, cool- ing only), centrifugal (SE_W only cooling) or centrifu- gal backward curved (HPSE ceiling or SE_W wall mounted, Freecooling and Emergency Freecooling).

  • Page 9: Electrical Panel

    (RAL7035). The evaporating unit can be placed ceiling mounted (HPSE) or wall mounted (SE_W). In the HPSE, air inlet is located in the 3 side panels and the air supply is done from the bottom section, through an integrated grille.
  • Page 10 The max. indoor temperature is referred to outdoor temperature of 35˚C; for higher indoor relative humidities and/or outdoor temperatures, the max indoor temperature is lower than the table data. 3 -- 3 Liebert HPS--- PD--- 272965--- 20.11.2009...
  • Page 11 Mechanical Specifications Fig. 1 --- HPSE ceiling mounted --- Operating diagram (without freecooling) Return CROSS SECTION Return air Treated air ITEM DESCRIPTION Evaporating coil TOP VIEW (WITHOUT PANEL) Fig. 2 --- HPSE ceiling mounted --- Operating diagram (with freecooling) Return...
  • Page 12 Without SIDE freecooling option CONDITIONED SIDE RETURN OUTSIDE RETURN ITEM DESCRIPTION Freecooling damper Air filter Evaporator coil Evaporator unit fan Air discharge duct Damper motor Air suction grille Electrical panel evaporating unit 3 -- 5 Liebert HPS--- PD--- 272965--- 20.11.2009...

  • Page 13: Control

    Control Main features The main board is housed in the electrical panel of the HPSE and can be connected to the remote display, installed container/room (connection cable is included in the remote display option). The user interface (option) is the 3---digit back ---lit display showing parameter values and relevant symbols/codes in a tree menu.

  • Page 14: Options

    In the HPSE ceiling mounted version, the innovative rotary system allows the air conditioner to be equipped with the freecooling system without any adding module, maintaining the standard unit dimensions.

  • Page 15: Test And Reference Norms

    Test and Reference Norms Safety Liebert HPS units are designed, manufactured and tested according to the European Union dir- ectives: 2006/42/EC; 2004/108/EC; 2006/95/EC; 97/23/EC. Electrical Board Design and manufacturing is compliant with EN 60204---1. Electro---Magnetic compatibility (EMC) Liebert HPS complies with the following EMC standards: EN 50081 ---1, Emission (“Generic emission standard, Part 1: Residential, commercial and...

  • Page 16: Technical Data

    Technical Data Tab. 1 --- HPSE + HPSC (No freecooling version) MODEL: HPS Air supply Downflow Main power supply 230V±10%/1Ph/50Hz 400V±10%/3Ph+N+PE/50Hz PERFORMANCE Total cooling capacity Sensible cooling capacity Compressor --- AC power input 1.58 2.18 Compressor --- AC operative current (OA) Compressor --- AC max current (FLA) 11.4...
  • Page 17 Technical Data Tab. 2 --- HPSE + HPSC (Freecooling and AC emergency freecooling versions) MODEL: HPS Air supply Downflow Main power supply 230V±10% / 1Ph / 50Hz 400V±10%/3Ph+N+PE/50Hz Emergency power supply 230V±10% / 1Ph / 50Hz PERFORMANCE Total cooling capacity...
  • Page 18 Technical Data Tab. 3 --- HPSE + HPSC (Freecooling and DC emergency freecooling versions) MODEL: HPS Air supply Downflow Main power supply 230V±10% / 1Ph / 50Hz 4000V±10%/3Ph+N+PE/5Hz Emergency power supply 48 VDC PERFORMANCE Total cooling capacity Sensible cooling capacity Compressor --- AC power input 1.57...
  • Page 19 Technical Data Tab. 4 --- HPSE + HPSC Advanced/Long piping (No freecooling version) MODEL: HPS ADVANCED/LONG PIPING Air supply Downflow 230V±10% / Main power supply 400V±10% / 3Ph+N+PE / 50Hz 1Ph / 50Hz PERFORMANCE Total cooling capacity 10.0 12.5 14.6 Sensible cooling capacity 10.0...
  • Page 20 Technical Data Tab. 5 --- HPSE + HPSC Advanced/Long piping (Freecooling and AC emergency freecooling versions) MODEL: HPS ADVANCED/LONG PIPING Air supply Downflow 230V ±10% Main power supply 400V±10% / 3Ph+N+PE / 50Hz / 1Ph / 50Hz Emergency power supply 230V±10% / 1Ph / 50Hz...
  • Page 21 Technical Data Tab. 6 --- HPSE + HPSC Advanced/Long piping (Freecooling and DC emergency freecooling versions) MODEL: HPS ADVANCED/LONG PIPING Air supply Downflow 230V ±10% Main power supply 400V±10% / 3Ph+N+PE / 50Hz / 1Ph / 50Hz Emergency power supply...
  • Page 22 (3) --- Measured with outdoor temperature of 35˚C, at 2 m from the unit, in free field conditions. (4) --- Maximum outdoor temperature referred to 27˚C / 47% R.H. air intake. (*) --- HPSW 13 is composed by SE 13W + HPSC 12. 7 -- 7 Liebert HPS--- PD--- 272965--- 20.11.2009...
  • Page 23 (3) --- Measured with outdoor temperature of 35˚C, at 2 m from the unit, in free field conditions. (4) --- Maximum outdoor temperature referred to 27˚C / 47% R.H. air intake. (*) --- HPSW 13 is composed by SE 13W + HPSC 12. 7 -- 8 Liebert HPS--- PD--- 272965--- 20.11.2009...
  • Page 24 (3) --- Measured with outdoor temperature of 35˚C, at 2 m from the unit, in free field conditions. (4) --- Maximum outdoor temperature referred to 27˚C / 47% R.H. air intake. (*) --- HPSW 13 is composed by SE 13W + HPSC 12. 7 -- 9 Liebert HPS--- PD--- 272965--- 20.11.2009...

  • Page 29: Dimensional Drawings

    COLLAR 190 X 560 HEIGHT 35 mm BOTTOM VIEW BOTTOM VIEW Condensate drain Condensate drain Refrigerant inlet Refrigerant inlet Refrigerant outlet Refrigerant outlet Electrical connections N.6 HOLES 4 8 REAR VIEW SIDE VIEW TOP VIEW 8 -- 5 Liebert HPS--- PD--- 272965--- 20.11.2009...
  • Page 30 Dimensional Drawings Fig. 9 --- Evaporating unit SE 06W (version without freecooling) Refrigerant outlet Refrigerant inlet Condensate drain BOTTOM VIEW Electrical connections N.6 HOLES ø8 REAR VIEW SIDE VIEW TOP VIEW 8 -- 6 Liebert HPS--- PD--- 272965--- 20.11.2009...
  • Page 31 COLLAR 250 X 600 HEIGHT 35 mm BOTTOM VIEW BOTTOM VIEW Condensate drain Condensate drain Refrigerant inlet Refrigerant inlet Refrigerant outlet Refrigerant outlet Electrical connections N.8 HOLES 4 8 REAR VIEW SIDE VIEW 1055 TOP VIEW 8 -- 7 Liebert HPS--- PD--- 272965--- 20.11.2009...
  • Page 32 Fig. 11 --- Evaporating unit SE 08-- 10-- 13-- 14W (version without freecooling) Refrigerant outlet Refrigerant inlet Condensate drain BOTTOM VIEW Electrical connections 1086 N.8 HOLES 4 8 REAR VIEW SIDE VIEW 1052 TOP VIEW 8 -- 8 Liebert HPS--- PD--- 272965--- 20.11.2009...

  • Page 35: Installation

    Installation Fig. 14 --- HPSE 06-- 08-- 10-- 12-- 14 evaporating unit ceiling installation (version without freecooling) Service area for electical board 803 (HPSE 06--08--10) min. 300 903 (HPSE 12--14) Ceiling fixing points 9 -- 1 Liebert HPS--- PD--- 272965--- 20.11.2009...
  • Page 36 Installation Fig. 15 --- HPSE 06-- 08-- 10-- 12-- 14 evaporating unit installation (version with freecooling) Service area for electical board HPSE min. 300 min. 300 08---10---12---14 min. 320 ITEM DESCRIPTION Electrical box accessibility Support for filter Air filter Freecooling filter accessibility...
  • Page 37 Installation Fig. 16 --- HPSE 06-- 08-- 10-- 12-- 14 evaporating unit ceiling installation (version with freecooling) COD. COD. ITEM DESCRIPTION HPSE 06 HPSE 08---10---12---14 Wall plate for circular duct 13503801 13536101 2 flexible ducts with fixing clamps, L = 0.5 m 270190 (ø...
  • Page 38 Fig. 17 --- SE 06-- 08-- 10-- 13-- 14W service area VERSION WITH FREECOOLING VERSION WITHOUT FREECOOLING Fig. 18 --- SE 06-- 08-- 10-- 13-- 14W evaporating unit wall installation With freecooling option AIR CONDITIONED Without freecooling option AIR CONDITIONED 9 -- 4 Liebert HPS--- PD--- 272965--- 20.11.2009...
  • Page 39 Aluminium grille with metallic prefilter 270202 270219 Metallic prefilter (included in (8) Hole in the wall 550 x 210 mm 590 x 230 mm Wall plate for FC rectangular duct 13501801 13536001 9 -- 5 Liebert HPS--- PD--- 272965--- 20.11.2009...
  • Page 40 Installation Fig. 20 --- HPSC 06-- 08-- 10-- 12-- 14 condensing unit installation components HPSC 06---08 HPSC 10---12---14 ITEM DESCRIPTION Serrated lock washer Washer Anti--- vibrating mount Bracket 9 -- 6 Liebert HPS--- PD--- 272965--- 20.11.2009...
  • Page 41 If 0.5 x H2 ≤ H1 ≤ H2 . . . ⇒ L min. = 800 mm If H1 > H2 ....⇒ Not allowable configuration 9 -- 7 Liebert HPS--- PD--- 272965--- 20.11.2009...
  • Page 42 Installation Fig. 22 --- Liebert HPS (HPSE + HPSCxx0/A) suggested refrigerant connections Gas pipeline (Sloping 1%) HPSC HPSE Liquid/gas pipeline (External Unit) (Internal Unit) 10 m max. horizontal equivalent length Syphons (obligatory) Gas pipeline (Sloping 1%) Gas pipeline (Sloping 1%)
  • Page 43 Installation Fig. 23 --- Liebert HPS (HPSE + HPSCxxL, Long piping) suggested refrigerant connections Gas pipeline (Sloping 1%) Liquid/gas pipeline HPSE HPSC (Internal Unit) (External Unit) 50 m max. horizontal equivalent length Syphons (obligatory) Gas pipeline (Sloping 1%) HPSC (External Unit)
  • Page 44 Installation Fig. 24 --- Liebert HPSW (SE_W + HPSCxxA) suggested refrigerant connections HPSC (External Unit) SE_W (Internal Unit) Gas pipeline (Sloping 1%) Liquid/gas pipeline 10 m max. horizontal equivalent length Syphons (obligatory) SE_W (Internal Unit) Gas pipeline (Sloping 1%) Gas pipeline...
  • Page 45 Installation Fig. 25 --- Liebert HPSW (SE_W + HPSCxxL, Long piping) suggested refrigerant connections HPSC (External Unit) SE_W (Internal Unit) Gas pipeline (Sloping 1%) Liquid/gas pipeline 50 m max. horizontal equivalent length Syphons (obligatory) Gas pipeline (Sloping 1%) SE_W HPSC...
  • Page 47 De Fabrikant verklaart dat dit produkt conform de Europese richtlijnen is: Vaimistaja vakuuttaa täten, että tämä tuote täyättää seuraavien EU--- direktiivien vaatimukset: Since the Liebert HIROSS Company has a policy of continuous product improvement, it reserves the right to change design and Produsent erklærer herved at dette produktet er i samsvar med EU--- direktiver:...
  • Page 48 ©2008 Liebert Corporation All rights reserved throughout the world. Specifi cations subject to change without notice. Liebert and the Liebert logo are registered trademarks of Liebert Corporation. All names referred to are trademarks or registered trademarks of their respective owners.
