Internal Views - Icom IC-756 Instruction Manual

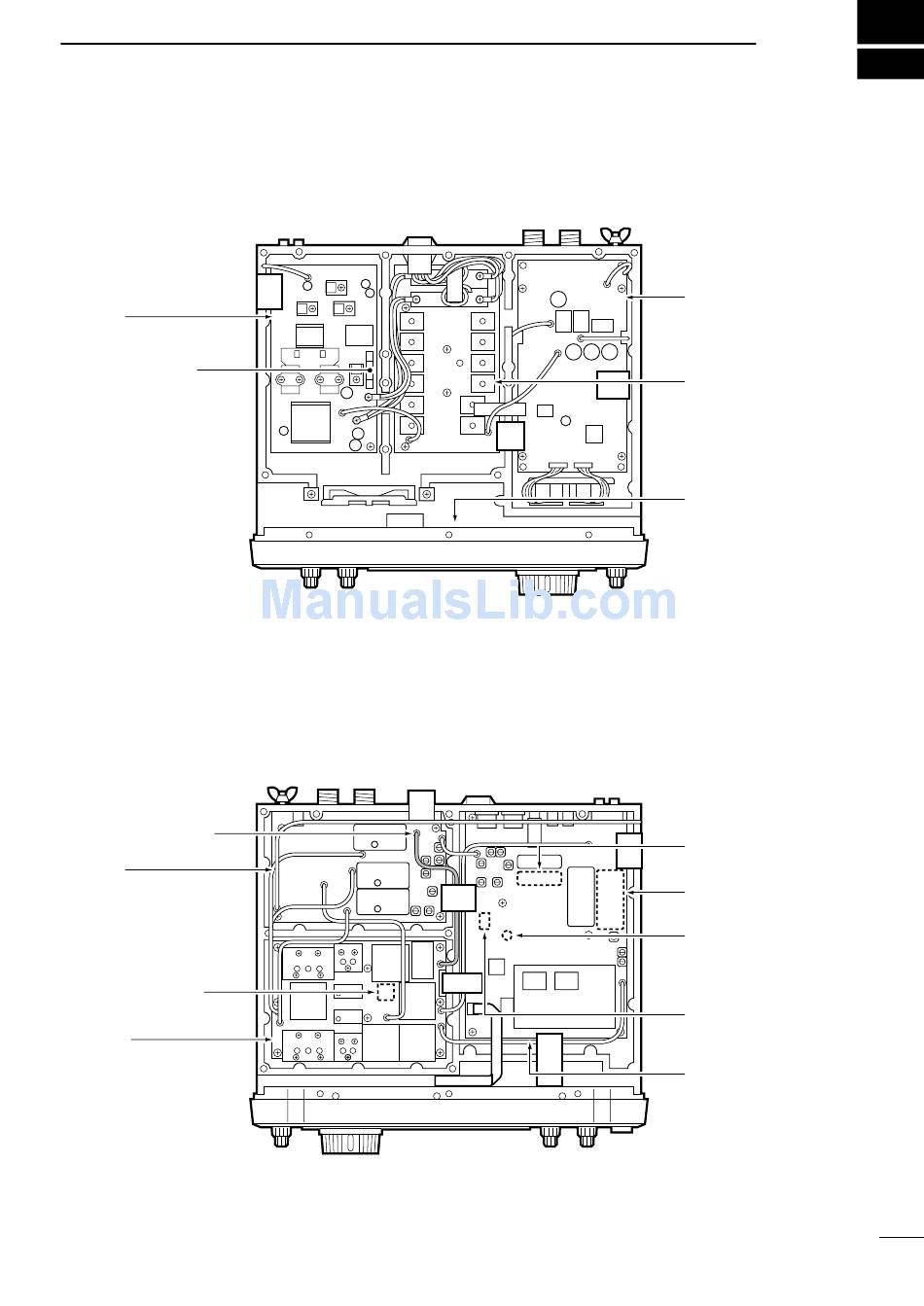

• Top view
PA unit
PA fuse (FGB 5 A)
• Bottom view
Reference freq. check
point (cable from J81;
60.000 MHz)
RF unit
Space for optional
high-stability crystal
unit (CR-502)
PLL unit

INTERNAL VIEWS

Internal antenna
tuner
FILTER unit
Clock backup battery
Space for optional
9 MHz filter
Space for optional
455 kHz filter
R572 Optional voice
synthesizer level adj.
Space for optional
voice synthesizer
(UT-102)
MAIN unit
