3

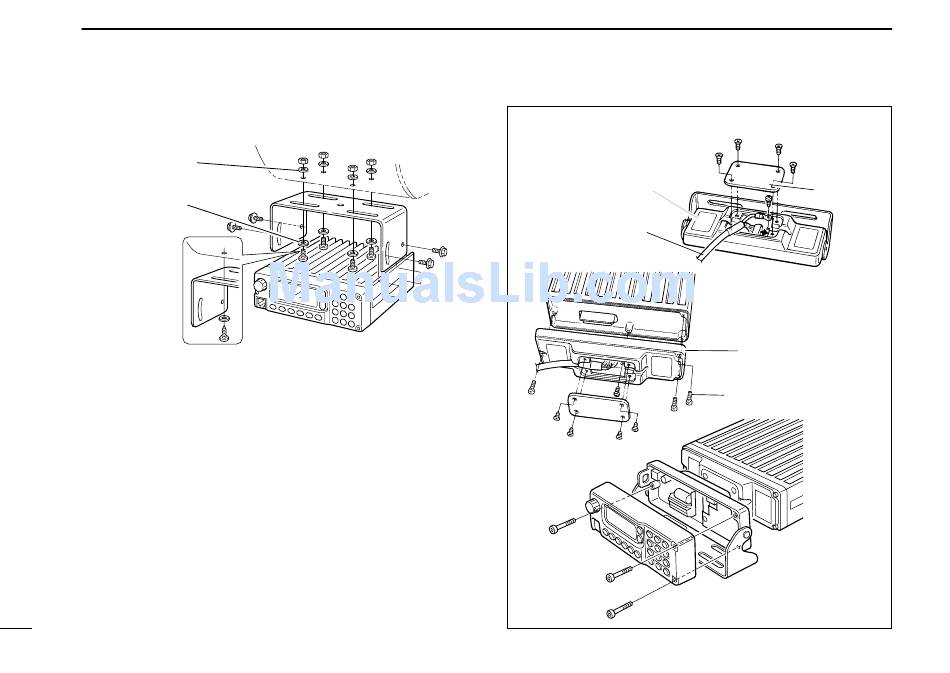

CONNECTION AND INSTALLATION
I Mounting
Flat washer
Spring washer
When using
self-tapping screws
I Separation
➀
Separate the front panel from the transceiver main unit
using the allen wrench (
➁
Connect the optional OPC-609 cable to both the front and
main unit attachments (figures 1 and 2).
• Remove the rear plate of the attachment.
• Use the supplied screw to connect a cable lug.
• For the main unit attachment, attach to the main unit using the
supplied screws, in advance.
➂
Attach the front panel and attachment with the 3 removed
allen socket bolts (fig. 3).
12
").
1
⁄
32
Separation (using RMK-1)
Attachment
(for front panel)
OPC-609
Rear plate
Fig. 1
Fig. 2
Attachment
(for main unit )
Supplied screws
with the RMK-1
Fig. 3
