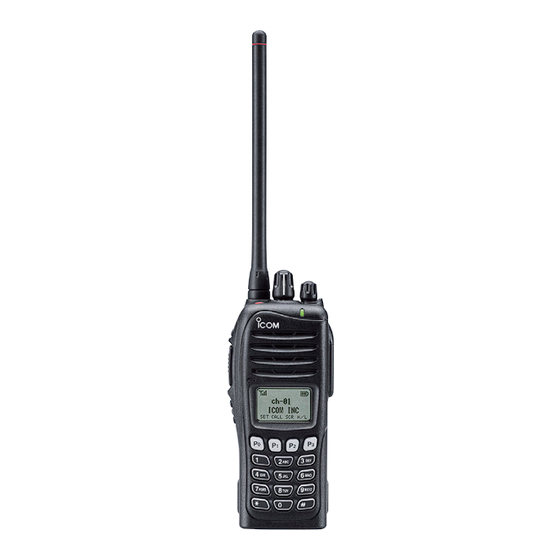

VHF TRANSCEIVER
S-14223HZ-C1-w
Mar. 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-F3061T and is the answer not in the manual?

Questions and answers

Related Manuals for Icom IC-F3061T

Summary of Contents for Icom IC-F3061T

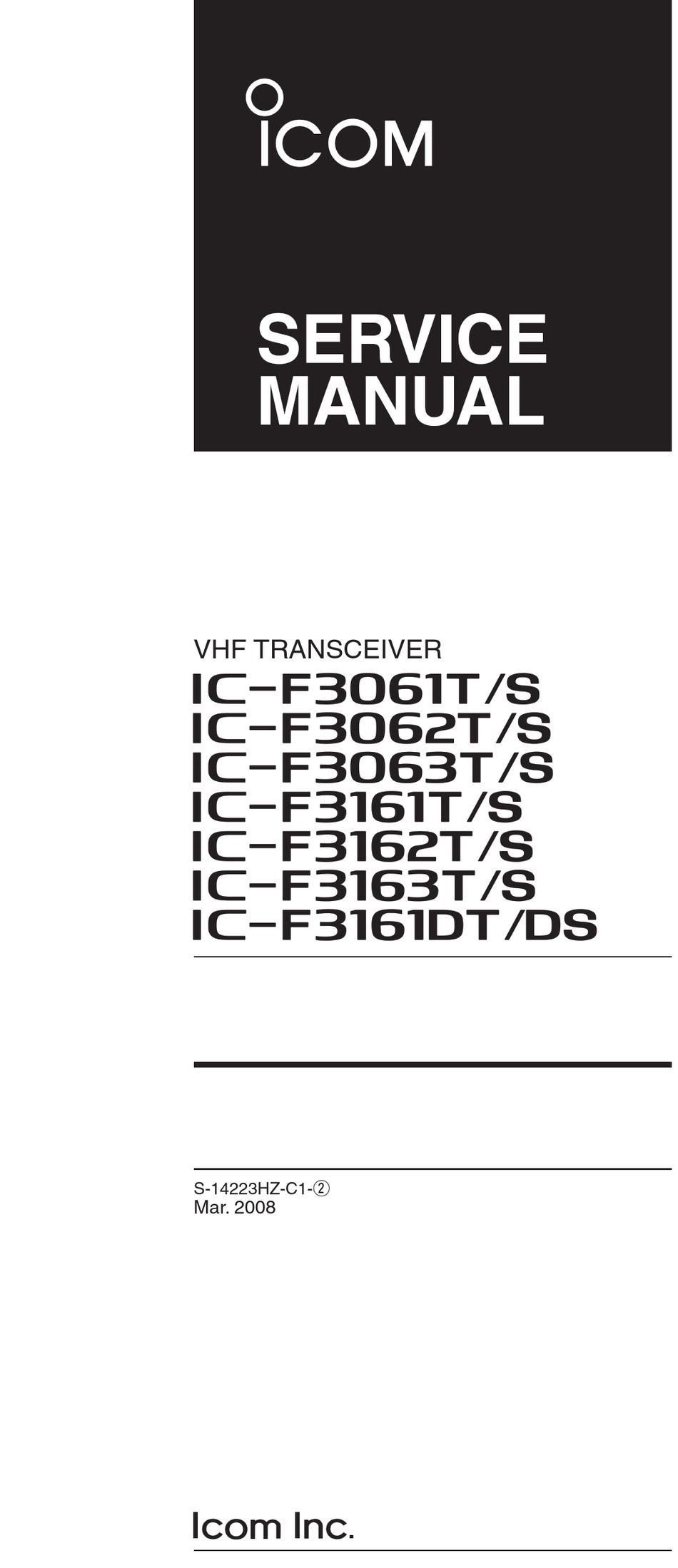

  • Page 1 VHF TRANSCEIVER S-14223HZ-C1-w Mar. 2008...
  • Page 2 8. READ the instructions of test equipment throughly before connecting a test equipment to the transceiver. Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Russia and/or other countries.

  • Page 3: Table Of Contents

    CONTENTS SECTION SPECIFICATIONS SECTION INSIDE VIEWS SECTION DISASSEMBLY INSTRUCTIONS SECTION OPTIONAL UNIT INSTALLATION SECTION CIRCUIT DESCRIPITON RECEIVER CIRCUITS............5-1 TRANSMITTER CIRCUITS .

  • Page 4: Specifications

    • Antenna impedance • Operating temperature range −22˚F to +140˚F –25˚C to +55˚C • Power supply requirement Specified Icom's battery packs only (Operatable voltage; 7.2 V DC negative ground) • Current drain 100 mA Stand-by 150 mA (with UT-119H/UT-126H) (approx.) Max.audio...
  • Page 5 SECTION 2 INSIDE VIEWS • FRONT UNIT • RF UNIT (Top view) Mic selector APC amplifier Q506: UNR9113J (IC601: TA75S01F) Q516: UNR9213J AF power amplifier controller Q501: 2SB1132 Q502: XP6501 AF power amplifier (IC508: TDA8547TS) TX power detector (D604: RB706F-40) Speaker selector (Q512, Q513: UNR9213J) Expander IC...
  • Page 6 SECTION 3 DISASSEMBLY INSTRUCTION • REMOVING THE CHASSIS UNIT • REMOVING THE RF UNIT Unscrew 1 nut A, and remove 2 knobs B and C. Unsolder 3 points A. Unscrew 2 screws D. Unscrew 4 screws B and remove the RF unit from the chassis.

  • Page 7: Section 4 Optional Unit Installation

    SECTION 4 OPTIONAL UNIT INSTALLATION CAUTION! Optional unit installation should be done at authorized Icom servise center only. The waterproof capability of the transceiver cannot be guaranteed if you install an unit yourself, or have it done at a non-authorised dealer/service center.

  • Page 8: Receiver Circuits

    SECTION 5 CIRCUIT DESCRIPTION 5-1 RECEIVER CIRCUITS The converted 1st IF signal is passed through the 1st IF fi lter (in wide mode; FI1, in narrow mode; FI4) via the bandwidth 5-1-1 ANTENNA SWITCH (MAIN and RF UNITS) switch (D34), to remove adjacent signals. The filtered signal The received signals from the antenna connector are passed is applied to the 1st IF amplifi...

  • Page 9: Transmitter Circuits

    The TX/RX HPF filters out 250 Hz and lower audio signals, • CTCSS/DTCS and the de-emphasis circuit obtains –6 dB/oct of audio A portion of the demodulated AF signals are passed through characteristics. The expander expands the compressed audio the active LPF (Q28) to filters CTCSS/DTCS signal. The filtered signals and also noise reduction function is provided.

  • Page 10: Pll Circuits

    The output AF signals are then passed through the Digital/ A portion of the transmit signal is detected by the transmit power Analog switch (IC14, pins 12, 14) and applied to the AF mixer detector (D604, D605) to produce a DC voltage corresponding to (IC9, pin 6) where the MIC signals and Tone signals are mixed the transmit output power level.

  • Page 11: Power Supply Circuits

    A portion of the each VCO output is applied to the PLL IC (IC1, the reference frequency signal from the reference frequency pin 6) via the buffer amplifi ers (Q4, Q5) and the tunable BPF oscillator (X1), at the phase detector. (D30, D31, L40, C170−C174).

  • Page 12: Port Allocations

    5-5 PORT ALLOCATIONS EMER Input port for [Emer] switch (VR UNIT; S702). 5-5-1 CPU (MAIN UNIT; IC18) Port Description Name Port Description Name Outputs CPU clock frequency shift signal to the CPU CSFT clock oscillator (X2, D38). DSDA Outputs serial data to the D/A converter (IC20, pin 6). Outputs CTCSS/DTCS select signal to the CTCSS/ DUSE DAST...

  • Page 13: Section 6 Adjustment Procedures

    The “Choose Destination Location” will appear. Then click FREQUENCY ADJUSTMENT ITEM [Next>] to install the software to the destination folder. (e.g. C:\Program Files\Icom\CS-F3060 ADJ) TX power : Low1 154.900 MHz y After the installation is completed, the “InstallShield Wiz-...
  • Page 14 • CONNECT Standard signal generator Attenuator Osciiloscope 0.1 µV to 32 mV 20 dB or 30 dB deviation meter (–127 dBm to –17 dBm) RF power meter CAUTION! 0.1–10 W/50 Ω DO NOT transmit while the SSG is connected to Frequency the antenna connector counter...
  • Page 15 • ADJUSTMENT WINDOW Adjustment setting Transmit output power Modulation balance Modulation preset CTCSS/DTCS deviation Squelch Reference frequency Receive sensitivity RX Lock voltage (Low) RX Lock voltage (High) TX Lock voltage RX Lock voltage preset (Low) RX Lock voltage preset (High) TX Lock voltage preset S-meter FM deviation (Narrow)

  • Page 16: Frequency Adjustment

    6-2 FREQUENCY ADJUSTMENT Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard. MEASUREMENT ADJUSTMENT ADJUSTMENT CONDITION VALUE UNIT OPERATION PLL LOCK 1 • Channel : CH 1 Click [I/O Check] in the Clone 3.2 V...

  • Page 17: Transmit Adjustment

    6-3 TRANSMIT ADJUSTMENT Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard. MEASUREMENT ADJUSTMENT ADJUSTMENT CONDITION VALUE UNIT OPERATION OUTPUT 1 • Channel : CH 6 Connect an RF power meter to 5.0 W...
  • Page 18 6-3 TRANSMIT ADJUSTMENT (continued) Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard. MEASUREMENT ADJUSTMENT ADJUSTMENT CONDITION VALUE UNIT OPERATION ±0.68 to ±0.72 kHz 1 •...

  • Page 19: Receive Adjustment

    6-4 RECEIVE ADJUSTMENT Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard. MEASUREMENT ADJUSTMENT ADJUSTMENT CONDITION VALUE UNIT LOCATION RECEIVE NOTE: "RECEIVE SENSITIVITY" must be adjusted before "S-METER." Otherwise, "S-METER" will not be SENSITIVITY adjusted properly.

  • Page 20: Section 7 Parts List

    SECTION 7 PARTS LIST [FRONT UNIT] (for F3060 series) [FRONT UNIT] (for F3060 series) PARTS PARTS DESCRIPTION DESCRIPTION LOCATION LOCATION IC501 1180002401 S.REG S-812C30AMC-C2K-G 66.7/35.7 R561 7030005000 S.RES ERJ2GEJ 471 X (470) 82.7/22.7 IC505 1110006440 S.IC M62320FP DF5J 74/36.8 R562 7030005000 S.RES ERJ2GEJ 471 X (470) 83.4/20.3 IC506...
  • Page 21 [FRONT-A UNIT] (for F3160 series) [FRONT-A UNIT] (for F3160 series) PARTS PARTS DESCRIPTION DESCRIPTION LOCATION LOCATION IC501 1180002401 S.REG S-812C30AMC-C2K-G 66.7/35.7 C511 4030017460 S.CER ECJ0EB1E102K 75.7/18.4 IC505 1110007330 S.IC M62320FP-DF5G 74/36.8 C514 4550006250 S.TAN TEESVA 1A 106M8R 78.5/5.4 IC506 1110007330 S.IC M62320FP-DF5G 56.8/24.5 C515...
  • Page 22 [MAIN UNIT] (for F3060 series) [MAIN UNIT] (for F3060 series) PARTS PARTS DESCRIPTION DESCRIPTION LOCATION LOCATION 1130010100 S.IC LMX2352TMX/NOPB 58.2/18.3 1730002320 S.ZEN MA8051-M (TX) 14.2/25.1 1110003491 S.IC TA31136FNG (D,EL) 76.6/32.9 1790001260 S.DIO MA2S077-(TX) 12.8/32.6 1190001350 S.IC M62364FP 600D 42.1/18.1 1160000050 S.DIO DAP202U T106 19.1/37 1110006221 S.IC...
  • Page 23 [MAIN UNIT] (for F3060 series) [MAIN UNIT] (for F3060 series) PARTS PARTS DESCRIPTION DESCRIPTION LOCATION LOCATION 7030005090 S.RES ERJ2GEJ 104 X (100 k) 102.7/17.4 R178 7030005070 S.RES ERJ2GEJ 683 X (68 k) 38.7/30.5 7030005310 S.RES ERJ2GEJ 124 X (120 k) 103.9/15.7 R179 7030005070 S.RES ERJ2GEJ 683 X (68 k)
  • Page 24 [MAIN UNIT] (for F3060 series) [MAIN UNIT] (for F3060 series) PARTS PARTS DESCRIPTION DESCRIPTION LOCATION LOCATION R294 7030007280 S.RES ERJ2GEJ 331 X (330) 91.4/33 4030017420 S.CER ECJ0EC1H470J 81.7/20.5 R295 7030005710 S.RES ERJ2GEJ 121 X (120) 89.9/22.5 4030017460 S.CER ECJ0EB1E102K 83.7/15.6 R296 7030005090 S.RES ERJ2GEJ 104 X (100 k) 92.8/15.7...
  • Page 25 [MAIN UNIT] (for F3060 series) [MAIN UNIT] (for F3060 series) PARTS PARTS DESCRIPTION DESCRIPTION LOCATION LOCATION C224 4030017790 S.CER ECJ0EB1E682K 66/35.4 C329 4030017580 S.CER ECJ0EC1H060C 4.8/39 C225 4030016940 S.CER ECJ0EB1A393K 66.5/38.4 C330 4030017630 S.CER ECJ0EC1H120J 4.8/25.5 C226 4550006250 S.TAN TEESVA 1A 106M8R 41.2/39.1 C331 4030017640 S.CER ECJ0EC1H150J...
  • Page 26 [MAIN-A UNIT] (for F3160 series) [MAIN-A UNIT] (for F3160 series) PARTS PARTS DESCRIPTION DESCRIPTION LOCATION LOCATION 1130010100 S.IC LMX2352TMX/NOPB 58.2/18.3 2020002180 S.CER CFWKA450KHFA-R0 76.7/34.6 1110003491 S.IC TA31136FNG (D,EL) 76.6/32.9 2030000150 S.MLH FL-335 (46.350 MHz) 91.4/27.4 1190001350 S.IC M62364FP 600D 42.1/18.1 1110006221 S.IC AK2346P-E2/P 51.3/36.4...
  • Page 27 [MAIN-A UNIT] (for F3160 series) [MAIN-A UNIT] (for F3160 series) PARTS PARTS DESCRIPTION DESCRIPTION LOCATION LOCATION 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) 70.4/26.4 R201 7030005110 S.RES ERJ2GEJ 224 X (220 k) 62.5/11.4 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) 66/27.9 R202 7030005110 S.RES ERJ2GEJ 224 X (220 k)
  • Page 28 [MAIN-A UNIT] (for F3160 series) [MAIN-A UNIT] (for F3160 series) PARTS PARTS DESCRIPTION DESCRIPTION LOCATION LOCATION R330 7030007340 S.RES ERJ2GEJ 153 X (15 k) 55.6/34.9 4030017400 S.CER ECJ0EC1H220J 74.2/23.1 R331 7030007340 S.RES ERJ2GEJ 153 X (15 k) 47.2/16 4030017440 S.CER ECJ0EC1H221J 70.4/25.1 R333 7030005090 S.RES ERJ2GEJ 104 X (100 k)
  • Page 29 [MAIN-A UNIT] (for F3160 series) [MAIN-A UNIT] (for F3160 series) PARTS PARTS DESCRIPTION DESCRIPTION LOCATION LOCATION C216 4030017740 S.CER ECJ0EB1E821K 75.9/36.6 C324 4030016930 S.CER ECJ0EB1A104K 9.4/23.4 C217 4030017730 S.CER ECJ0EB1E471K 74.1/36.6 C325 4030016930 S.CER ECJ0EB1A104K 13/27.6 C217 4030017740 S.CER ECJ0EB1E821K 74.1/36.6 C326 4030017030 S.CER ECJ0EB1A273K...
  • Page 30 [MAIN-A UNIT] (for F3160 series) [RF UNIT] PARTS PARTS DESCRIPTION DESCRIPTION LOCATION LOCATION 6910015370 S.BEA ACZ1005Y-102-T 53.5/22.5 IC601 1110002750 S.IC TA75S01F (TE85R) 6910015370 S.BEA ACZ1005Y-102-T 45.5/36.8 Except [FRG-01] 24.4/23.1 6910015600 S.BEA ACZ1005Y-241 (240) 56.4/39.6 1110002751 S.IC TA75S01F (TE85R,F) [FRG-01] 24.4/23.1 6910015370 S.BEA ACZ1005Y-102-T 62.6/21.7...
  • Page 31 [RF UNIT] [JACK UNIT] PARTS PARTS DESCRIPTION DESCRIPTION LOCATION LOCATION C606 4030007060 S.CER C1608 CH 1H 270J-T 28.1/11.7 D801 1790001810 S.VSR AVR-M1005C080MTABB 13.7/1.7 C608 4030009540 S.CER C1608 CH 1H 1R5B-T 27.7/17.8 D802 1790001810 S.VSR AVR-M1005C080MTABB 14.7/3.8 C609 4030007020 S.CER C1608 CH 1H 120J-T 25.5/11.7 D803 1790001810 S.VSR AVR-M1005C080MTABB...
  • Page 32 • BC-160 (Optional) [MAIN UNIT] [MAIN UNIT] ORDER DESCRIPTION LOCATION ORDER DESCRIPTION LOCATION 4030006900 S.CER C1608 JB 1H 103K-T 32.9/69.7 4030006900 S.CER C1608 JB 1H 103K-T 32.9/71.1 1110006480 S.IC NJM2801U1-0543-TE1 10.2/62.3 4510008540 S.ELE EEE1CA100SR 17.5/63.8 1110003071 S.IC uPC494GS-E1-A 13/36.7 4030011600 S.CER C1608 JB 1E 104K-T 13.4/60.8 1140012301 S.IC uPD789112AMC-534-5A4-A...

  • Page 33: Mechanical Parts

    SECTION 8 MECHANICAL PARTS [FRONT-A UNIT] (for F3160 series) [CHASSIS PARTS] REF. PARTS REF. PARTS DESCRIPTION QTY. DESCRIPTION QTY. J501* 6510025240 IMSA-9631S-20A-TB 6910015910 ANT CONNECTOR 104 J502* 6510025250 IMSA-9631S-08A-TB 6910015860 IMSA-6277S-O2A-G J503* 6510025260 IMSA-9631S-10A-TB 2510001360 K036NAX040A00-55 DS510 5030002830 M4-0078TAY-2 8900014981 OPC-1589-1 MC501 7700002760...
  • Page 34 [RF UNIT] REF. PARTS DESCRIPTION QTY. J601 6910017940 IMSA-9230B-1-05Z118-PT1 J602 6910017940 IMSA-9230B-1-05Z118-PT1 F601* 5210000970 ERBSE3R00U MP601* 8510017600 OG-363050 [VR UNIT] REF. PARTS DESCRIPTION QTY. J701* 6510024930 20RF-JMCS-G-1B-TF (N) S701 2250000490 TP70TF5163 15.9F-2775 S702* 2230001060 EVQ-PUL 02K [ACCESSORIES] REF. PARTS DESCRIPTION QTY.
  • Page 35 W1 (C) MP33 (C) MP10 (C) MP8 (C) MP802 (J) SP1( C) MP501 (F) MC501 (F) MP22 (C) MP33 (C) MP32 (C) MP31 (C) MP502 (F) MP27 (C) MP26 (C) J A CK UNI T MP33 (C) MP506 (F) MP7 (C) F R ONT UNI T MP502 (F) DS510 (F)
  • Page 36 SECTION 9 BOARD LAYOUTS • For F3060 series from battery RXRF to VR unit J701 • MAIN UNIT (TOP VIEW) • RF UNIT (TOP VIEW) • FRONT UNIT (TOP VIEW) ISENS from RF from RF unit J602 unit J601 C630 TXRF TMUT IC601...
  • Page 37 • VR-A UNIT (BOTTOM VIEW) ([FRG-01] only) ROTARY SELECTOR to MAIN unit J4 J701 J701 R704 • BC-160 (BOTTOM VIEW) B6418G CHARGE J501 J502 VSENS to MAIN unit J3 to LCD S-14223HH-P2-e Printed in Japan © 2006–2008 Icom Inc. 9 - 2...
  • Page 38 • For F3160 series from battery RXRF to VR unit J701 • MAIN UNIT (TOP VIEW) • RF UNIT (TOP VIEW) • FRONT UNIT (TOP VIEW) ISENS from RF from RF unit J602 unit J601 C630 TXRF TMUT IC601 C649 F601 J601 D607...
  • Page 39 MAIN unit J4 J701 J701 S701 R704 IC19 • BC-160 (BOTTOM VIEW) -AFOUT B6947A -BUSY -RMUT -MMUT CHARGE J501 J502 -VCC VSENS IC10 to MAIN unit J3 to LCD S-14223HH-P2-e Printed in Japan © 2006–2008 Icom Inc. 9 - 4...
  • Page 40 SECTION 10 BLOCK DIAGRAM Q17 2SC4116 D13 MA2S111 RX VCO1 Q1 : 2SC422 RF UNIT ISENS ANTENNA RIPPLE D1/D2 : HVC376B D604/D605 136-174MHz Q604 XP6401 RB706F Q605 2SC4081 2SK880 ISENS M62364FP LVIN D3/D4 1SV284 BUFF CPU5 RX VCO2 IC21 Q2 : 2SC4226 D14 1SV308 Q603 Q602...
  • Page 41 SECTION 11 VOLTAGE DIAGRAM • FRONT UNIT (for F3060 series) D503 R518 R517 D502 MA2S728 MA2S728 EPTT I MSA-9631S-08A-TB J501 J502 PTTI I MSA-9631S-20A-TB MDET Q514 UNR9113J FSCL R534 FSDA FSCL PTTSW FSDA • JACK UNIT UMG2N PTTI I C505 LRES R533 CL I...
  • Page 42 • FRONT-A UNIT (for F3160 series) J502 J501 I MSA-9631S-08A-TB I MSA-9631S-20A-TB MDET 100K R572 FSCL R534 MA8110 FSDA FSCL I EPTT D509 FSDA PTTI I C505 LRES • JACK UNIT R533 CL I FSCL AFONO FSDA LRES AFON EPTT CP508 EPTT LIGH...
  • Page 43 • MAIN UNIT (for F3060 series) 2SC4116 MEASUREMENT CONDITION • Freq. : 155 MHz 3.9k 1.8K R203 TEMP • TX PWR: 5.0 W 2SC4226 • RX (SG level): +60 dBu 3.3U 270K 2SK880 IC21 VCON 0. 1 R204 220K 2SB1132 TPC6103 3.3U 3.9k...
  • Page 44 • MAIN-A UNIT (for F3160 series) 2SC4116 TPC6103 3.9k 1.8K IC21 R203 TEMP NJM2904V 2SC4226 150K 3.3U 2SK880 R391 VCON R204 UNR9213 J IC21 2SB1132 NJM2904V 220K 15.3MHZ TPC6103 3.3U 3.9k 1.8K CTRL 2SC4226 1.5K 90.0N VOUT 1.8U NJM2870 1SV308 ACZ1005Y XP6501 2SC4226...
  • Page 45 • RF UNIT R623 R624 0.15 Q604 XP6401 Q605 2SC4081 C623 D601 L608 L607 C620 L606 C615 C610 L603 L602 L601 8.6N 5.8N 0.001 27.2N 0.001 0.001 45.5N 45.3N 27.2N 1SV307 C638 C608 C605 C602 100P Q601 C646 RD07MVS2 1.5P Q602 100P C651...
  • Page 46 SECTION 12. BC-160 (Optional) RSQ035P03TR 100μ CHARGE [CHASSIS PARTS] 2SC4081 1SS355 REF. ORDER DESCRIPTION QTY. 2SC4081 VSENS 8010019750 2830 case battery 5.00V 4.7k 9.6uS 10.05V MCR10-JPW 8110008220 2830 cover 16.0V NJM2801U1-0543-TE1 8930039620 Leg cushion (A) MCR10-JPW 8.4V Screw PH BT M3 × 6 NI-ZU SM240A-T 8810008630 0.12...
  • Page 47 Highway 17 Delta, B.C., V4K 5B8, Canada : http://www.icomspain.com Phone : +1 (604) 952-4266 Fax : +1 (604) 952-0090 E-mail : icom@icomspain.com : http://www.icomcanada.com E-mail : info@icomcanada.com Blacksole House, The Boulevard, Altira Business Park, Herne Bay, CT6 6GZ, UK Phone : +44 (01227) 741741...
  • Page 48 S-14223HZ-C1-w 1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan © 2006–2008 Icom Inc.
