I Optional UT-105 installation

The Optional UT-105 provides SmarTrunk II™ functions. In-
stall the unit as follows:
➀
Turn power off, then disconnect the DC power cable.
➁
Unscrew the 4 screws, then remove the bottom cover.

CONNECTION AND INSTALLATION

➂

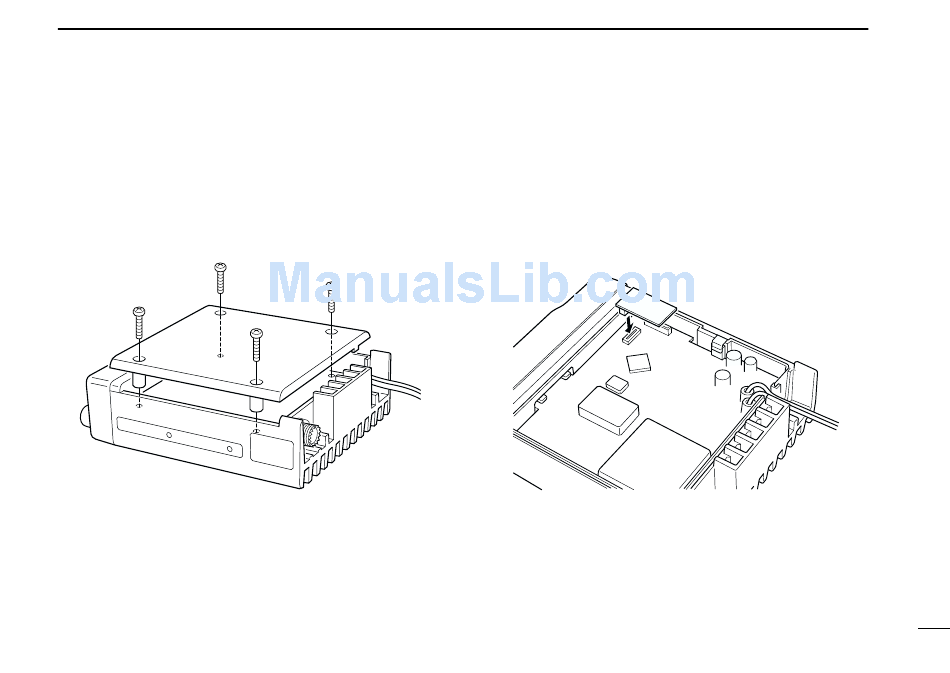

Install the unit as shown in the diagram below.
➃
Replace the bottom cover and screws, then the DC power
cable.
