I Mounting

Flat washer
Spring washer
When using
self-tapping screws
The universal mounting bracket supplied with your transceiver
allows overhead or dashboard mounting. Please read the fol-
lowing instructions carefully.
• Mount the transceiver securely with the 4 supplied
screws (M5 × 20) to a surface which is more than 10
mm thick and can support more than 5 kg.
• Mount the transceiver so that the face of the transceiver
is at 90 ˚ to your line of sight when operating.
13

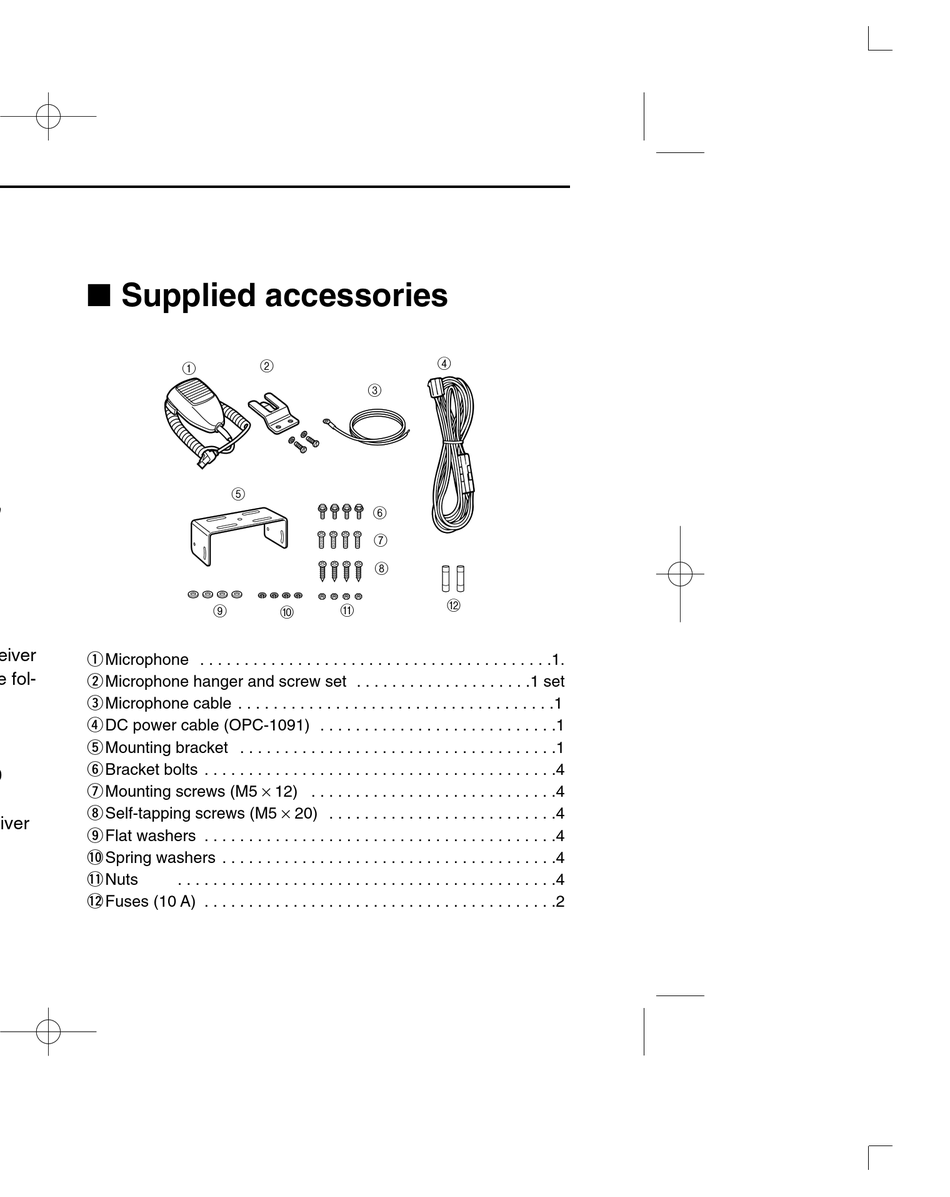

I Supplied accessories

2
1
5
9 0
q Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
w Microphone hanger and screw set . . . . . . . . . . . . . . . . . . . .1 set
e Microphone cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
r DC power cable (OPC-1091) . . . . . . . . . . . . . . . . . . . . . . . . . . .1
t Mounting bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
y Bracket bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
u Mounting screws (M5 × 12) . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
i Self-tapping screws (M5 × 20) . . . . . . . . . . . . . . . . . . . . . . . . . .4
o Flat washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
!0 Spring washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
!1 Nuts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
!2 Fuses (10 A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
