Sliding The Board In The Slot; Attaching The Controller Board - Compuprint L03 User Manual

4. Align the left and right sides of the Controller Board with the guides in the
printer and slide it into the slot.

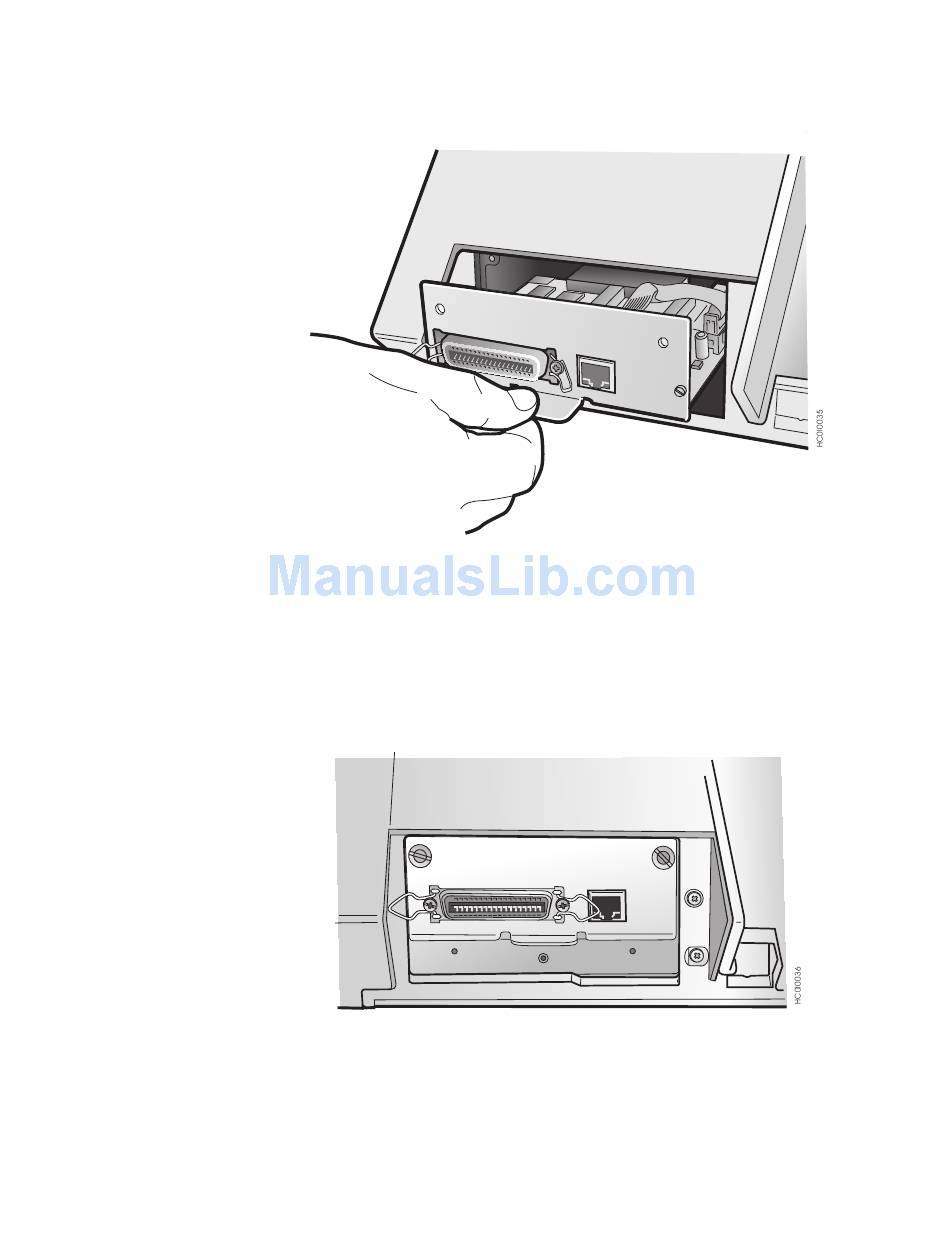

Figure 12. Sliding the board in the slot.
5. Gently push the Controller Board into the printer until it is seated in the
connector inside the printer. The Controller Board is correctly seated in the
printer when the Controller Board metal plate is aligned with the back profile
of the slot.
6. Attach the Controller Board with the two screws using the screwdriver that
came in the Controller Board box.
Figure 13. Attaching the Controller Board.
