Appendix A. Options

The Front2 Push Tractor

This tractor allows the handling of a second fanfold paper.

Installing the Front2 Push Tractor

This second push tractor can be installed in front position on the Front1 Push
tractor. Make sure that the Front2 push tractor is of the same type of the Front1
push tractor.

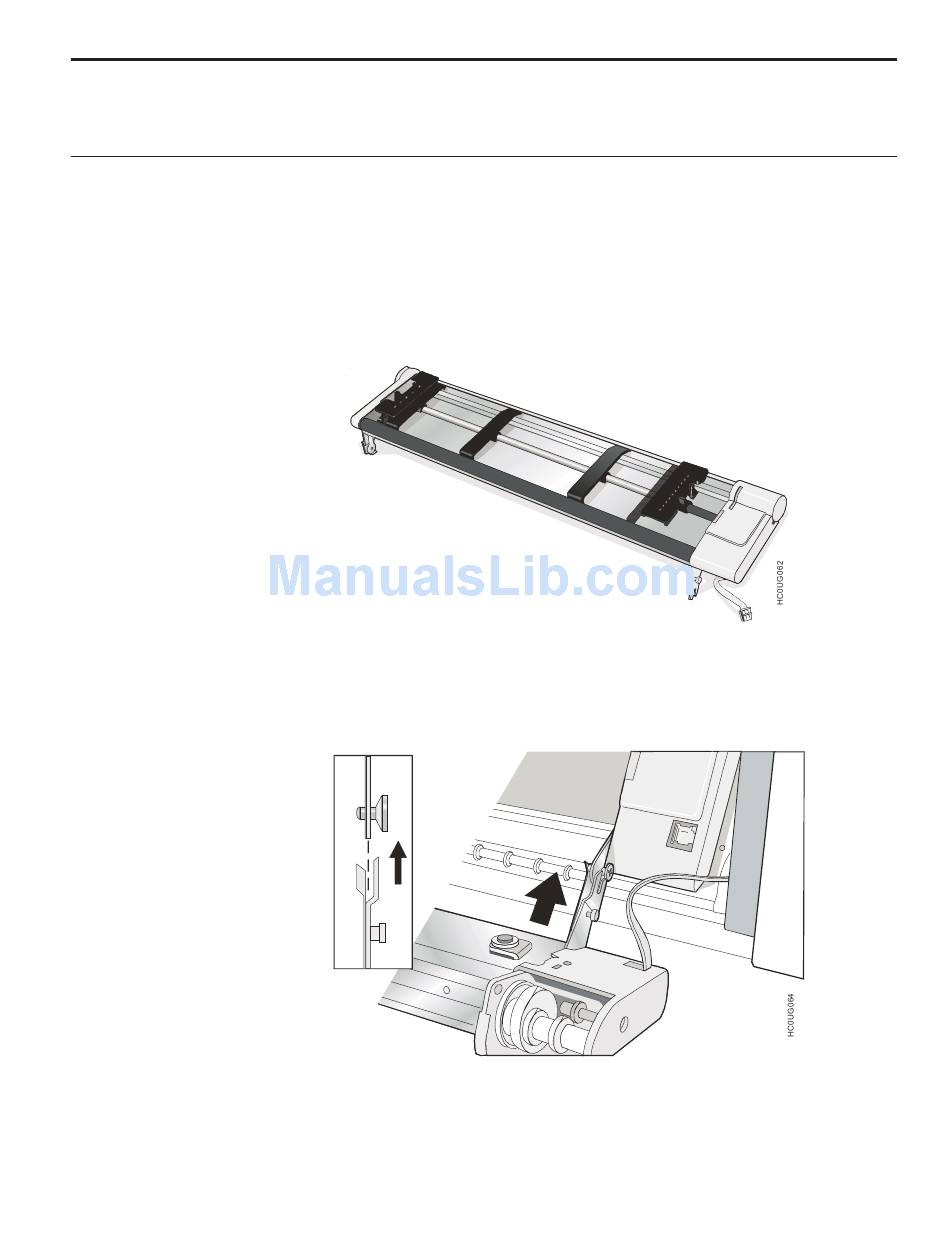

Figure 49. 4 pin Front2 Push Tractor option
1. Align the hooks on both sides of the Front2 push tractor with the pins on the
Figure 50. Aligning the hooks
Front1 push tractor.
109
