3. Unlock the left tractor by moving the sprocket lever down.

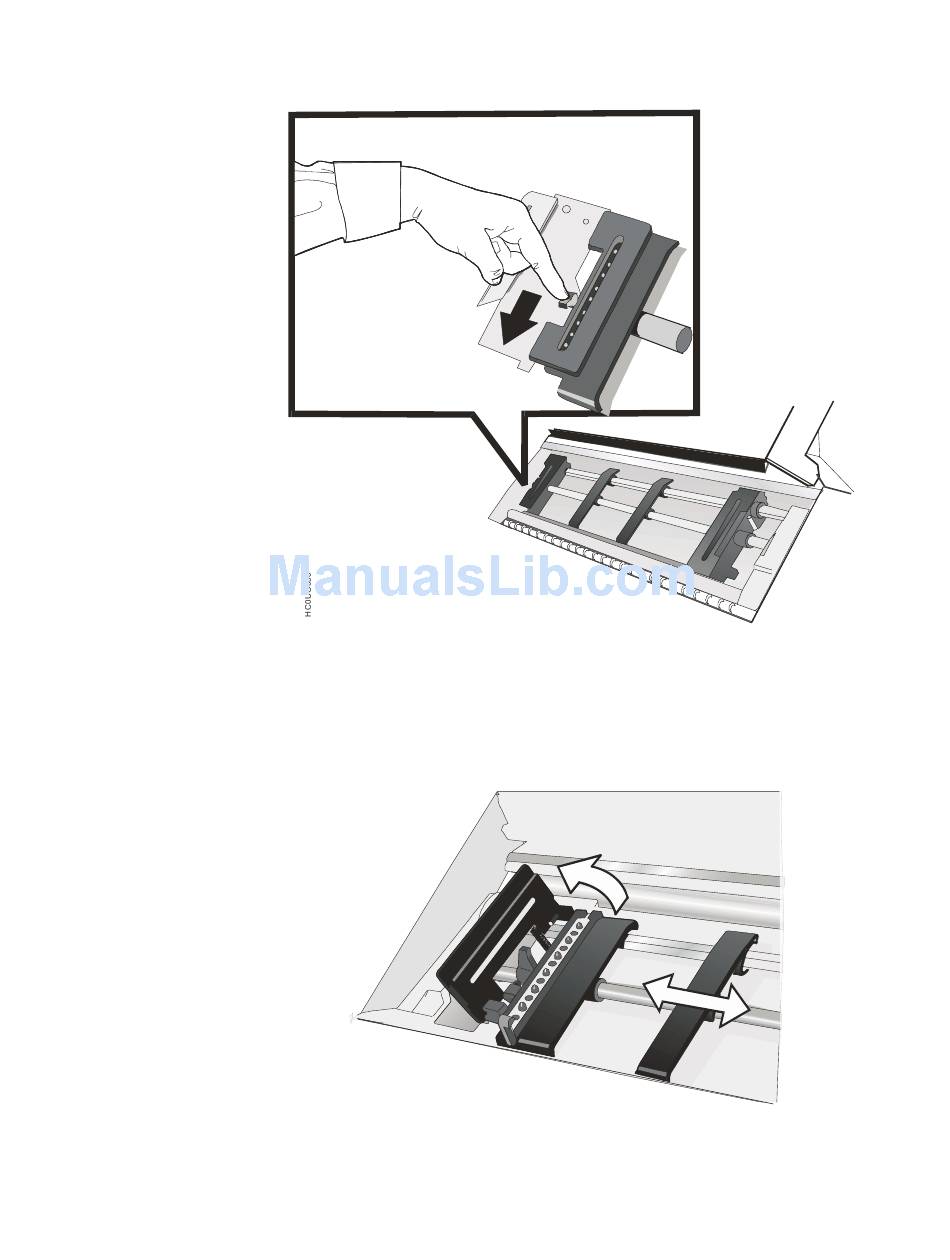

Figure 56. Moving the sprocket lever down.
4. Space the paper guides along the tractor bar. Open the sprocket covers of the
left and right sprocket.
HC0UG071
Figure 57. Opening the sprocket covers
5. Hold the fanfold paper in front of the sprockets and insert the paper
perforation on the left sprocket pins and close the sprocket cover.
113
Appendix A. Options
