Turn The Ribbon-Winding Knob In The Arrow Direction; Correct Ribbon Placement Between The Print Head And The Ribbon Guide Mask; Clipping The Cartridge Into Place - Compuprint L03 User Manual

5. Slide and insert the ribbon guide between the print head and the ribbon guide
mask holding it perpendicular to the print head.
Make sure that the ribbon is inserted correctly between the print head and the Ribbon

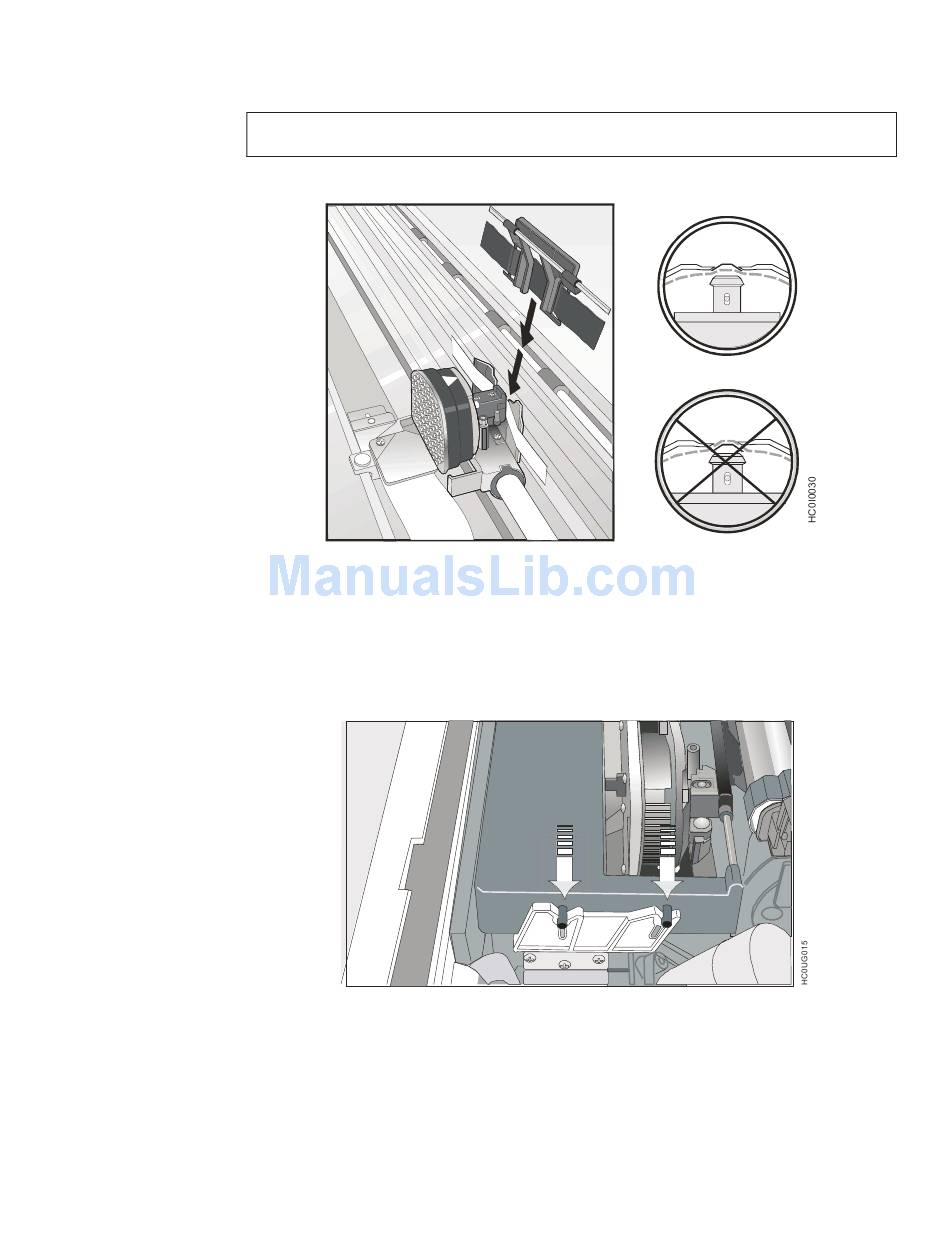

Figure 9. Correct ribbon placement between the print head and the Ribbon Guide mask.
6. Turn the ribbon-winding knob in the arrow direction (located on the cartridge)
to take up slack in the ribbon.
7. Push the cartridge down gently until it clips into place at locking points.
Figure 10. Clipping the cartridge into place.
8. Turn the ribbon-winding knob again in the direction of the arrow to take up
slack in the ribbon.
9. To ensure that the ribbon guide runs freely along the ribbon, manually move
the print head horizontally.
10. Close the cover and turn on the printer.
