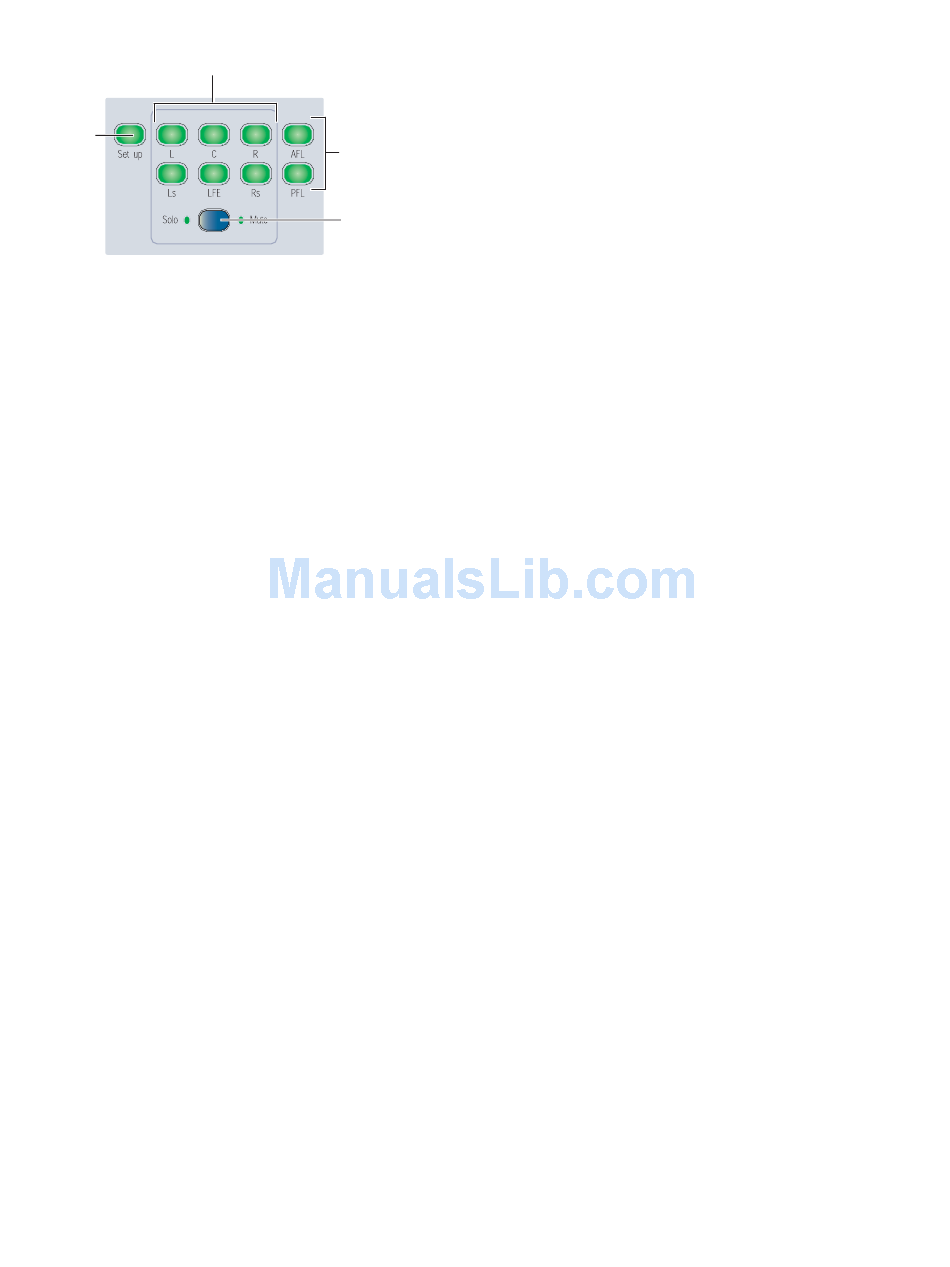

Output Channel Select Controls
Channel Select switches
Set Up switch
Output Channel Select controls
Set Up Switch
The Set Up switch resets output trim levels to their default val-
ues.
Channel Select Switches
The Channel Select switches let you solo or mute individual
channels of the Control Room outputs. The function of the
Channel Select switches depends on the mode of the
Solo/Mute switch.
• When the mode is set to Solo, each Channel Select switch
solos the corresponding output channel.
• When the mode is set to Mute, each Channel Select switch
mutes the corresponding output channel.
In both modes, the Channel Select switches follow latched be-
havior, allowing multiple outputs to be soloed or muted. The
Channel Select switches light to indicate that they are active.
There are Channel Select switches for the following channels:
• L (Left)
• C (Center)
• R (Right)
• Ls (Left Surround)
• Rs (Right Surround)
• LFE
These choices support all possible channel configurations in
Pro Tools. A maximum of six channels (5.1 surround) may be
in use at any time.
82 D-Command Guide
Individual Output Trim Mode
Each output channel can be trimmed individually for each of
the three control room outputs (Main, Alt, and Mini), allow-
ing you adjust the channel balance for each set of control
room speakers. Trim values are stored for each of the three
outputs. Available trim values range from –30 dB to +10 dB, in
AFL and PFL
0.5 dB steps.
switches
To trim the output level for an individual output channel:
Solo/Mute switch
and indicators
Activate the control room output (Main, Alt, or Mini) whose
1
channel levels you want to trim.
Press and hold the Channel Select switch for the output
2
channel you want to trim, until the switch flashes.
Turn the Output Level encoder to set the trim value for the
3
channel. The monitor display shows "Trim" and the trim
value in dB.
Press the flashing Channel Select switch to exit Trim mode.
4
Repeat the above steps for each output channel and each set
5
of outputs (Main, Alt, or Mini) you want to trim.
Solo/Mute Switch and Indicators
The Solo/Mute switch toggles the function of the Channel Se-
lect switches between Solo and Mute modes. The indicators
light to indicate which mode is active.
