High-Mid Filter and EQ Level Controls
High-Mid Filter
indicator
Filter In switch

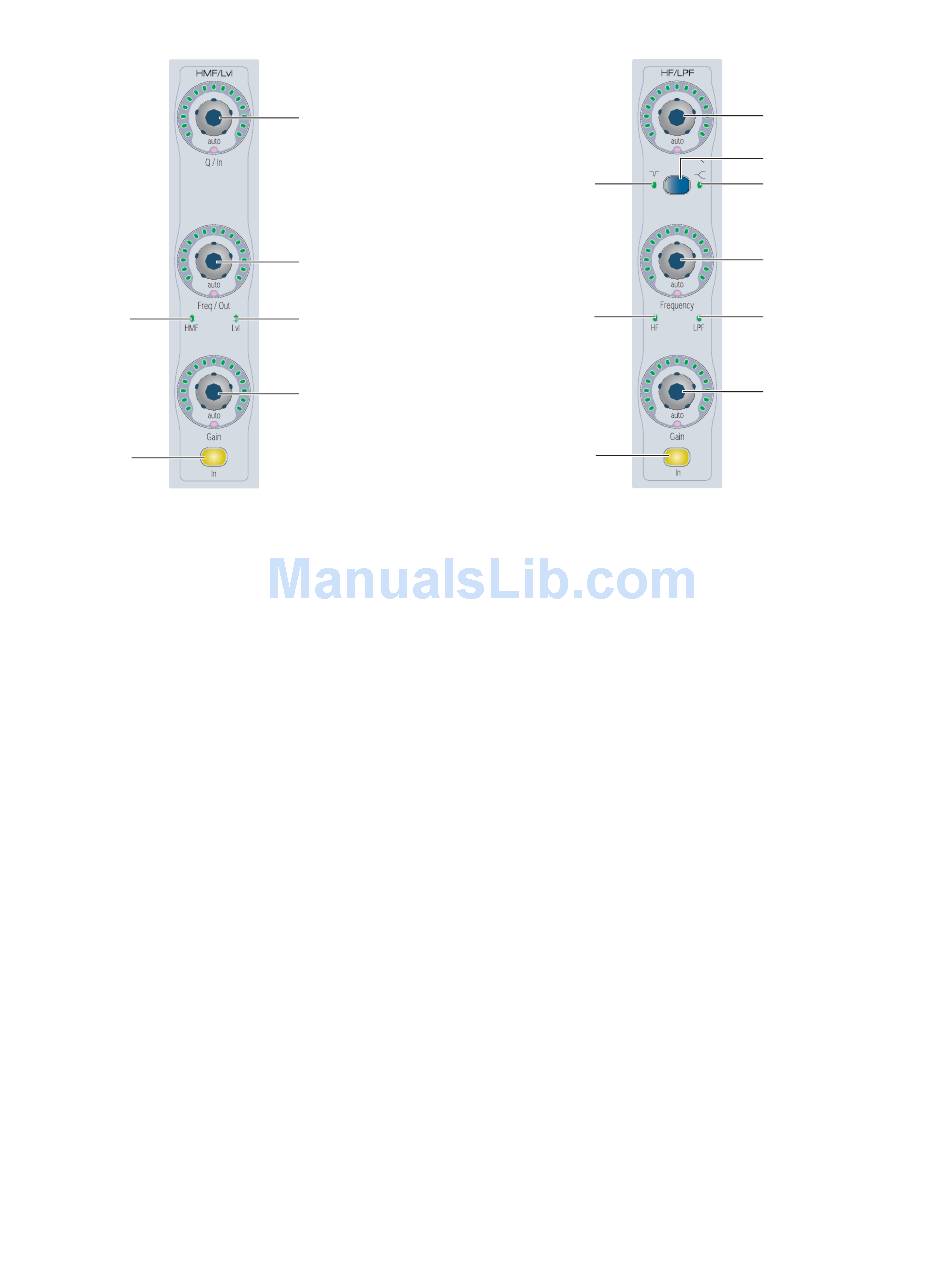

High-Mid Filter and EQ level controls in the EQ section
Q/Input level Encoder
The top encoder controls the Q of the High-Mid filter, or the
Input level. The Auto indicator under the encoder knob lights
when the parameter is enabled for automation.
Frequency/Output Level Encoder
The middle encoder controls the center frequency for the cur-
rently selected band, or the Output level. The Auto indicator
under the encoder knob lights when the parameter is enabled
for automation.
Gain Encoder
The bottom encoder controls the gain for the High-Mid band.
The Auto indicator under the encoder knob lights when the
parameter is enabled for automation.
Filter In Switch
The Filter In switch lets you engage or bypass the correspond-
ing EQ band in the plug-in.
58 D-Command Guide
High Filter and Low-Pass Filter Controls
Q/Input level encoder
Frequency/Output level
encoder
Level
indicator
Gain
encoder
Low Filter and High Filter controls in the EQ section
Q Encoders
The top encoder controls the Q of the selected band. The Auto
indicator under each encoder knob lights when the parameter
is enabled for automation.
Notch/Shape Switches and Indicator
The Notch/Shape switch let you switch between the two filter
types when they are available. The indicators on either side of
the switch light to show which type of filter is active.
Frequency Encoder
The middle encoder controls the filter frequency for the cur-
rently selected band. When the filter is a notch filter, the en-
coder controls the center frequency. When the selected filter
is a low-pass filter, the encoder controls the cutoff frequency.
The Auto indicator under the encoder knob lights when the
parameter is enabled for automation.
Gain Encoder
The bottom encoder controls the gain for each band. The
Auto indicator under the encoder knob lights when the pa-
rameter is enabled for automation.
Filter In Switch
The Filter In switch lets you engage or bypass the correspond-
ing EQ band in the plug-in.
Notch indicator
High Filter
indicator
Filter In switch
Q encoder
Notch/Shape switch
Shelf indicator
Frequency encoder
Low-Pass Filter
indicator
Gain
encoder
