D-Command XMON Interface

D-Command monitoring is based on the XMON analog interface, which is remotely controlled from the D-Command
monitoring section.
XMON Front Panel
XMON XMON
Power
switch

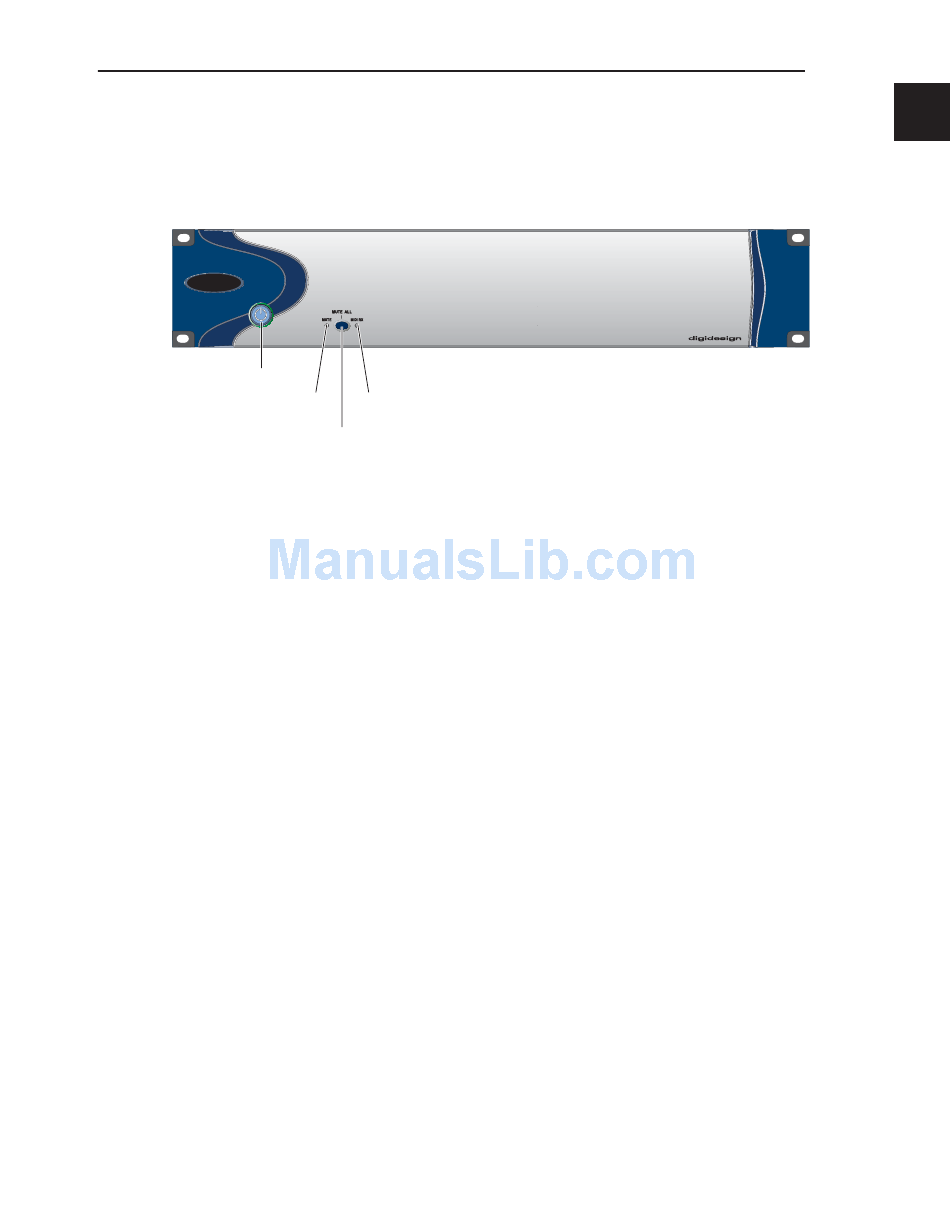

Figure 4. XMON front panel
Power Switch
The Power switch applies power to the XMON Interface.
Mute Indicator
The Mute indicator shows the mute status of XMON.
Mute MIDI Receive
indicator indicator
Mute button
MIDI Receive Indicator
The MIDI Receive indicator shows MIDI activity between
XMON and D-Command.
Mute Button
The Mute button mutes all XMON outputs. It is not possible
to unmute XMON with this button. The XMON mute state
can only be cleared from the D-Command Monitor section
(see "Monitor Section Controls" on page 79).
Chapter 2: D-Command Overview 9
