Chapter 3: Setting Up the Fader Module
This chapter explains how to add the Fader Module to the
D-Command Main Unit.
Placement of D-Command Fader Module
When placing the D-Command Fader Module in studio furni-
ture or on a table top, make sure to account for the dimen-
sions of the assembled system, allowing for at least 1 inch
(2.5 cm) of open space behind the finished unit. This meets
the ventilation requirements for the D-Command units.
When bracketing together your system, you will need addi-
tional clearance on either side of the unit to push the Fader
Module and the Main Unit together, as well as sufficient clear-
ance in front and behind the units to allow you to attach the
brackets. You will also need access to the rear of the unit to
make cable connections.
The Fader Module is designed to be attached to the left of the
D-Command Main Unit.

Assembling an Expanded System

The D-Command Main Unit can be attached to the D-Com-
mand Fader Module, using the front, middle, and rear brack-
ets included with the D-Command Fader Module.
Front bracket Center bracket

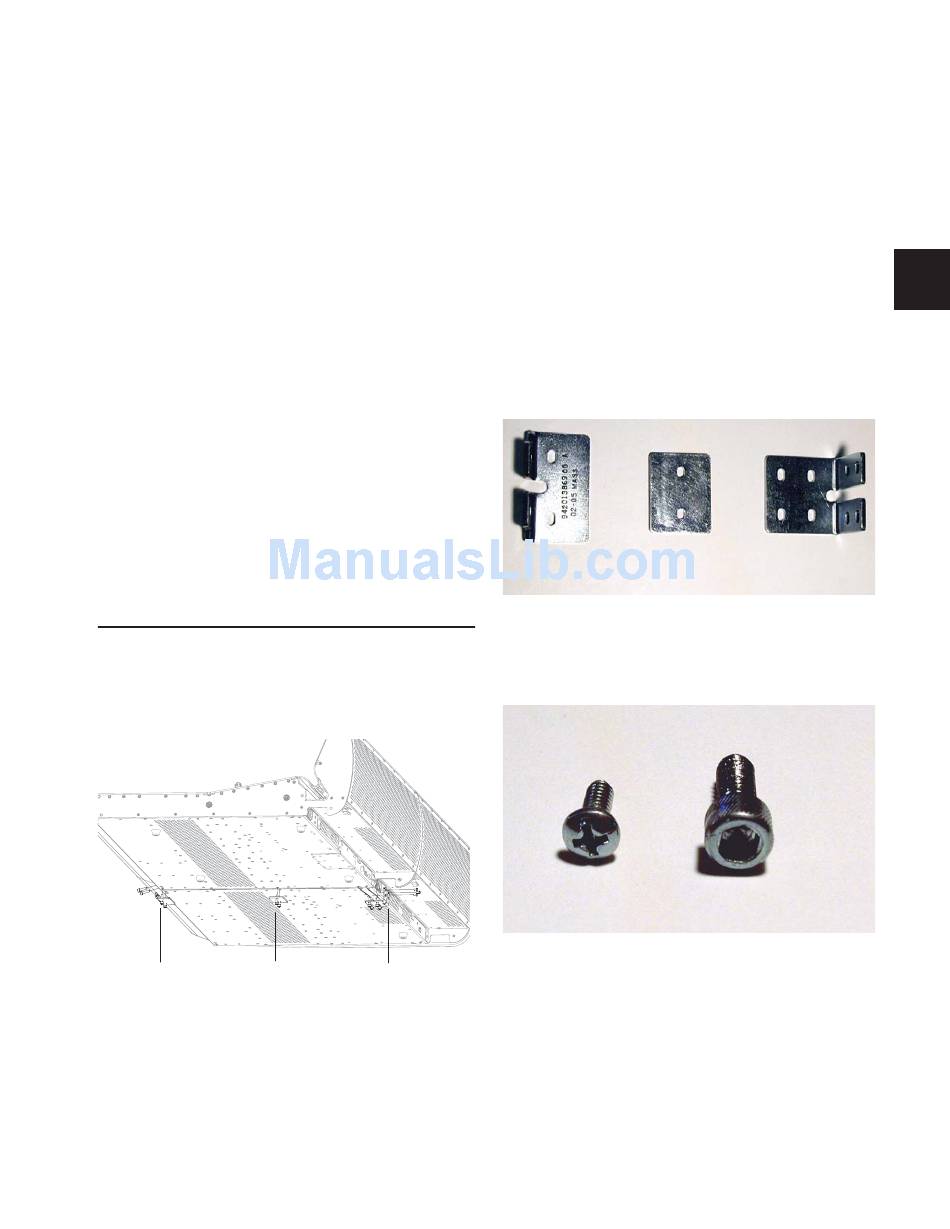

Figure 1. D-Command with Fade Module (bottom view)
Assembly Hardware
The following hardware is provided with the D-Command
Fader Module (spare pieces may be included).
Brackets
• Front Bracket
• Center Bracket
• Rear Bracket
Front bracket
Figure 2. D-Command expanded system connecting brackets
Screws
• (10) 10-32 x 3/4-inch
• (4) 6-32 x 3/8-inch
Philips pan head screw
Figure 3. Screws for D-Command connecting brackets
Rear bracket
Center bracket
socket cap screw
Philips pan head screw
6-32 x 3/8-inch 10-32 x 3/4-inch
socket cap screw
Chapter 3: Setting Up the Fader Module 13
Rear bracket
