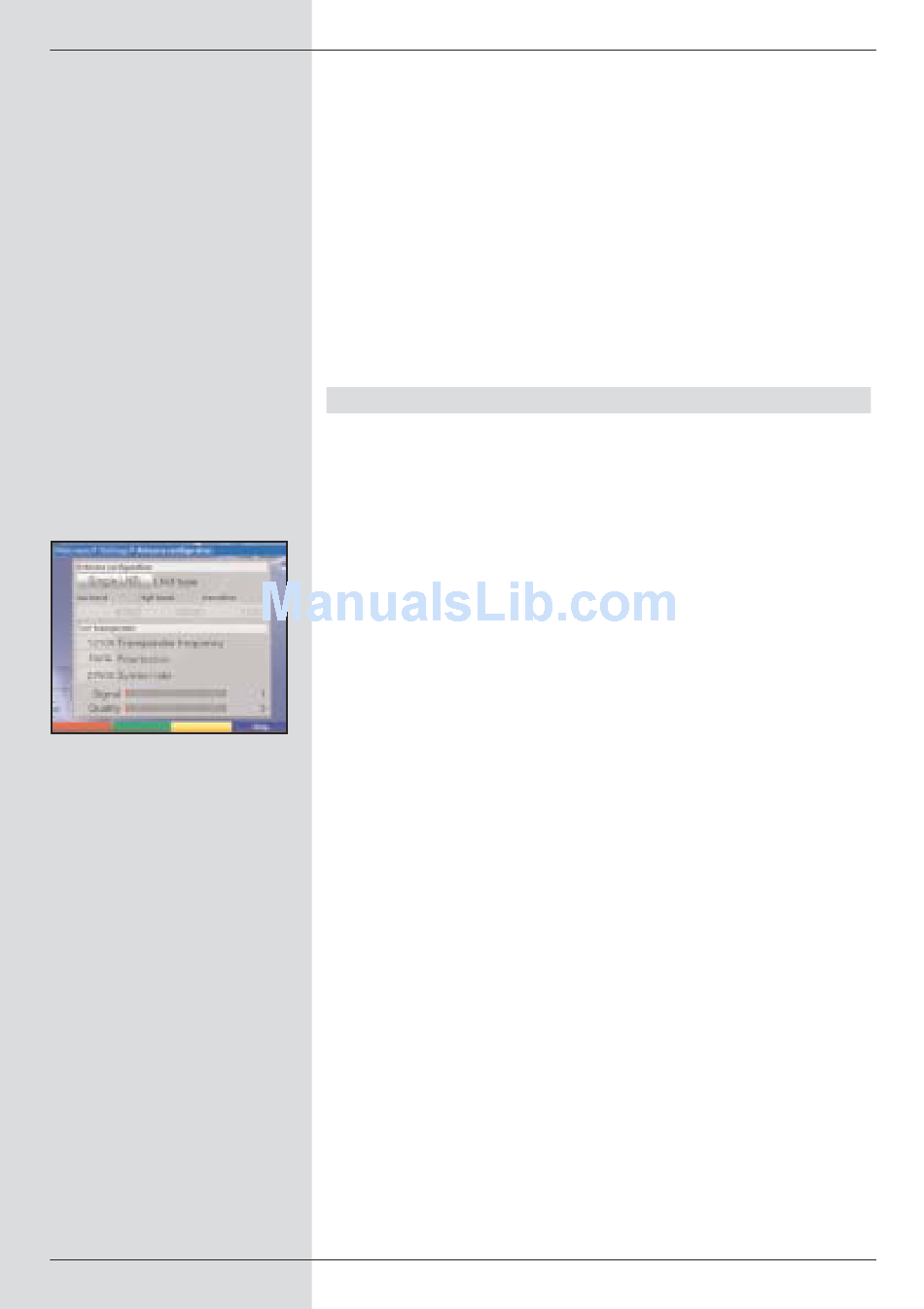

(Fig. 6-9)
down the list one line at a time, use the arrow keys
left/right to move back or forward one page at a time.
If the satellite you are looking for is not included in the list,
please select a reserve position, designated User 1 to
User 14.
> Confirm by pressing OK. The selected satellite will now be
added to the menu Antenna Settings at the previously
marked position.
Now proceed to enter the data in the menu Antenna Settings,
until the data in this menu corresponds with that of your antenna
installation. For any switching criteria not required select the setting
No Satellite.
6.4.3 Additional LNC settings/LNC properties
When you have completed setting the switching matrix of your DVB
receiver in accordance with your antenna installation, you should
check the remaining settings for the reception installation, and adjust
the settings where necessary.
> Use the arrow keys left/right to move the marker to the
column Configuration.
> In the line on which you wish to check or adjust the settings,
use the arrow keys up/down to mark the field
Continue.
> Confirm by pressing OK.
A sub-menu will be displayed, allowing you to adjust LNC
settings or to set up a test transponder. (Fig. 6-9)
The following settings can be made:
LNC Type
> In this line, use the arrow keys left/right to enter the
type of LNC you are using. The options available are Single
LNC, Quatro LNC, DisiCon 1 LNC, DisiCon 2 LNC,
DisiCon 4 LNC, C-Band LNC and a User LNC for
manual entry of LNC data.
> Press OK to accept the setting.
Test transponder
The following items of this menu should only b e entered if you wish
to check the signal of a satellite.
Transponder frequency
In this line, use the numeric keys to enter a frequency on which
digital programmes are broadcast.
Polarisation
Use the arrow keys up/down to enter the desired polarisation
plane (horizontal or vertical).
