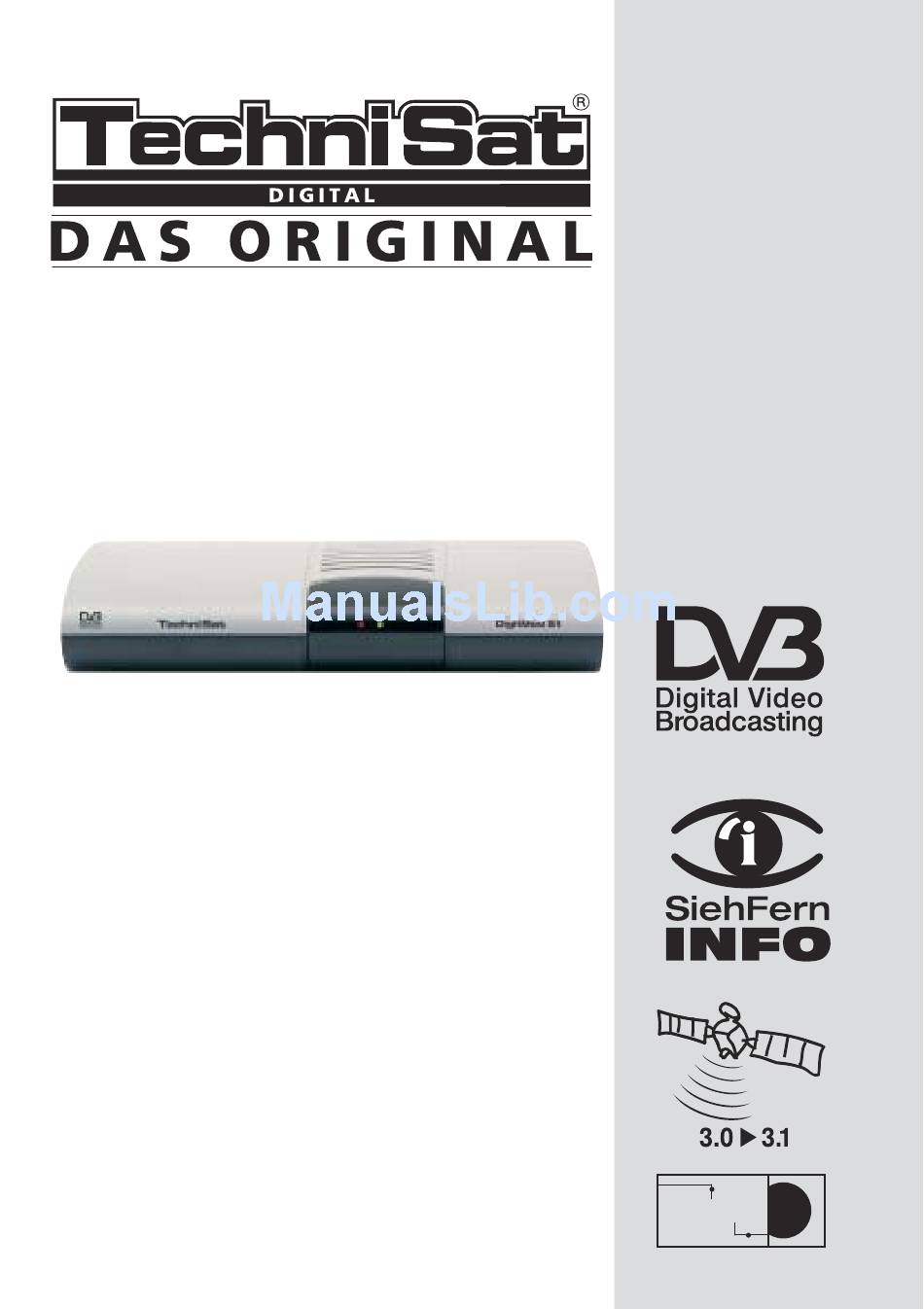

- Page 1 DigitMod S1 Operating Manual D D i i S S E E q q C C With motor-driven antenna facility and software update via satellite.
-
Page 2: Table Of Contents
1 Contents Contents .....2 Illustrations ....3 Please read this first . - Page 3 7.14.1 Downloading SFI data ....25 7.14.2 Interrupting download procedure ..26 7.14.3 Display electronic Programme Guide ..26 7.14.4 Now .
- Page 4 For daily use ....70 Your unit carries the CE logo, and complies with all relevant EU standards. Subject to change without notice, subject to printing errors.Correct as at 10/04 TechniSat and DIGITMod S1 are registered trademarks of TechniSat Digital GmbH Postfach 560 D-54541 Daun, Germany www.technisat.de...
-
Page 5: Illustrations
2 Illustrations Remote control On/Stand-by Sound On/Off Numeric keys Multi-function keys Arrow key up Programme list On/Off Programme + Arrow key left Arrow key right Volume + Volume - Arrow key down Back Programme - Info TV/Radio Volume +/- Help Menu On/Off Video text* On/Mix/Off... - Page 6 LED display Off/Stand-by SCART socket Power supply input input 12V...
- Page 7 Dear customer, congratulations on your decision to purchase the TechniSat DIGITMod S1 digital receiver. The operating manual you are reading is designed to help you gain optimum use and enjoyment from the comprehensive functions of your new digital receiver. We have designed the operating manual to be as comprehen- sive as necessary, and as simple as possible.
-
Page 8: Please Read This First
3 Please read this first > Before you begin operating your receiver, please first check whether the package contains all the compo- nents that should be included. The following are supp- lied: 1 digital receiver, 1 mains power cable, 1 remote control, 1 operating manual, 1 guarantee card, 2 batteries (1,5V micro-cell) 1 SCART cablel. -
Page 9: Safety Advice
cription is displayed in the appropriate field. Key descriptions and terms that appear on the OSD menu are printed bold in this operating manual. Help: Where available in the menues, pressing the blue function key will cause a help text to be displayed, pressing again will remove the text from the screen. - Page 10 Connecting the DVB receiver to a satellite installation a. Connect the LNC with the LNC input (LNC IN) of the DVB receiver. b. Establish a Scart connection between the DVB receiver and the television set. c. Mains power connection...
-
Page 11: Connections
4 Connections The references mentioned below, i.e. a b c etc. refer to the illustration on page 10. 4.1 External installation Use a suitable co-axial cable to connect the LNC input of the digital receiver with the LNC of your external installation. - Page 12 The initial installation procedure described here serves merely as an example. The exact initial installation procedu- re will depend on the settings you select. Please therefore follow the instructions displayed on screen closely. Operating language: > Press the OK key to open the display window for the Operating language.
- Page 13 Position A/Option A > Use the arrow keys up/down to mark the satellite you wish to receive at the DiSEqC setting Position A/Option A and confirm by pressing OK. (Fig. 5-7) Position B/Option A > Use the arrow keys up/down to mark the satellite you wish to receive at the DiSEqC setting Position (Fig.
-
Page 14: Settings
Searching for programmes / ISIPRO When checking whether new software is available for the receiver, the system will also in addition check whether a new ISIPRO programme list is available. If a new programme list is available, this can be installed with the aid of the ISI- PRO function. -
Page 15: Basic Settings
> Confirm by pressing OK. The sub-menu Operating language will be displayed. > Use the arrow keys up/down to mark the desired langua- > Store this selection in memory by pressing OK. > Press the Back key to return to the Main Menu. 6.2 Basic settings To ensure optimum enjoyment from your DVB receiver, you should still make the necessary settings according to your personal prefe-... -
Page 16: Audio/Video Settings
> To do this, press down the OK key as well as either the SAT1 or SAT2 key simultaneously. Press the Back key to return to the menu Settings, or press the Menu key to return to normal operation. The set- tings will be saved to memory automatically. -
Page 17: Antenna Settings
6.4 Antenna settings When you have completed adjusting your digital receiver to your indi- vidual preferences, you may, if required, still have to set your digital receiverin accordance with your antenna. In the menu Antenna settings you will find the satellites selected by the installation assi- stant. -
Page 18: Additional Settings/Lnc Properties
down the list one line at a time, use the arrow keys left/right to move back or forward one page at a time. If the satellite you are looking for is not included in the list, please select a reserve position, designated User 1 to User 14. -
Page 19: Rotating Antenna
Symbol rate The symbol rate indicates the volume of data being transmitted per second. This could be, for instance, 27500 (i.e. 27500 symbols per second). Enter the appropriate symbol rate using the numeric keys. User LNC If you have entered User LNC under the DiSEqC type, additional settings may be made: LOF low band LOF (Local oscillator frequency) is the frequency at which an LNC... -
Page 20: Programme Selection
If the current time is not displayed, this must still be acquired by the receiver. To do this, switch the unit on, and set it to receive a major channel such as ZDF for about 30 seconds, during which time the clock setting will be automatically acquired. -
Page 21: Calling Up Blocked Programmes
Total List, or view a list sorted by Providers. > Press the OK key. The active programme list will be display- > Use the red function key Category to open a window sho- wing the types of programme lists (Favourites list, Provider lists and Total list). -
Page 22: Tv/Radio Switching
will only rarely have to use the remote control of your television set. When the digital receiver is switched on, sound volume will be set at the level last used. > Adjust the volume of your digital receiver using the Volume + key to increase the volume, and Volume - to decrease the volume. -
Page 23: Additional Programme Information
> Press the Info key to display information on the programme currently selected (Fig. 7-12). (Fig. 7-12) The bottom half of the screen will now show the current time, the name of the channel selected, the name of the current programme being shown, as well as the starting and ending times of this pro- gramme, in as far as this data is broadcast by the provider. -
Page 24: Video Text
7.12 Video text 7.12.1 Using the video text decoder of your television set Wherever it is broadcast, video text will be supplied to your television set. To operate the video text display, use the remote control of your television set. If you experience problems with your television set, such as overlapping of video text and picture content, you should set your digital receiver to FBAS mode (Point 6.3.4). -
Page 25: Sup-Tittles
7.13 Sub-titles Where sub-titles are broadcast, this is indicated by displaying the message Select Sub-title. If you have enabled the Sub-title function in accordance with Point 6.3, these will be automatically displayed, with the provision that they are being broadcast in the language selected. -
Page 26: Interrupting Download Procedure
is in progress, the message Load SFI will appear in the display, fol- lowed by a record of the volume of SFI data already downloaded (e.g. 38%). The duration of the downloading procedure will depend on the num- ber of programmes included. Programmes can be shown a maximum of seven days in advance. -
Page 27: Next
7.14.5 Next > Use the yellow function key to call up the table "Next" (fol- lowing programmes). (Fig. 7-17) > All the SFI function s are available (Point 7.15.3). > Press the yellow function key to go to the SFI table “More” (Point 7.15.6) (Fig. -
Page 28: Sfi Timer Programming
the arrow keys. > Press the Back key to return to the previous table. 7.14.7.2 SFI timer programming The electronic programme guide SFI allows you to programme timer events with particular ease. > Use the arrow keys or the function keys to mark the desired programme. -
Page 29: Sfi Overview By Programme Type(Genre)
> Press the blue function key SFI Menu to open a selection window. > Use the arrow keys up/down to mark the line Programmes. > Confirm by pressing OK. The day’s overview of the program- me selected will be displayed. (Fig. 7-19) >... -
Page 30: Terminating Sfi
available, the appropriate fields will be marked. > To display the programme contents of a specific day, use the numeric keys to enter the number corresponding to the day of the week. 7.14.8 Terminating SFI > Press either the Menu or the TV/Radio key to return to normal operation. - Page 31 To programme an event, proceed as follows: Source > Use the arrow keys to mark the column Source. > Confirm by pressing OK. > In the selection window that will now be displayed, use the arrow keys up/down to select the desired source (TV or Radio).
-
Page 32: Timer Overview
> When you have completed the programming, press the yel- low function key Accept, to accept the data into memory. If under the heading Programme you have selected a pro- gramme that is blocked in terms of Point 8.3, you will first have to enter the PIN code before the data can be transfer- red to memory. -
Page 33: Changing Basic Programming
dow displayed: Type. > Confirm by pressing OK. A window showing the timer types available will be displayed. > Use the arrow keys up/down to select the desired timer type. > To accept the timer type, confirm by pressing OK. >... -
Page 34: Adding Programmes To Favourites List
(Fig. 8-2) The Favourites list will be displayed on the right half of the screen. This is now active, with the currently selected pro- gramme being marked. The alphabetically sorted Total list will be displayed on the left half of the screen. The Total list includes all available programmes. -
Page 35: Deleting Programmes
programme into the Favourites list. Marking blocks of programmes To mark several programmes simultaneously, proceed as fol- lows: > Press the OK key to go to the selection mode. The marked programme will be indicated by a cross on the left of the programme. -
Page 36: Deleting From The Total List
8.1.3.2 Deleting from the Total list To remove programmes from the Total list, proceed as described in Point 8.1.3.1. However, after calling up the programme list manage- ment, press the red function key Programmes to first switch to the Total list, then select the function Delete. 8.1.4 Sorting programmes To sort the order of programmes in the Favourites list according to your preferences, call up the programme list management as descri-... -
Page 37: Selecting Channels/Stations
> Use the arrow keys up/down to mark the line Programme guide. > Confirm by pressing OK. The menu Programme guide will be displayed. (Fig. 8-7) > Use the arrow keys up/down to move the marker within the menu, and to change the various positions as shown. When selecting a menu item, please also note any messa- ges displayed on screen. -
Page 38: Start Category
You may now start the downloading procedure manually: > Use the On/Standby key to switch the receiver off (Standby). > Now, while the display LED´s flash alternating, press the SFI key. The receiver will now carry out the downloading procedure. This will be indicated by the flashing got the display LED´s. -
Page 39: Sfi Channel
8.2.5 SFI channel > Press the OK key to display the sub-menu SFI Channel (Fig. 8-9). > To start the updating of SFI data manually, press the red function key Start now. If the parameters applicable to the data channel used to download the SFI list have changed, you can use this menu to correct the parameters. -
Page 40: Mode
8.3.2 Mode > In this line, use the arrow keys left/right to switch the parental control On of Off 8.3.3 Selecting channels > Press the OK key. The Favourites list of the category cur- rently selected (Radio or TV) will be displayed. The program- me currently selected is marked. -
Page 41: Automatic Scan
2. Satellite scan Select this type of scan if you want to search for programmes only on one speific satellite. 3. Transponder scan Select this type of scan to search on only one specific transponder of a satellite. 4. Manual scan Use this type of scan to search specifically for a particular program- me, using programme-specific PID numbers. -
Page 42: Transponderscan
> Press the OK key again to display the selection table sho- wing all the active satellites. > Use the arrow keys up/down to mark the line All Satellites, to scan all active satellites for programmes, or mark the desired satellite, to scan only this for programmes. >... -
Page 43: Manual Scan
> Use the numeric keys to enter the appropriate symbol rate. Polarisation > Use the arrow keys up/down to mark the line Polarisation. > In this line, use the OK key to enter the polarisation plane (horizontal or vertical), whichever is appropriate for the programme being scanned for. -
Page 44: Service Settings
Sorted The programmes found will be sorted into the Favourites list in accordance with a pre-programmed list. The order of listing the pro- grammes will be determined by the audio language set in Point 6.3.2 resp. by the country selected in Point 6.2.2 and 6.2.3. Unsorted The newly found programmes are added to the end of the Favourites list in an unsorted order. -
Page 45: Activating The Default Setting
8.5.1 Activate default setting After this function is called up, the default factory programming will be implemented again, all own settings will be deleted, and the installation assistant AutoInstall will be started. > Use the arrow keys up/down to mark the line Activate default setting. -
Page 46: Adapting Programmes
To start the updating of the programme list manually, press the red function key Test and confirm the message display- ed by pressing Yes (Fig. 8-24). Your receiver will restart itself, and will indicate the presence of a new programme list by means of a message on screen (Fig. -
Page 47: Deleting Programmes
8.5.3.2 Deleting programmes In this step you can delete programmes that are still included in your Favourites list, but are no longer broadcast. > If you wish to delete the programmes indicated as being no longer broadcast (Fig. 8-28),confirm by pressing OK. >... -
Page 48: Copying Settings
> In the line Update time use the numeric keys to enter the time at which the software update is to be carried out. > To start the update of the operating software manually, press the red function key Test. >... -
Page 49: Operation With A Rotating Antenna
9 Operation with a rotating antenna (DiSEqC 1.2) Your digital receiver is equipped for use in conjunction with a rotating antenna. You may control a suitable motor by means of the co-axial cable, using the DiSEqC control (DiSEqC-Level 1.2). > Call up the menu Antenna Settings as described in Point 6.4 (Fig. -
Page 50: Setting The Eastern Limit
> Now use the arrow keys up/down to mark the line Delete limits. > Confirm by pressing OK to accept the action selected to the green function key. > To delete the limits set,press the green function key Delete limits. >... - Page 51 60, and rounded to one decimal place. The result of this division is added to the degrees. The seconds are not taken into consideration at all, as they do not affect the first decimal place. Example: Co-ordinates of Daun/Germany (home of TechniSat) Latitude (deg.) 50° 11‘...
-
Page 52: Setting A Satellite Position
9.3 Setting a satellite position For each satellite position to be entered, work through Points 9.3.1 to 9.3.3. When programming satellite positions, we recommend that you begin with the satellite in the most easterly position, then work your way through all the remaining positions in a westerly direction, finis- hing off with the most extreme westerly satellite position. -
Page 53: Adjusting The Satellite Antenna
> When you have completed setting the test transponder, press Back to return to the menu for setting the rotating antenna. The field for entering the orbital position is now active. > Use the numeric keys to enter the orbital position of the user satellite, and confirm by pressing OK. -
Page 54: Automatic Fine Adjustment (Autofocus)
> Now use the arrow keys up/down to mark the field Save. > Now use the arrow keys right (field East is marked) resp. left (field West is marked) to turn the dish to the desired position. In each case keep the key pressed down until the desired position is reached. -
Page 55: Current Satellite List
9.4 Current satellite list The satellite positions saved are included in the satellite list. Positions not yet saved are marked in the list with a “*”. > To turn the dish to a position included in the satellite list, use the arrow keys to mark the field Current satellite list. -
Page 56: Technical Terms
10 Technical terms Antenna cable: Connecting cable between the modulator of the satellite receiver and the antenna input of the television set, used as an alternative if no SCART socket is available. AV: see SCART Coaxial cable: Connection cable between LNC and satellite receiver,used to trans- mit the signals received, and to supply current to the LNC. - Page 57 Intermediate frequency: The range of frequencies broadcast by a satellite cannot be transmitted via any cable. The LNC therefore converts the signal received to an intermediate frequency range in the band 950 to 2150 MHz. This can then be transmitted via cable, and processed in the digital receiver.
-
Page 58: Technical Data
SCART: Connector standard used for television sets, video recorders, satellite receivers and other home electronics equipment to transmit Audio (sound) and Video (Picture) signals (AV). Software update: Digital television is a new medium, providing not only impro- ved sound and picture quality, but also the option of providing interactive services. - Page 59 Video decoding: Video compression MPEG-2 and MPEG-1 compati Up to MP@ML (main profile @ main level) Video standard PAL / 25 Hz Active picture area 720 pixels x 576 lines Picture format 4 : 3 / 16 : 9 Picture material 16:9 Automatic adjustment for 16:9 TV sets (via SCART) Letterbox filtering for 4:3 TV sets...
- Page 60 LNC switched off in stand-by mode 22 kHz modulation: 22 kHz, Amplitude 0.6 V +/- 0.2 V Programme memory/Satellite positions: Number of programmes Favourites list TV: 999 TV programmes Number of programmes Favourites list Radio: 999 RADIO programmes Number of prtogrammes: Total list TV/Radio: Total of 5000 programmes possi- ble in Total list...
-
Page 61: Trouble-Shooting Guide
12 Trouble-shooting guide Problem Possible cause Solution Various programmes not shown in Incorrect programme list selected Select other programme list (see programme list Point 7.2.3.1) Sound OK, no TV picture Radio mode selected Switch to TV mode Programmes such as Pro 7, Sat 1, Interference from cordless (DECT) Increase distance between phone TM3, Kabel 1, DSF and HOT... - Page 62 Notes...
- Page 63 Notes...
- Page 64 Notes...
- Page 65 Notes...
-
Page 66: Annexure
13 Annexure Co-ordinates of some German cities and towns (2) City Degrees longitude (E) Degrees latitude (N) Kassel 51,3 Kiel 10,1 54,3 Koblenz 50,4 Köln 51,0 Krefeld 51,3 Landshut 12,2 48,5 Leipzig 12,4 51,3 Ludwigshafen 49,5 Lübeck 10,7 53,9 Lüneburg 10,4 53,3 Magdeburg... - Page 67 Co-ordinates of some German cities and towns (1) City Degrees longitude(E) Degrees latitude (N) Aachen 50,8 Augsburg 10,9 48,4 Berlin 13,4 52,5 Beucha 12,7 51,3 Bielefeld 52,0 Bonn 50,7 Brandenburg 12,6 52,4 Braunschweig 10,5 52,3 Bremen 53,1 Bremerhaven 53,6 Chemnitz 12,9 50,8 Cottbus...
-
Page 68: Index
14 Index Connections ....... .11 Antenna settings ......17 Autofocus . - Page 69 Safety notes ....... . .9 Software, updating ......47 Language .
-
Page 70: For Daily Use
For daily use Switching on and off > Switch the digital receiver on by pressing the On/Standby key, either on the unit or on the remote control. > Press this key again to switch the receiver off again. Programme selection Using the programme up/down keys >...
