Summary of Contents for TechniSat DIGIT ISIO S

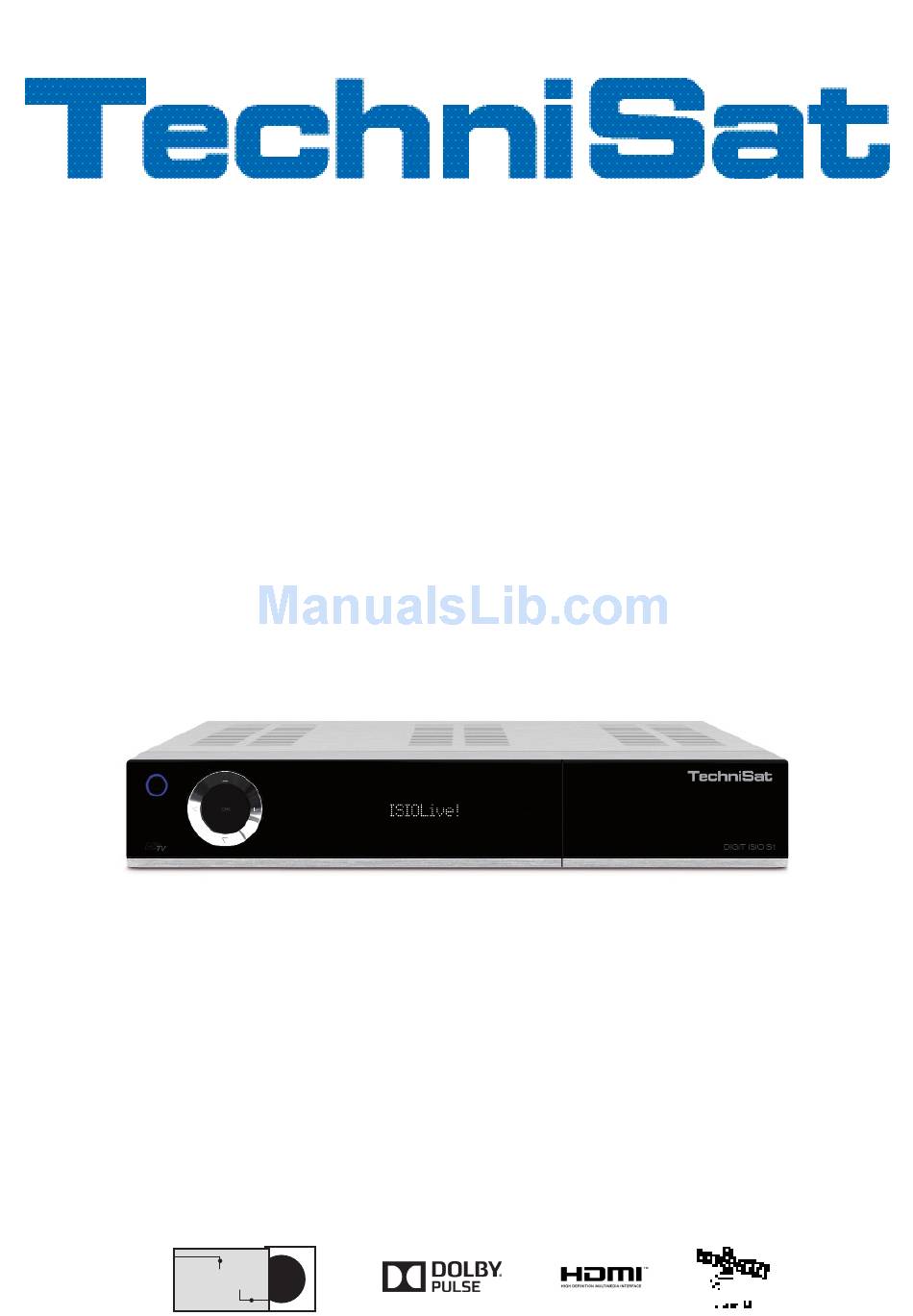

- Page 1 Quick start manual and warranty documentation DIGIT ISIO S International Edition Digital HD Receiver with Internet Functionality DiSEeqC...
- Page 2 1 Illustrations Socket On/Stand-by Arrow keys VF display USB port CI modules SD/MMC card Card reader: reader > Insert the CONAX smartcard into the card reader (gold chip facing down and at the front as you insert) and push it in as far as it will go. Inserting the CI/CI+ modules: >...
- Page 3 On/Standby Alarm Sound on/off Remote control code Numeric keypad keys Recording TV/Radio mode Stop/DVR Rewind Fast forward Pause / Play Arrow keys EPG/SFI WWW key Page up Page down Back Info Options selection Programme +/- Volume +/- Navigator / Function Function keys selection Menu...
-
Page 4: Please Read This First
2 Please read this first Before connecting and using the device, first check that everything has been supplied and familiarise yourself with the safety instructions. You should have received: 1 Digital receiver, 1 Remote control, 2 Batteries (1.5V micro-cell), 1 HDMI cable, 1 mains cable. -
Page 5: Periods Of Non-Use
Before handing your receiver over to your supplier for maintenance purposes, we recommend that you remove all storage media or data carriers. Restoring data is not part of maintenance or repair work. TechniSat accepts no responsibility for the loss of, or damage to, data during repair work. -
Page 6: Disposal Advice
2.5 Disposal advice The packaging material used for your receiver consists entirely of recyclable materials. Please sort the components appropriately, and dispose of them in line with your local waste disposal regulations. At the end of its useful life span, this receiver may not be disposed of with your regular household waste. -
Page 7: Important Notice
3 Important notice Dear customer, This quick start manual describes the most important connection options and basic operation steps to enable you to quickly start using the DIGIT ISIO S. 4 Remote control 4.1 Changing the battery > Open the cover on the battery compartment at the rear of the remote control by pushing it in the direction of the arrow and then lifting it off. -
Page 8: Connecting The Dvb Receiver
5 Connecting the DVB receiver Mains connection LNB 1 connection to the LNB Input 1 on the DVB receiver. (Please note that the LNB must be connected with LNB Input1 when operating with an antenna signal.) LNB 2 connection to the LNB Input 2 on the DVB receiver. HDMI connection from the DVB receiver to the TV. -
Page 9: Mains Power Connection
The following references (a b c etc.) relate to the illustration on page 8. 5.1 Mains power connection The digital receiver should only be connected to the mains power supply once you have finished making all the connections to the various other components. This will prevent damage to the digital receiver or other components. -
Page 10: Network Port (Rj45)
MPEG, MP3 or JPG playback functions to access MPEG, MP3 or JPG files on the USB storage device. You can also insert a WLAN dongle, e.g. the TechniSat USB WLAN Adapter (part no. 0000/3633) into the USB port to connect the receiver to your WLAN network. -
Page 11: Menu Language
By pressing the Back key, you can go back to the previous installation step, so you can correct any wrong entries at any time. The initial installation process shown here serves merely as an example. The exact process for the initial installation will depend on the settings you select. Therefore please follow all instructions displayed on screen carefully. -
Page 12: Screen Format
AV output Use the right/left arrow keys to choose whether your device is connected to your > TV using a Scart cable (EuroAV) or an HDMI/YPbPr cable. Press the OK key to accept the selection. > Screen format Use the right/left arrow keys to set the picture format for the connected TV. >... -
Page 13: Antenna Signals
Press the OK button to open the window containing the programme providers > available for selection. Use the up/down arrow keys to select the programme provider you want and > follow the instructions on the screen. Antenna signals In this section in the installation wizard, select how many antenna cables are connected to the receiver. -
Page 14: Software Update
If you want to check or modify the network settings, press the Options key. > Use the up/down arrow keys to select whether you want to configure a LAN or > WLAN network and press the OK button. > Now create the network settings. The press the Info button to accept the settings. - Page 15 Channel search / ISIPRO (where available) You have various options for searching for new channels or updating the channel list. You can use the ISIPRO channel list function to download a new channel list for your receiver from the satellite or run a channel search. To download an up-to-date channel list, use the up/down arrow keys to highlight >...
-
Page 16: Basic Operation
> If you do not want to wait for the EPG/SFI data to download, you can skip the process by pressing the Info button. The EPG/SFI data will then be automatically updated the following night, or you can update it manually at any time. If you have skipped the EPG/SFI update, your device will automatically download the EPG/SFI data at the time set in the service menu, as long as automatic EPG/SFI updating is kept active and the device is also in standby mode at this time. -
Page 17: Switching The Device On/Off
7.1 Switching the device on/off When the receiver is on standby, you can switch it on by pressing the On/Standby > button on the remote control/device. > When operating normally you can switch the device to standby mode by pressing the On/Standby button. - Page 18 Use the up/down arrow keys to highlight the Picture settings item. > The Picture settings menu is opened by subsequently pressing the OK button. > You can also highlight the individual menu points in the same way as you highlight an item on a submenu to open it and alter the respective settings.
-
Page 19: Changing A Setting
By highlighting Accept using the right/left arrow keys and confirming with the > OK button or by pressing on the green function key (Accept), the changes are saved and you return to the next menu level up. Alternatively: Press the Back button. >... -
Page 20: Entering Numbers
Press the OK button to open the selection list. > Highlight the setting you want using the up/down arrow keys. > By pressing the up/down arrow keys it is possible to move the highlight from line to line and to move upwards and downwards page by page using the page up/down buttons. -
Page 21: Virtual Keyboard
7.4.4 Virtual keyboard is shown on the right next to the set value, the value is amended using the virtual keyboard. You have three different keyboard options when using this data entry method. You can switch the keyboard layout between the so-called QWERTY keyboard and the alphabetic keyboard;... -
Page 22: Option Selection
Once you have reached the field you want with the highlight, you can then begin selecting the next character immediately since, in this case, the character is directly added to the term. If you wish to continue directly selecting a character from the same numeric pad key, you can add the previously highlighted character to the term by pressing the right arrow key. -
Page 23: Switching Off
8 Operating the unit 8.1 Switching on Switch the digital receiver on by pressing the On/Stand-by button either on the > receiver panel or on the remote control. > Change to an unblocked channel If the user-dependent parental control (TechniFamily) is activated, the user selection will appear. - Page 24 You can view additional data about the current programme by pressing the Info button. > 8.3.3.1 Selecting a channel You can now highlight the channel you want using the up/down arrow keys, the > page up/down keys and the numeric keypad keys. Press the OK button to select the highlighted channel.
-
Page 25: Volume Control
8.3.5 Returning to last channel selected Press the Back button on the remote control to return to the last channel selected. > > Press the button again to return to the channel you were previously watching. 8.3.6 TV/Radio switchover You can use the TV/Radio button to switch between TV and radio mode. >... -
Page 26: Freeze Frame
8.5.1 Switching to mute To switch the sound off (mute), press the Sound on/off button - press the key again > to switch the sound back on. Throughout the time that the volume is switched to mute, the symbol appears at the upper right of the screen. -
Page 27: Picture Zooming
8.8.1 Page selection Use the numeric keypad keys 0 to 9 to enter the 3-digit page number of the > teletext page you want. Use the coloured function keys to call up the pages displayed in the respective fields. > 8.9 HbbTV HbbTV (Hybrid broadcast broadband TV) is a technology that enables broadcast and Internet content to be linked. - Page 28 8.12.1 Calling up PiP mode Pressing the PiP button switches on picture-in-picture mode. > Main picture PiP picture 8.12.2 Toggling between PiP pictures You can toggle between the two pictures by pressing the Back button. > The PiP picture becomes the main picture and vice versa. 8.12.3 Exiting PiP mode You can exit the PiP function by pressing the PiP button or by pressing the TV/Radio >...
-
Page 29: Timer Recordings
Channel name with the corresponding channel slot within the active favourites list. Progress bars or the start/stop time of the programme being shown. The current date and the time. Shows that there is further information available about the broadcast. Programmes on the channel being shown. You can access the various SFIplus views and functions using the Options >... - Page 30 LAN or WLAN. Internet access provides you with various Internet functions such as unrestricted browsing, use of interactive services, video on demand and the new ISIO Live TechniSat service portal.
-
Page 31: Switching Between Tabs
> Open the Internet list. Use the Options selection under the Internet lists item to select the Internet > list you want. 8.16.2 Calling up websites by entering an address directly (URL entry) In addition to the option of using pre-programmed web links, you can call up the websites you want by manually entering the address/URL (Uniform Resource Locator). -
Page 32: Operating The Dvr
In the Options selection, select the Refresh item. > 8.16.6 Cancelling the loading process To cancel or interrupt the loading of a web page, use the Options selection to > select the Cancel item. 8.16.7 Adding a Favourite to the Internet list Frequently used websites can be added to the Internet list to make it easier to access them later. -
Page 33: Instant Recording
The following recording modes are available for DVR recording: 1. Instant recording Select this type of recording to immediately record the programme currently being broadcast at the push of a button. 2. Timer-controlled recording This function is used to switch your digital receiver on and off to record the selected programme onto the recording medium while you are out. -
Page 34: Dvr Playback
You can, for example, select +1 hour for which the receiver should continue to record > the channel and then automatically stop recording. 9.2 Timer recordings You can use the DVR timer to record programmes to an attached recording medium while you are out. - Page 35 9.3.1.2 From playback of a running / existing DVR recording Press the OK button to open the DVR Navigator. > In the function selection select the Movies / DVR item. > Now call up the My recordings folder on your attached recording medium. >...
-
Page 36: Ending Playback
9.3.6 Jump to tags During playback you have the option of navigating directly to locations in the recording where you have set tags. Using the options selection under the Tag menu item, select the tag to skip to the > location you want in the recording. -
Page 37: Troubleshooting Guide
10 Troubleshooting guide Fault Possible cause Solution Remote control does not Wrong remote control code Apply correct remote work used. control code Batteries are spent Replace batteries Various channels not shown Wrong channel list selected Select other channel list correctly in channel list Programmes such as Interference from cordless Increase distance between... - Page 38 Fault Possible cause Solution Cannot receive Antenna defective or not Check antenna channels that were correctly adjusted previously being Channel transferred to a Perform a search/scan received different transponder Channel no longer being None broadcast Intermittent Heavy rain or snow Remove snow from dish appearance of antenna...
- Page 39 Fault Possible cause Solution Receiver cannot be Defective data stream --> Hold down the On/Stand- operated, switched on or off receiver blocked by button on the receiver or the remote control for approx. 5 seconds Disconnect mains plug for approx. 5 seconds, then reconnect receiver Perform Flash-Reset: Warning!
- Page 40 Fault Possible cause Solution PC cannot connect Wrong network settings Check network settings to receiver; Receiver cannot connect to network Network cable connected Check network connection wrongly DVR recording no longer Selected Delete existing possible storage medium is full recording(s) Attach and configure another storage medium Cannot delete DVR...
- Page 41 - either by sending in dealer, in the original packaging, along your completed registration card (see with a proof of purchase (copy of invoice reverse) or online at www.technisat. or till receipt) and all accessories. com. 2. If, contrary to expectations, your...
-
Page 42: Warranty
However, from the seventh month after the date of purchase, under legal provision, the obligation is on you to prove that the problem with the equipment already existed at the time of purchase. But TechniSat is offering you another solution. By submitting a fully completed and signed TechniSat registration card, your two-year legal warranty claim is converted into a three-year warranty. - Page 43 How to register your product TechniSat Teledigital GmbH 1) Registration by post: cut out the completed TechniSat registration - TechniSat Warranty - card along the dotted line, place in an Nordstrasse 4a...
- Page 44 ✂ (please cut here)
- Page 48 Your receiver bears the CE symbol and complies with all requisite EU standards. Subject to change for amendments and printing errors Version 06/12 Duplication and reproduction only with the publisher's approval TechniSat and DIGIT ISIO S are registered trademarks of TechniSat Digital AG Postfach 560 D-54541 Daun Germany www.technisat.com...
