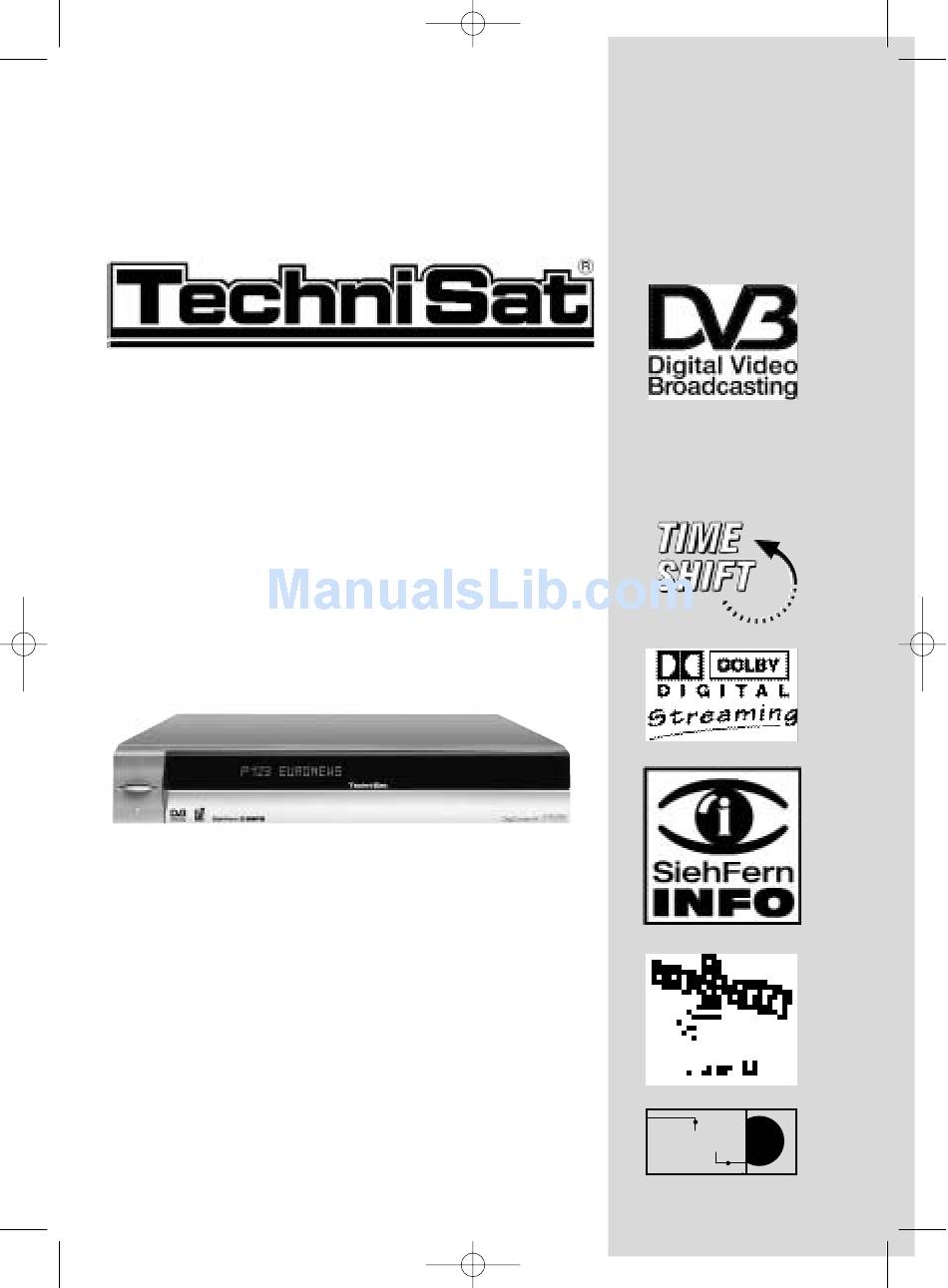

Bed_anl_.qxd
20.02.04
DigiCorder S1
Digital receiver
integrated hard disk drive

Operating Manual

With integrated Premiere decoding system and
PCMCIA interface for installing a CI module.
For the reception of free-to-air and encrypted pro-
grammes broadcast via satellite, (e.g.. VIACCESS,
16:28
Seite 1
Operating Manual
with
Premiere decoding system
and PCMCIA interface for
IRDETO, SECA ,etc. )
with integrated
a CI Module.
Integrated
video recor-
der
P V R
DiSEqC
1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Related Manuals for TechniSat S1

Summary of Contents for TechniSat S1

  • Page 1: Operating Manual

    Bed_anl_.qxd 20.02.04 16:28 Operating Manual DigiCorder S1 Digital receiver integrated hard disk drive Operating Manual With integrated Premiere decoding system and PCMCIA interface for installing a CI module. For the reception of free-to-air and encrypted pro- grammes broadcast via satellite, (e.g.. VIACCESS,...

  • Page 2: Table Of Contents

    Bed_anl_.qxd 20.02.04 16:28 Seite 2 1 Contents Contents .....2 Illustrations ....5 Please read this first .
  • Page 3 Bed_anl_.qxd 20.02.04 16:28 7.11 Freeze frame ..... . .30 7.12 Video text ......30 7.13 Sub-titles .
  • Page 4 Your unit carries the CE logo, and complies with all relevant EU standards. Subject to change without notice, not responsible for printing errors. Correct as at 11/03 TechniSat and DigiCorder S1 are registered trade-marks of TechniSat Digital GmbH P.O. Box 560...

  • Page 5: Illustrations

    Video text Remote control option: In order to operate 2 TechniSat receivers with identical coding, television sets as well as an additional future option, (e.g. VCR). Use these keys to select the remote control option Sat 1 and use this to operate your digital receiver, if you have not set this differently as described in Point 6.2.3:...
  • Page 6 Bed_anl_.qxd 20.02.04 16:28 On/Standby Ein/Standby Ein/Standby Programme select up/down Input terrestrial antenna input LNC out- output Seite 6 Index ..... . .79 Alpha-numeric display LED display...

  • Page 7: Please Read This First

    Bed_anl_.qxd 20.02.04 16:28 3 Please read this first > Before operating your unit for the first time, please check that you have received all the components. The package should contain: 1 digital receiver, 1 mains power cable, 1 remote con- trol, 1 operating manual, 1 guarantee card, 2 batteries (1,5V microcell).

  • Page 8: Safety Notes

    Bed_anl_.qxd 20.02.04 16:28 Seite 8 are shown in emphasized letters in this operating manual. Help: Where available, press the blue function key to display help texts, press again to disable the text display. Disposal information The packaging of this product consists entirely of recyclable materials.

  • Page 9: Connections

    Bed_anl_.qxd 20.02.04 16:28 4 Connections The items a b c etc. mentioned below refer to the illustration on page 10. 4.1 Mains power connection The digital receiver should be connected to the mains power supply only once all the other connections with other items of equipment have been made.

  • Page 10: Analogue Receiver

    Bed_anl_.qxd 20.02.04 16:28 Analogue Receiver Seite 10 Connecting the DVB receiver to a satellite installation a. Mains power connection b. Connection from the LNC to the LNC input(LNB IN) of the DVB receiver. c. Connection from the LNC output to the LNC input of an analogue receiver.

  • Page 11: Video Cassette Recorder (Vcr)

    Bed_anl_.qxd 20.02.04 16:28 cable. If your television set is appropriately equipped, it will switch automatically to AV when the digital recei- ver is switched on, and will provide satelliote recep- tion. 4.3.2 Via HF cable If your television set is not equipped with a SCART socket, the digital receiver will have to be connected to the antenna input socket of the television set.

  • Page 12: Unit With S-Video Input (Hosiden)

    Bed_anl_.qxd 20.02.04 16:28 Seite 12 To achieve the best possible sound quality, you may connect the digital receiver to a HiFi amplifier. To do this, use a suita- ble cable to connect the cinch sockets Audio R and Audio L of the digital receiver with an input on your HiFi amplifier (e.g.
  • Page 13 Bed_anl_.qxd 20.02.04 16:28 Operating language: Press OK to move to the selection window for the > operating (menu) language (Fig. 5-2) Use the up/down arrow keys to select the desired > operating language. Confirm by pressing OK. > Audio language Use the up/down arrow keys to select the prefer- >...
  • Page 14 Bed_anl_.qxd 20.02.04 16:28 (Fig. 5-2) (Fig. 5-3) (Fig. 5-4) (Fig. 5-5) (Fig. 5-6) Seite 14 you wish to receive at the DiSEqC setting Position B/Option A, and confirm by pressing OK. (Fig. 5-8) Position A/Option B Use the arrow up/down keys to mark the satellite >...

  • Page 15: Settings

    Bed_anl_.qxd 20.02.04 16:28 you will be prompted (Fig. 5-14) to decide whether you want to automatically include the programmes found in the TV or Radio lists. If you decide to include the programmes automa- tically, you can then decide whether they should be included in the Favourites list in sorted or unsorted form.

  • Page 16: Time Difference To Gmt (Hours)

    Bed_anl_.qxd 20.02.04 16:28 (Fig. 5-12) (Fig. 5-13) (Fig. 5-14) (Fig. 5-15) Seite 16 should still make some settings related to your individual pre- ferences. Press the Menu key to call up the Main Menu. > Use the up/down arrow keys to mark the entry >...

  • Page 17: Audio/Video Settings

    Bed_anl_.qxd 20.02.04 16:28 6.3 Audio/Video settings To optimize your digital receiver in conjunction with your tele- vision set, you can make further settings in the menu Audio /Video settings. Press the Menu key to display the Main Menu. > Use the up/down arrow keys to mark the line >...

  • Page 18: Dolby Digital (Ac3)

    Bed_anl_.qxd 20.02.04 16:28 (Fig. 6-4) Seite 18 standard for your television set. Use the left/right arrow keys to select PAL BG, PAL I, PAL DK, SECAM BG or SECAM DK. 6.3.6 Dolby Digital (AC3) A number of movie films are broadcast in the Dolby Digital format.
  • Page 19 Bed_anl_.qxd 20.02.04 16:28 The satellites selected by means of the installation assistant will be displayed in the menu Antenna settings. If the installation assistant was prematurely aborted, the satellite positions ASTRA and EUTELSAT are pre-programmed ex factory. If you would also like to receive other satellites, or if you are using a different type of LNC, you can make the appropriate settings on your digital receiver as follows: Press Menu to call up the Main Menu.
  • Page 20 Bed_anl_.qxd 20.02.04 16:28 Seite 20 arrow keys to move forward or back one page at a time. If the satellite you are looking for is not shown in the list, please select one of the reserve slots, marked User 1 to User 14. Confirm by pressing OK.

  • Page 21: Operation

    Bed_anl_.qxd 20.02.04 16:28 User LNC If you have entered User LNC as the DiSEqC type, you can make additional settings: LOF low band LOF (Local oscillator frequency) is the frequency at which the LNC converts the frequency received into the so-called 1. interim frequency, which can then be received by the digital receiver.

  • Page 22: Programme Selection

    Bed_anl_.qxd 20.02.04 16:28 (Fig. 6-9) Example: Position Position Output Output Option Output Seite 22 7.2 Programme selection 7.2.1 Using the programme up/down keys Use the programme up/down keys either on the > unit or on the remote control to move up or down by one programme slot at a time.

  • Page 23: Reception Of Encrypted Programmes

    Bed_anl_.qxd 20.02.04 16:28 (Fig. 7-2) In addition, the entry Hard drive recordings will be shown, allowing you to access the hard drive navi- gator (Point 7.15.2). Use the up/down arrow keys to select a program- > me list type, e.g. Total list. Confirm by pressing OK.

  • Page 24: Multifeed Options

    Bed_anl_.qxd 20.02.04 16:28 (Fig. 7-1) Seite 24 ting in the direction of insertion. > If an encrypted programme is now selected, your digi- tal receiver will automatically check the card slot, and will display the programme in unencrypted form, provi- ded a corresponding CI module and a valid smart card for this programme have been inserted.

  • Page 25: Volume Control

    Bed_anl_.qxd 20.02.04 16:28 ted starting time, you can enjoy the programme at the desired time. 7.4 Volume control You have the option of adjusting the volume of your digital receiver. This makes using your receiver even more conve- nient, since all important functions are combined on the recei- ver remote control, and you will only rarely need to use the remote control of your television set.

  • Page 26: Display Time And Programme Info

    Bed_anl_.qxd 20.02.04 16:28 (Fig. 7-5) Seite 26 Dolby Digital. Confirm by pressing OK. > You can now enjoy the programme in Dolby Digital sound. If you would like your receiver to present programmes in Dolby Digital automatically, set the unit to automatic AC3 reproduc- tion as described in Point 6.3.6.

  • Page 27: Contents

    Bed_anl_.qxd 20.02.04 16:28 Use the arrow keys to mark the programme for > which you wish to view the data. Press the Option key to display the data of the trans- > ponder selected (Fig. 7-14). > Use the coloured function keys to also display Audio/Video information, Programme information, and, where appropriate, information on the encryp- tion system used (CA).

  • Page 28: Mixed Mode

    Bed_anl_.qxd 20.02.04 16:28 (Fig. 7-10) (Fig. 7-11) Seite 28 Press the yellow function key to display the video > text group indicated in the yellow field. Press the blue function key to display the video text > group indicated in the blue field. Mixed mode Press the Videotext key again to switch to mixed >...

  • Page 29: Downloading Sfi Data

    Bed_anl_.qxd 20.02.04 16:28 screen mark selected programmes which will be switched on automatically at the starting time programme timers search for programmes according to type (genre), and to select them for viewing. 7.14.1 Downloading SFI data The programme information is updated at the time set on your receiver in accordance with Point 8.2 (SFI channel.

  • Page 30: Now (Table With Current Programme Contents)

    Bed_anl_.qxd 20.02.04 16:28 (Fig. 7-15) Seite 30 7.14.4 Now (table with current programme contents) Initially, the SFI table “Now” (Fig. 7-16) will be displayed, showing programmes currently being broadcast. The yellow bar to the right of the programme name indicates the elapsed broadcast time of the current programme.

  • Page 31: Sfi Functions

    Bed_anl_.qxd 20.02.04 16:28 > Press the numeric key “0” to go to the PVR navigator. Press Back to return to the table “Next”. 7.14.7 SFI functions To utilise the following SFI functions, call up the SFI as des- cribed in Point 7.14.3. 7.14.7.1 SFI Info The function SFI Info allows you to display a biref informa- tion on the programme or channel selected.

  • Page 32: Sfi Programme Overview

    Bed_anl_.qxd 20.02.04 16:28 (Fig. 7-16) Seite 32 Deleting an SFI timer event > If you wish to delete a timer event programmed via SFI, proceed as described above to mark the selected programme. Press the red function key Timer to open a selection >...

  • Page 33: Hard Drive Operation

    Bed_anl_.qxd 20.02.04 16:28 Press the blue function key SFI Menu to open a > selection window. Use the up/down arrow keys to mark the line > Genres. Confirm by pressing OK. > Use the green function key Genres to open a win- >...
  • Page 34 Bed_anl_.qxd 20.02.04 16:28 Seite 34 7.15.1.1 Instant recording Start and end recording manually Option 1: > Switch to the channel that carried the programme you wish to record. Press the Record key to record the currently broad- > cast programme. You can continue to watch the pro- gramme on screen while the recording is in progress.

  • Page 35: Timer Recordings

    Bed_anl_.qxd 20.02.04 16:28 > Switch to the channel that will broadcast the program- me you wish to record. Press the Record key to record the current program- > me. The programme will continue to be displayed on the screen while the recording is running. Press the On/Standby key >...
  • Page 36 Bed_anl_.qxd 20.02.04 16:29 (Fig. 7-20) (Fig. 7-21) (Fig. 7-22) Seite 36 display. 3. Programme change timer If your receiver is in normal operating mode, it will switch to the pre-selected programme slot at the designated starting time. In contrast to the hard drive or video recorder timers, the full functionality of the unit is not restricted, and the unit will not be switched off at the end of the programme.

  • Page 37: Timer Overview

    Bed_anl_.qxd 20.02.04 16:29 timer). Repeat Use the arrow keys to mark the column Rep. > Press OK. > A selection window will be opened, showing various suggestions for repeats. Timer on once Daily repeat Repeat once a week Repeat only on workdays Repeat only on weekends Use the up/down arrow keys to select the desired >...

  • Page 38: Timeshift Function

    Bed_anl_.qxd 20.02.04 16:29 Seite 38 Press the green function key Delete. > A prompt will be displayed:”Do you really want to dele- te this timer?” Use the left/right arrow keys to select Yes. > To delete the timer entry confirm by pressing OK. >...

  • Page 39: Pause/Freeze Frame

    Bed_anl_.qxd 20.02.04 16:29 To facilitate going to a specific point of a recording > in progress, you can use the functions Play, Pause as well as Fast Search, as described under Point 7.15.2. Press the Info key to display the information box, >...

  • Page 40: Managing The Hard Drive

    Bed_anl_.qxd 20.02.04 16:29 (Fig. 7-23) (Fig. 7-24) Seite 40 To locate a specific point in a recording, your PVR is equip- ped with functions for fast forward and reverse play. While in Play mode, press the blue function key > Forward or the red function key Reverse.

  • Page 41: Parental Control

    Bed_anl_.qxd 20.02.04 16:29 A list will be displayed showing all the recordings on the hard drive. > Use the up/down arrow keys to mark the desired pro- gramme. Delete To delete the selected recording, press the red func- > tion key Delete. Confirm the following message by pressing OK, to >...

  • Page 42: Hard Drive Information

    Bed_anl_.qxd 20.02.04 16:29 Seite 42 www.technisat.de. 7.15.3.2Hard drive information Press OK to display a window showing information on > the integrated hard drive. 7.15.3.3 Hard drive management Press OK to display an overview of the number of > recordings made, and of the free space available. (Fig.
  • Page 43 Bed_anl_.qxd 20.02.04 16:29 This chapter describes how you can change the pre-program- Example: Timeshift playback ming of your digital receiver, as well as the Favourites list in You have missed the start of the Formula 1 race - no problem! line with your preferences.
  • Page 44 Bed_anl_.qxd 20.02.04 16:29 Seite 44 display all available programmes in the Total list, or All new, to display only the new programmes found during the last scan, or All English, to display only English-language programmes. Confirm by pressing OK. > Now, depending on your selection, a programme list will be displayed showing, for example, all programmes, all new or all English-language programmes.
  • Page 45 Bed_anl_.qxd 20.02.04 16:29 Confirm by pressing OK. > Use the up/down arrow keys to mark a programme > that you wish to remove from the list. Press the yellow function key Remove. > The following prompt will be displayed on screen:“Remove programme(s) from list?”.

  • Page 46: Programming The Electronic Programme Guide

    Bed_anl_.qxd 20.02.04 16:29 (Fig. 7-28) Seite 46 these as described in 8.1.2 (Marking blocks of pro- grammes). Now press the yellow function key Sort. A double > arrow will be shown next to the programme block selected. You can now use either the up/down arrow keys or >...
  • Page 47 Bed_anl_.qxd 20.02.04 16:29 dow. Here you have the option of selecting the desired programme list type. Use the up/down arrow keys to select the desired > programme list type (e.g. Favourites list). Confirm by pressing OK. The programme list selected >...

  • Page 48: 50 8.3 Parental Control Function

    Bed_anl_.qxd 20.02.04 16:29 (Fig. 8-3) (Fig. 8-4) Seite 48 me guide is called up. If you select Genres, you can use the arrow keys to > additionally select your preferred genre (e.g.. movies, news, shows, etc.). 8.2.3 SFI channel Your receiver is equipped to receive a data channel with addi- tional SFI data via the ASTRA satellite Systems (19°...
  • Page 49 Bed_anl_.qxd 20.02.04 16:29 8-10) Use the up/down arrow keys to move the marker > around within the menu, and change the individual positions. When selecting a menu item please note any additional messages displayed on screen. 8.3.1 Changing the unit PIN The unit PIN code is set at the factory to 0000.

  • Page 50: Programme Search/Scan

    Bed_anl_.qxd 20.02.04 16:29 (Fig. 8-6) Seite 50 list according to your preferences, press the Menu key to revert to normal operation. > To reverse the blockage of individual programmes, proceed as described above. Mark the appropriate programme, and remove the parental lock symbol by pressing the yellow function key.
  • Page 51 Bed_anl_.qxd 20.02.04 16:29 programmes) or whether you want to include encrypted programmes (All programmes). Confirm by pressing the red function key Start > scan. The scan may take more than 15 minutes. Please note any on-screen messages displayed. 8.4.2 Satellite scan UTo scan a specific satellite for programmes, select the option Satellite scan (Fig.

  • Page 52: Symbol Rate

    Bed_anl_.qxd 20.02.04 16:29 Seite 52 Transponder frequency. In this line, use the numeric keys to enter the appro- > priate frequency. Symbol rate The symbol rate indicates the volume of data transmitted per second. A typical figure might be, for example, 27500 (27500 symbols per second).

  • Page 53: Service Settings

    Bed_anl_.qxd 20.02.04 16:29 While the scan is in progress, you can follow this on screen as the various transponders are scanned. When the scan has been completed, the number of transponders found, the num- ber of programmes found as well as the number of new pro- grammes found will be shown on screen.

  • Page 54: Software Update

    Bed_anl_.qxd 20.02.04 16:29 (Fig. 8-11) (Fig. 8-12) Seite 54 (Fig. 8-21) Use the up/down arrow keys to mark the menu line > Service settings. Confirm by pressing OK. > The sub-menu Service settings will be displayed. (Fig. 8-22) 8.5.1 Activate default setting When this function is selected, the default settings pre-pro- grammed at the factory are activated again, your own settings are deleted, and the installation assistant AutoInstall will...

  • Page 55: Copying Settings

    Bed_anl_.qxd 20.02.04 16:29 rected as described under Point 8.3.4 (manual programme scan). The current transponder data may be obtained from your specialist retailer. In the normal course of events you should not make any changes to this menu. Note: This function should not be implemented if you have made changes in the menues “Basic set- tings”...

  • Page 56: (Diseqc 1.2)

    Bed_anl_.qxd 20.02.04 16:29 (Fig. 8-15) (Fig. 8-16) Seite 56 This menu item allows you to access the sub-menues of the CI module inserted. By confirming with OK, you can display information relating to the CI module inserted as well as to the smart card being used.

  • Page 57: Setting Western Limit

    Bed_anl_.qxd 20.02.04 16:29 Confirm by pressing OK. > The menu for setting the motorised antenna will now be displayed. (Fig. 9-4) Press the yellow function key Actions to open an > additional window. (Fig. 9-5) Now use the up/down arrow keys to mark the line >...

  • Page 58: Setting Satellite Position

    Bed_anl_.qxd 20.02.04 16:29 (Fig. 8-18) (Fig. 8-19) Seite 58 Note! You should only activate the geo-positioning function if your DiSEqC motor supports this function. > As described above, call up the menu for setting the motorised antenna. Use the arrow keys to mark the field Geo.Pos. >...

  • Page 59: Selecting Satellite Position

    Bed_anl_.qxd 20.02.04 16:29 with the most easterly satellite location. Then, continue by adding the other satellite positions, working in a westerly direction, until you have reached the most westerly satellite position. Your digital receiver has been pre-programmed at the factory for the most commonly used satellite positions. In addition, you may enter and configure user-defined (User) satellite positions (User 1 to User 14) for any orbital position.

  • Page 60: Adjusting The Satellite Antenna

    Bed_anl_.qxd 20.02.04 16:29 (Fig. 8-23) (Fig. 8-24) Seite 60 If the geo-positioning function is switched on (Point 9.2) you can now turn the antenna to the programmed user satellite position using the function turn to Sat (Point 9.4.1). If the geo-positioning function is switched off (Point 9.3.2.2) you must now turn the antenna manually to the desired satellite position.

  • Page 61: Saving A Satellite Position

    Bed_anl_.qxd 20.02.04 16:29 perform the automatic focussing function. This provides a fine adjustment of the antenna to achieve optimum reception. Press the yellow function key Actions to open a > window displaying the actions available. Now use the up/down arrow keys to mark the line >...

  • Page 62: Delete Satellite Position

    Bed_anl_.qxd 20.02.04 16:29 (Fig. 9-1) (Fig. 9-2) (Fig. 9-3) (Fig. 9-4) Seite 62 While the positioning procedure is in progress, the blinking message “turn” will be displayed in the menu. 9.4.1 Selecting a satellite position In order to turn the dish antenna to the position specified in the satellite list, your digital receiveris equipped with the function turn to Sat.
  • Page 63 Bed_anl_.qxd 20.02.04 16:29 Data compression/MPEG1/MPEG2: The current television standard (625 lines and 50 Hz picture repeat frequency) provides a digital data volume of 216 MBit/s. This would require bandwidths simply not available either ter- restrially or via satellite. The data volume is thus reduced by means of a data reduction system.
  • Page 64 Bed_anl_.qxd 20.02.04 16:29 Seite 64 the High range Modulator: Switch in the satellite receiver or video recorder used to con- nect the television set via antenna cable Parabolic dish: Dish, made of metal or coated synthetics, with parabolic shape, used to focus the electro-magnetic waves transmitted by the satellite at a focal point.

  • Page 65: Technical Data

    Bed_anl_.qxd 20.02.04 16:29 LNCs are supplied with power by means of the coaxial cable, to achieve this the receiver supples either 14 or 18 volt power Interim frequency: The frequency range broadcast by the satellite cannot be transmitted via a cable. Therefore the LNC converts the sig- nal to the interim frequency range of 950 to 2150 MHz.

  • Page 66: Hard Drive

    Bed_anl_.qxd 20.02.04 16:29 (Fig. 9-12) Seite 66 Output impedance 600 Ohm > 60 dB ( 1 kHz ) > 60 dB Crosstalk < - 65 dB Input analogue: Input level l/r 0,5 V r.m.s. (nominal) Input impedance > 40 kOhm Volume at switch-on Automatic use of last volume set- ting...

  • Page 67: Input Voltage

    Bed_anl_.qxd 20.02.04 16:30 Function Update for operating software and pre-pro- gramming LNC power supply: LNC power LNC voltage vertical LNC voltage horizontal 22 kHz modulation: Programme memory/satellite positions: No. of programmes Favourites list TV: No. of programmes Favourites list Radio: Number of programmes: Total list TV/Radio: DiSEqC:...
  • Page 68 Bed_anl_.qxd 20.02.04 16:30 Seite 68 Index .......19, 28 Autofocus 67 Automatic scan .

  • Page 69: Switching On And Off

    Bed_anl_.qxd 20.02.04 16:30 ........31 SFI channel ....... . .52 Safety notes .
  • Page 70 Bed_anl_.qxd 20.02.04 16:30 Seite 70 When entering programme numnbers with more than one digit, you have approx. 3 seconds time after pressing a key to complete the entry. If you wish to enter a number with only one or two digits, you can speed up the switching process by keeping your finger pressed down a little longer on the last digit.
  • Page 71 Bed_anl_.qxd 20.02.04 16:30 Seite 71...
  • Page 72 Bed_anl_.qxd 20.02.04 16:30 Seite 72...
  • Page 73 Bed_anl_.qxd 20.02.04 16:30 Seite 73...
  • Page 74 Bed_anl_.qxd 20.02.04 16:30 Seite 74...
  • Page 75 Bed_anl_.qxd 20.02.04 16:30 Problem Various programmes not shown in programme list Sound OK, no TV picture Programmes such as Pro 7, Sat 1, TM3, Kabel 1, DSF and HOT temporarily interrupted Unit controls cannot be operated Remote control not working Temporary appearance of small square blocks in picture, unit temporarily freezes picture, no...
  • Page 76 Bed_anl_.qxd 20.02.04 16:30 Problem Current time not displayed while in standby mode Unit cannot be switched on, or can- not be operated Recording on hard drive no longer possible Deleting hard drive recordings not possible Seite 76 Possible cause Current time not downloaded Switch to major programme, e.g.
  • Page 77 Bed_anl_.qxd 20.02.04 16:30 Seite 77...
  • Page 78 Bed_anl_.qxd 20.02.04 16:30 Solingen Stuttgart Trier Weimar Wiesbaden Wilhelmshaven Wismar Wuppertal Würzburg Zwickau Seite 78 51,2 48,8 49,8 10,0 48,4 11,3 51,0 50,1 53,5 11,5 53,9 51,3 49,8 12,5 50,7...
  • Page 79 Bed_anl_.qxd 20.02.04 16:30 Seite 79...
  • Page 80 Bed_anl_.qxd 20.02.04 16:30 Seite 80...
  • Page 81 Bed_anl_.qxd 20.02.04 16:30 Seite 81...
  • Page 82 Bed_anl_.qxd 20.02.04 16:30 Seite 82 151203/201/1 2233430000100...
  • Page 83 Bed_anl_.qxd 20.02.04 16:30 Seite 83...
  • Page 84 Bed_anl_.qxd 20.02.04 16:30 Seite 84...
  • Page 85 Bed_anl_.qxd 20.02.04 16:30 Seite 85...
  • Page 86 Bed_anl_.qxd 20.02.04 16:30 Seite 86...
  • Page 87 Bed_anl_.qxd 20.02.04 16:30 Seite 87...
  • Page 88 Bed_anl_.qxd 20.02.04 16:30 Seite 88...
  • Page 89 Bed_anl_.qxd 20.02.04 16:30 Seite 89...
  • Page 90 Bed_anl_.qxd 20.02.04 16:30 Seite 90...
  • Page 91 Bed_anl_.qxd 20.02.04 16:30 Seite 91...
  • Page 92 Bed_anl_.qxd 20.02.04 16:30 Seite 92...
  • Page 93 Bed_anl_.qxd 20.02.04 16:30 Seite 93...
  • Page 94 Bed_anl_.qxd 20.02.04 16:30 Seite 94...
  • Page 95 Bed_anl_.qxd 20.02.04 16:30 Seite 95...
  • Page 96 Bed_anl_.qxd 20.02.04 16:30 Seite 96...
  • Page 97 Bed_anl_.qxd 20.02.04 16:30 Seite 97...
  • Page 98 Bed_anl_.qxd 20.02.04 16:30 Seite 98...
  • Page 99 Bed_anl_.qxd 20.02.04 16:30 Seite 99...
  • Page 100 Bed_anl_.qxd 20.02.04 16:30 Seite 100...
  • Page 101 Bed_anl_.qxd 20.02.04 16:30 Seite 101...
  • Page 102 Bed_anl_.qxd 20.02.04 16:30 Seite 102...
