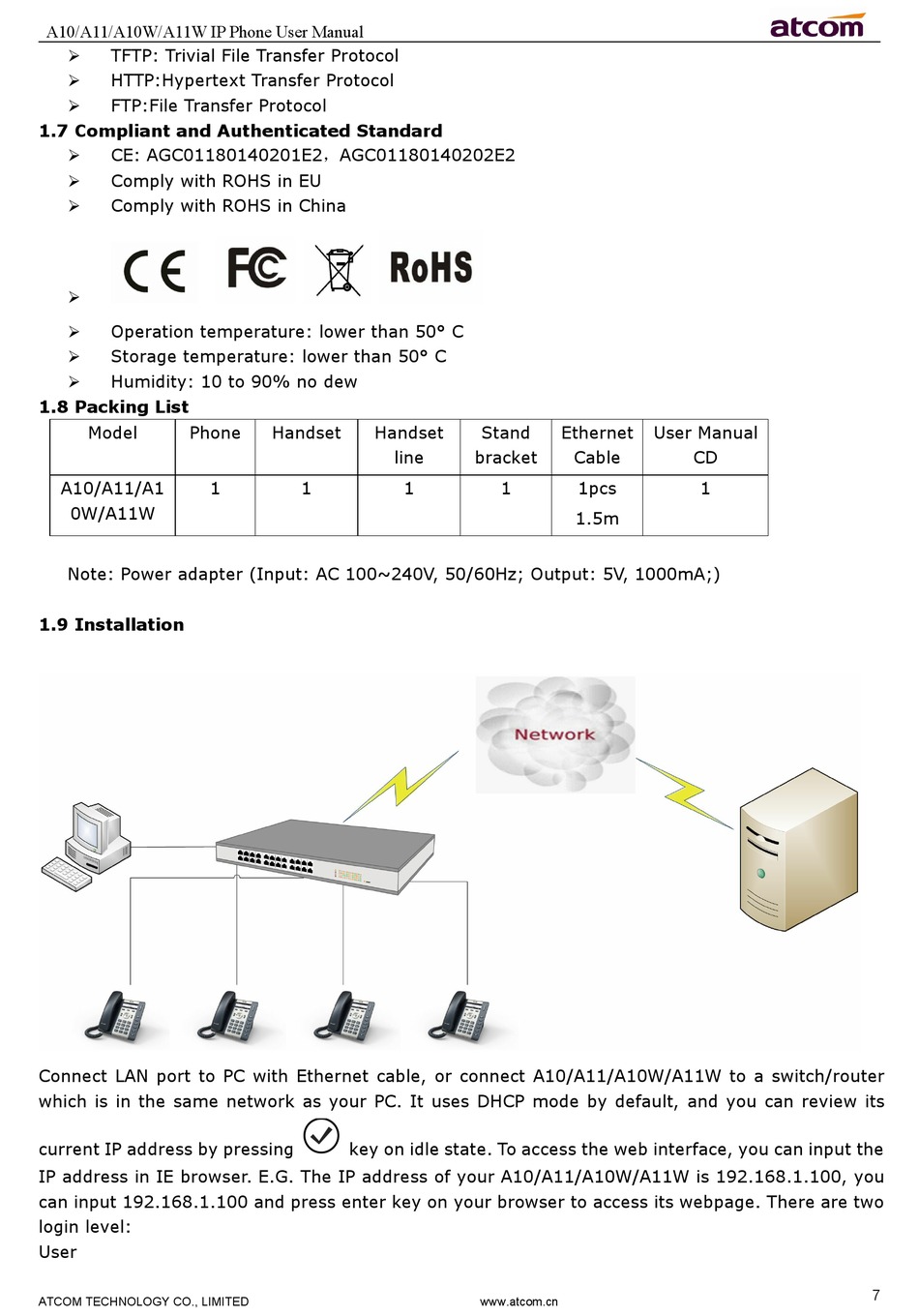

Compliant And Authenticated Standard; Packing List; Installation - ATCOM A10 User Manual

A10/A11/A10W/A11W IP Phone User Manual
TFTP: Trivial File Transfer Protocol

HTTP:Hypertext Transfer Protocol

FTP:File Transfer Protocol


1.7 Compliant and Authenticated Standard

CE: AGC01180140201E2，AGC01180140202E2

Comply with ROHS in EU

Comply with ROHS in China


Operation temperature: lower than 50° C

Storage temperature: lower than 50° C

Humidity: 10 to 90% no dew


1.8 Packing List

Model Phone
A10/A11/A1 1
0W/A11W
Note: Power adapter (Input: AC 100~240V, 50/60Hz; Output: 5V, 1000mA;)

1.9 Installation

Connect LAN port to PC with Ethernet cable, or connect A10/A11/A10W/A11W to a switch/router
which is in the same network as your PC. It uses DHCP mode by default, and you can review its
current IP address by pressing
IP address in IE browser. E.G. The IP address of your A10/A11/A10W/A11W is 192.168.1.100, you
can input 192.168.1.100 and press enter key on your browser to access its webpage. There are two
login level:
User
ATCOM TECHNOLOGY CO., LIMITED
Handset Handset
line
1 1
key on idle state. To access the web interface, you can input the
Stand Ethernet
bracket Cable
1 1pcs
1.5m
www.atcom.cn
User Manual
CD
1
7
