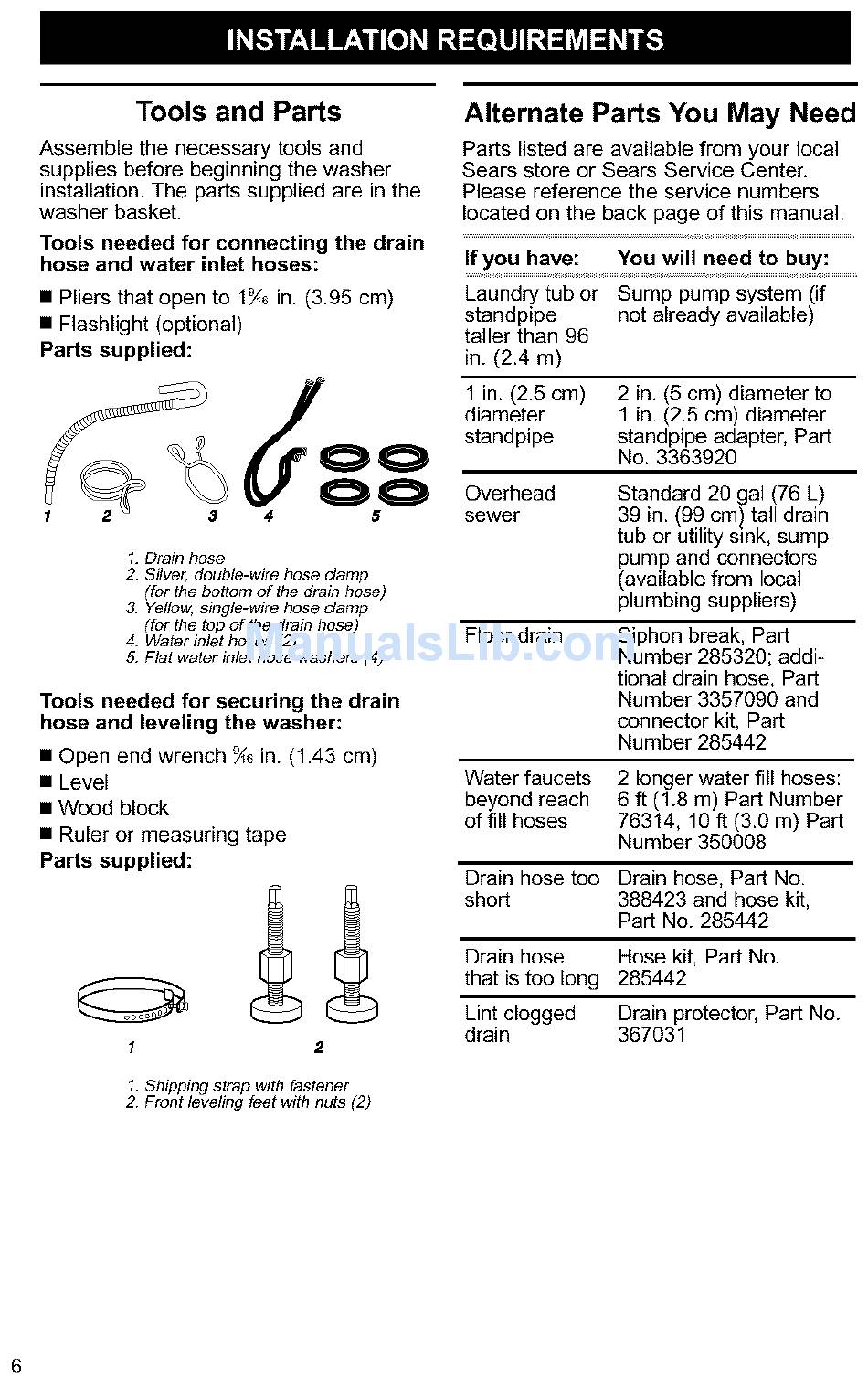

Tools and Parts
Assemble the necessary tools and
supplies before beginning the washer
installation. The parts supplied are in the
washer basket.
Tools needed for connecting the drain
hose and water inlet hoses:
• Pliers that open to 1_ in. (3.95 cm)
• Flashlight (optional)
Parts supplied:
oo
oo
4 5
1. Drain hose
2 Silve_ double-wire hose clamp
(for the bottom of the drain hose)
3. Yellow, single-wire hose clamp
(for the top of the drain hose)
4. Water inlet hoses (2)
5. Flat water inlet hose washers (4)
Tools needed for securing the drain
hose and leveling the washer:
• Open end wrench _ in. (1.43 cm)
• Level
• Wood block
• Ruler or measuring tape
Parts supplied:
1 2
1. Shipping strap with fastener
2 Front leveling feet with nuts (2)
Alternate Parts You May Need
Parts listed are available from your local
Sears store or Sears Service Center.
Please reference the service numbers
located on the back page of this manual.
If you have: You will need to buy:
Laundry tub or Sump pump system (if
standpipe not already available)
taller than 96
in. (2.4 m)
1 in. (2.5 cm) 2 in. (5 cm) diameter to
diameter 1 in. (2.5 cm) diameter
standpipe standpipe adapter, Part
No. 3363920
Overhead Standard 20 gal (76 L)
sewer 39 in. (99 cm) tall drain
tub or utility sink, sump
pump and connectors
(available from local
plumbing suppliers)
Floor drain Siphon break, Part
Number 285320; addi-
tional drain hose, Part
Number 3357090 and
connector kit, Part
Number 285442
Water faucets 2 longer water fill hoses:
beyond reach 6 ft (1.8 m) Part Number
of fill hoses 76314, 10 ft (3.0 m) Part
Number 350008
Drain hose too Drain hose, Part No.
short 388423 and hose kit,
Part No. 285442
Drain hose Hose kit, Part No.
that is too long 285442
Lint clogged Drain protector, Part No.
drain 367031
