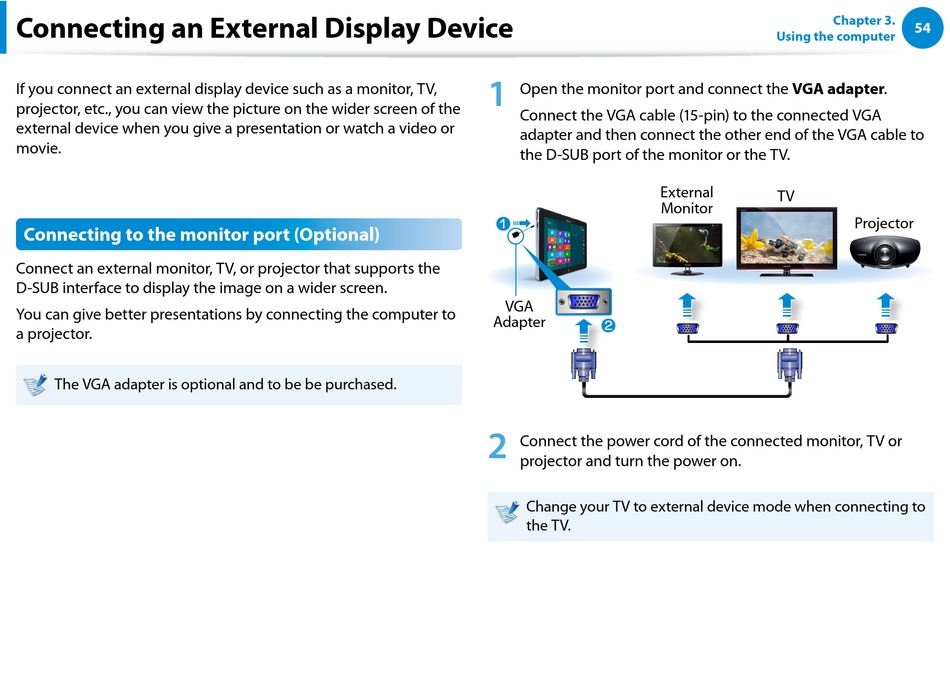

Connecting an External Display Device

If you connect an external display device such as a monitor, TV,
projector, etc., you can view the picture on the wider screen of the
external device when you give a presentation or watch a video or
movie.
Connecting to the monitor port (Optional)
Connect an external monitor, TV, or projector that supports the
D-SUB interface to display the image on a wider screen.
You can give better presentations by connecting the computer to
a projector.
The VGA adapter is optional and to be be purchased.
1
Open the monitor port and connect the VGA adapter.
Connect the VGA cable (15-pin) to the connected VGA
adapter and then connect the other end of the VGA cable to
the D-SUB port of the monitor or the TV.
External
Monitor
z
VGA
Adapter
x
2
Connect the power cord of the connected monitor, TV or
projector and turn the power on.
Change your TV to external device mode when connecting to
the TV.
Chapter 3.
54
Using the computer
TV
Projector
