Chapter 5
5.3.4

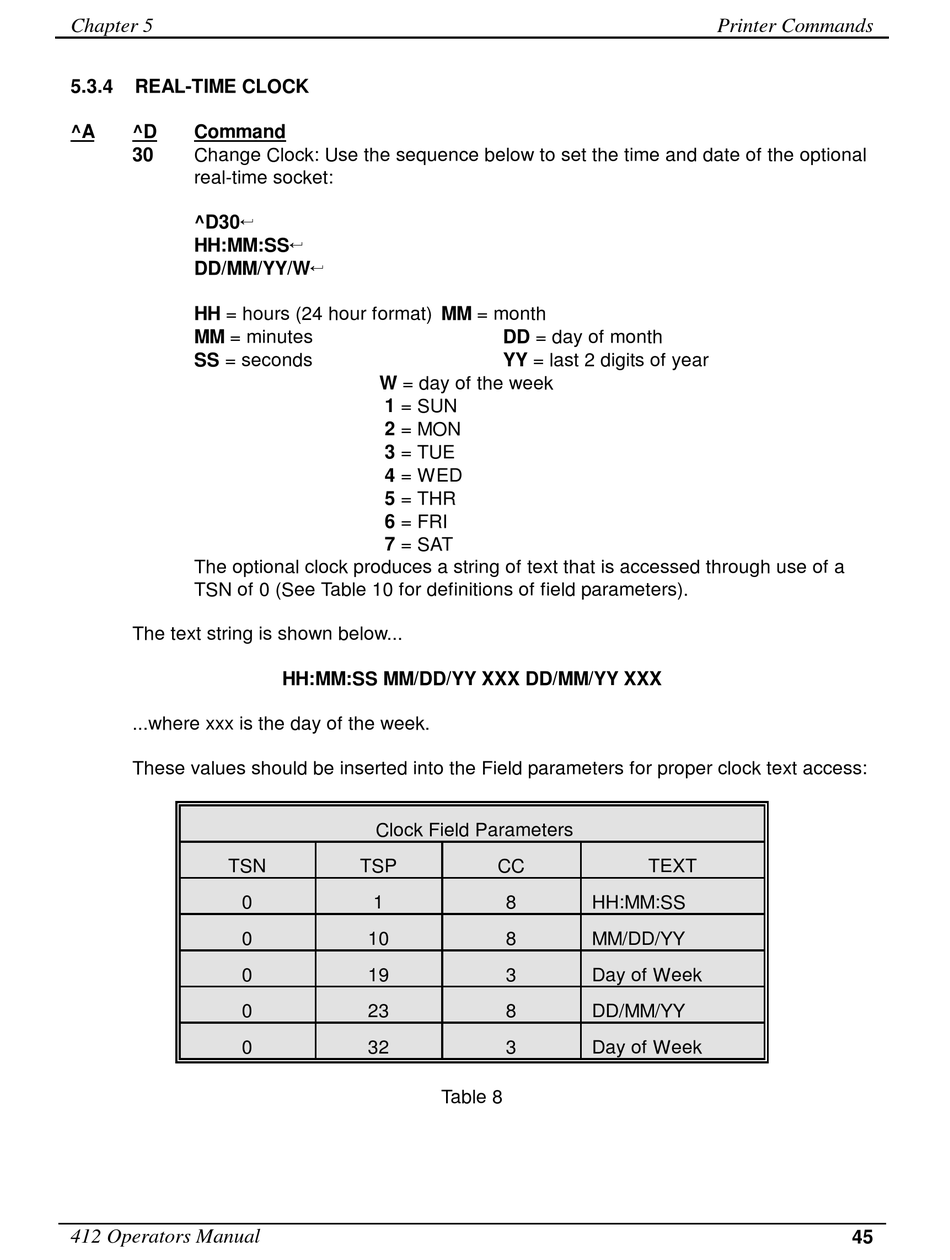

REAL-TIME CLOCK

^A ^D Command
30 Change Clock: Use the sequence below to set the time and date of the optional
real-time socket:
^D30 
HH:MM:SS 
DD/MM/YY/W 
HH = hours (24 hour format) MM = month
MM = minutes
SS = seconds
The optional clock produces a string of text that is accessed through use of a
TSN of 0 (See Table 10 for definitions of field parameters).
The text string is shown below...
...where xxx is the day of the week.
These values should be inserted into the Field parameters for proper clock text access:
TSN
0
0
0
0
0
412 Operators Manual
W = day of the week
1 = SUN
2 = MON
3 = TUE
4 = WED
5 = THR
6 = FRI
7 = SAT
HH:MM:SS MM/DD/YY XXX DD/MM/YY XXX

Clock Field Parameters

TSP
1
10
19
23
32
Table 8
DD = day of month
YY = last 2 digits of year
CC TEXT
8 HH:MM:SS
8 MM/DD/YY
3 Day of Week
8 DD/MM/YY
3 Day of Week
Printer Commands
45
