Printer Commands
5.3.4

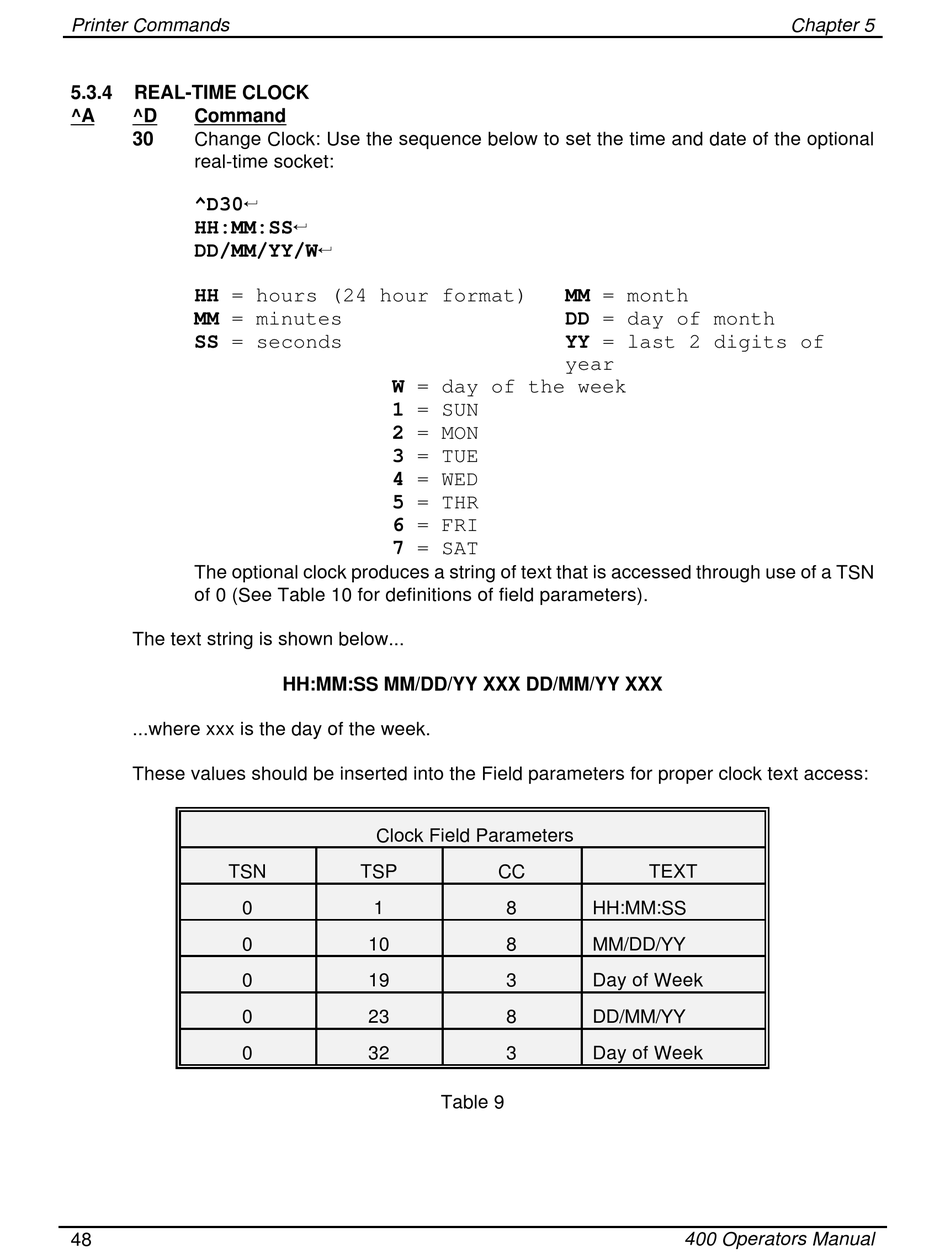

REAL-TIME CLOCK

^A ^D Command
30 Change Clock: Use the sequence below to set the time and date of the optional
real-time socket:
^D305
HH:MM:SS5
DD/MM/YY/W5
HH = hours (24 hour format)
MM = minutes
SS = seconds
The optional clock produces a string of text that is accessed through use of a TSN
of 0 (See Table 10 for definitions of field parameters).
The text string is shown below...
...where xxx is the day of the week.
These values should be inserted into the Field parameters for proper clock text access:
TSN
0
0
0
0
0
48
W = day of the week
1 = SUN
2 = MON
3 = TUE
4 = WED
5 = THR
6 = FRI
7 = SAT
HH:MM:SS MM/DD/YY XXX DD/MM/YY XXX

Clock Field Parameters

TSP
1
10
19
23
32
Table 9
MM = month
DD = day of month
YY = last 2 digits of
year
CC TEXT
8 HH:MM:SS
8 MM/DD/YY
3 Day of Week
8 DD/MM/YY
3 Day of Week
