Chapter 2
7. Use the feed button to align the labels. (Be sure to remove the labels as the are
peeled.)
Enable the peel-and-dispense mode using the ^A1^D98  .
8.
2.6

PRINT HEAD PRESSURE ADJUSTMENT

When using narrow media, it is possible to increase drive roller life by reducing the print head
pressure. To make the adjustment, simply turn the green adjustment knob (see Figure 5)
counter-clockwise. If thick tags are used, additional pressure may be added by turning the
knob clockwise.
412 Operators Manual

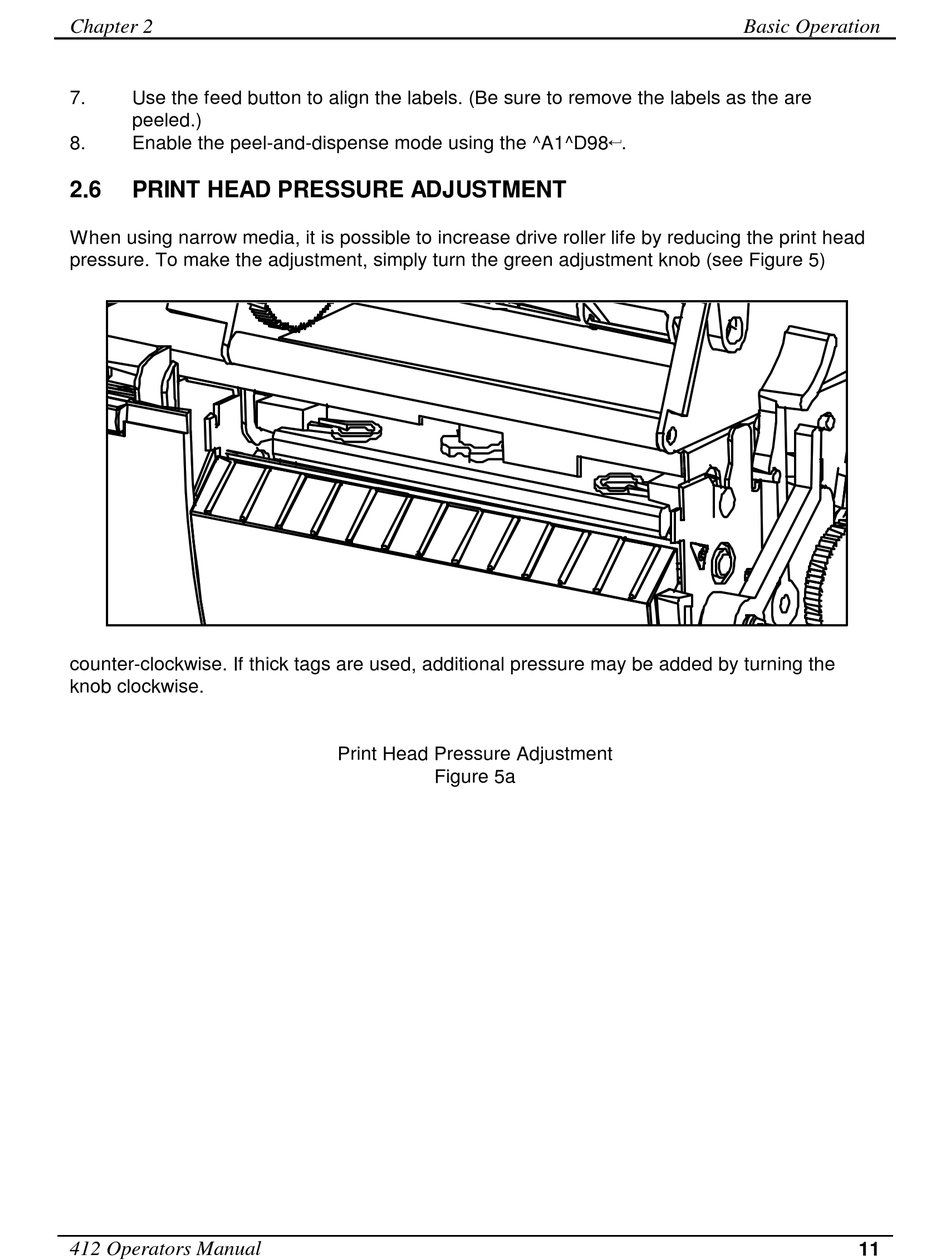

Print Head Pressure Adjustment

Figure 5a
Basic Operation
11
