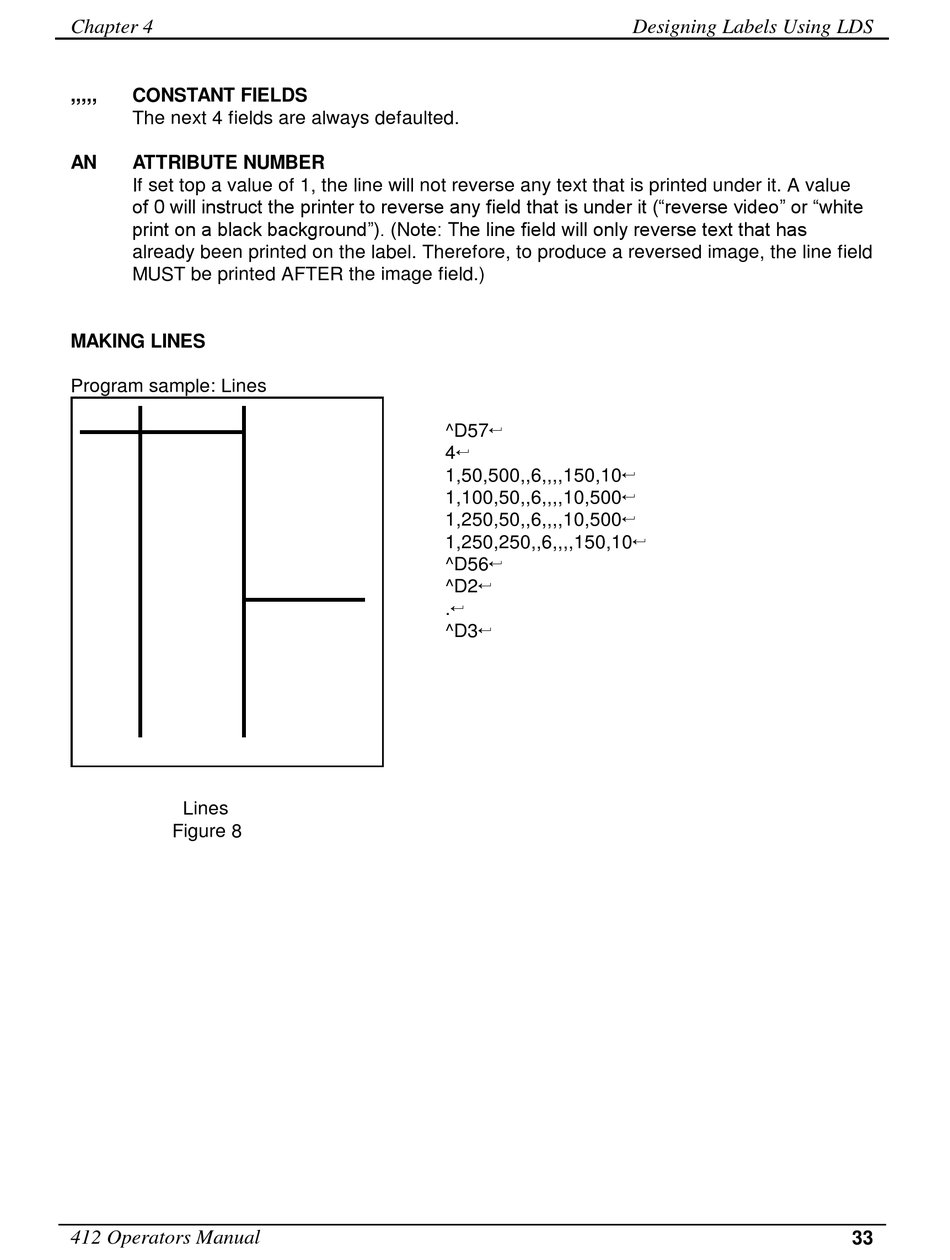

Microcom 412 Operator's Manual page 41

Chapter 4
,,,,, CONSTANT FIELDS
The next 4 fields are always defaulted.
AN ATTRIBUTE NUMBER
If set top a value of 1, the line will not reverse any text that is printed under it. A value
of 0 will instruct the printer to reverse any field that is under it ("reverse video" or "white
print on a black background"). (Note: The line field will only reverse text that has
already been printed on the label. Therefore, to produce a reversed image, the line field
MUST be printed AFTER the image field.)
MAKING LINES
Program sample: Lines
Lines
Figure 8
412 Operators Manual
^D57 
4 
1,50,500,,6,,,,150,10 
1,100,50,,6,,,,10,500 
1,250,50,,6,,,,10,500 
1,250,250,,6,,,,150,10 
^D56 
^D2 
. 
^D3 
Designing Labels Using LDS
33
