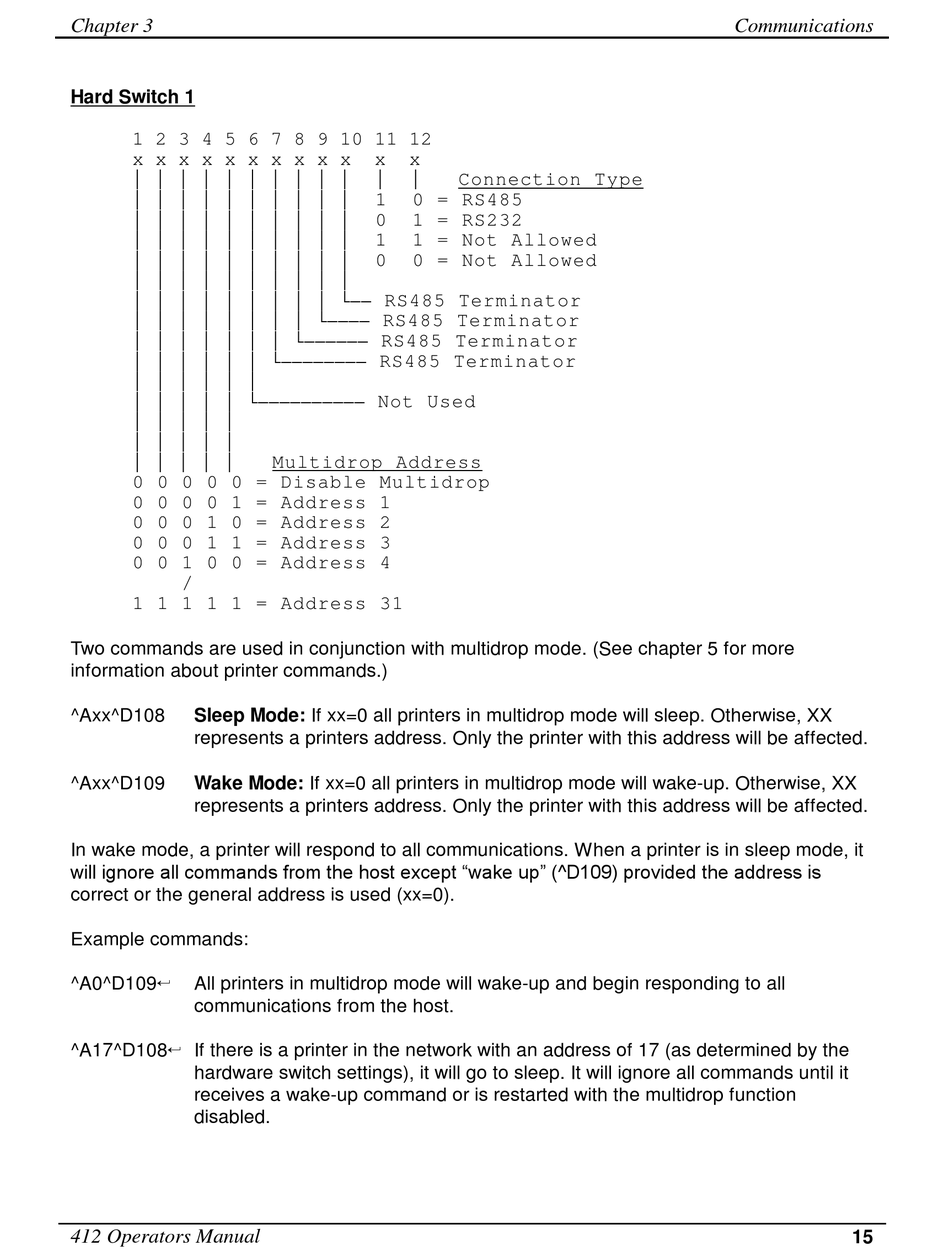

Hard Switch 1
1 2 3 4 5 6 7 8 9 10 11 12
x x x x x x x x x x
* * * * * * * * * *
* * * * * * * * * *
* * * * * * * * * *
* * * * * * * * * *
* * * * * * * * * *
* * * * * * * * * *
* * * * * * * * * .))
* * * * * * * * .))))
* * * * * * * .))))))
* * * * * * .))))))))
* * * * * *
* * * * * .))))))))))
* * * * *
* * * * *
* * * * *
0 0 0 0 0 = Disable Multidrop
0 0 0 0 1 = Address 1
0 0 0 1 0 = Address 2
0 0 0 1 1 = Address 3
0 0 1 0 0 = Address 4
/
1 1 1 1 1 = Address 31
Two commands are used in conjunction with multidrop mode. (See chapter 5 for more
information about printer commands.)
^Axx^D108 Sleep Mode: If xx=0 all printers in multidrop mode will sleep. Otherwise, XX
represents a printers address. Only the printer with this address will be affected.
^Axx^D109 Wake Mode: If xx=0 all printers in multidrop mode will wake-up. Otherwise, XX
represents a printers address. Only the printer with this address will be affected.
In wake mode, a printer will respond to all communications. When a printer is in sleep mode, it
will ignore all commands from the host except "wake up" (^D109) provided the address is
correct or the general address is used (xx=0).
Example commands:
^A0^D109 
All printers in multidrop mode will wake-up and begin responding to all
communications from the host.
^A17^D108  If there is a printer in the network with an address of 17 (as determined by the
hardware switch settings), it will go to sleep. It will ignore all commands until it
receives a wake-up command or is restarted with the multidrop function
disabled.
