Microcom 412 Operator's Manual page 49

Chapter 5
^A ^D COMMAND

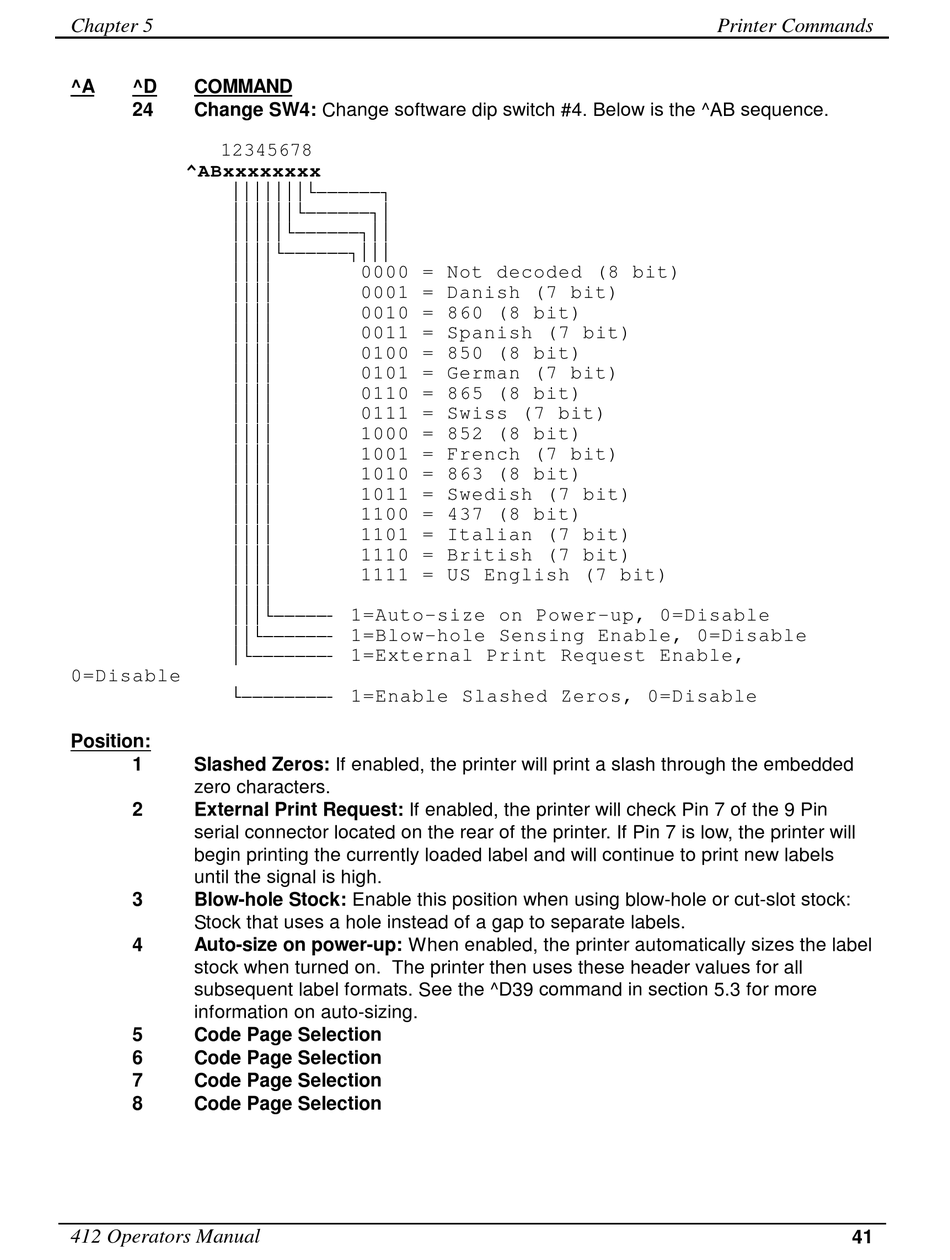

24 Change SW4: Change software dip switch #4. Below is the ^AB sequence.
12345678
^ABxxxxxxxx
*******.)))))),
******.)))))),*
*****.)))))),**
****.)))))),***
****
****
****
****
****
****
****
****
****
****
****
****
****
****
****
****
****
***.)))))Q
**.))))))Q
*.)))))))Q
0=Disable
.))))))))Q
Position:
1 Slashed Zeros: If enabled, the printer will print a slash through the embedded
zero characters.
2 External Print Request: If enabled, the printer will check Pin 7 of the 9 Pin
serial connector located on the rear of the printer. If Pin 7 is low, the printer will
begin printing the currently loaded label and will continue to print new labels
until the signal is high.
3 Blow-hole Stock: Enable this position when using blow-hole or cut-slot stock:
Stock that uses a hole instead of a gap to separate labels.
4 Auto-size on power-up: When enabled, the printer automatically sizes the label
stock when turned on. The printer then uses these header values for all
subsequent label formats. See the ^D39 command in section 5.3 for more
information on auto-sizing.
5 Code Page Selection
6 Code Page Selection
7 Code Page Selection
8 Code Page Selection
412 Operators Manual
0000 = Not decoded (8 bit)
0001 = Danish (7 bit)
0010 = 860 (8 bit)
0011 = Spanish (7 bit)
0100 = 850 (8 bit)
0101 = German (7 bit)
0110 = 865 (8 bit)
0111 = Swiss (7 bit)
1000 = 852 (8 bit)
1001 = French (7 bit)
1010 = 863 (8 bit)
1011 = Swedish (7 bit)
1100 = 437 (8 bit)
1101 = Italian (7 bit)
1110 = British (7 bit)
1111 = US English (7 bit)
1=Auto-size on Power-up, 0=Disable
1=Blow-hole Sensing Enable, 0=Disable
1=External Print Request Enable,
1=Enable Slashed Zeros, 0=Disable
Printer Commands
41
