Chapter 8

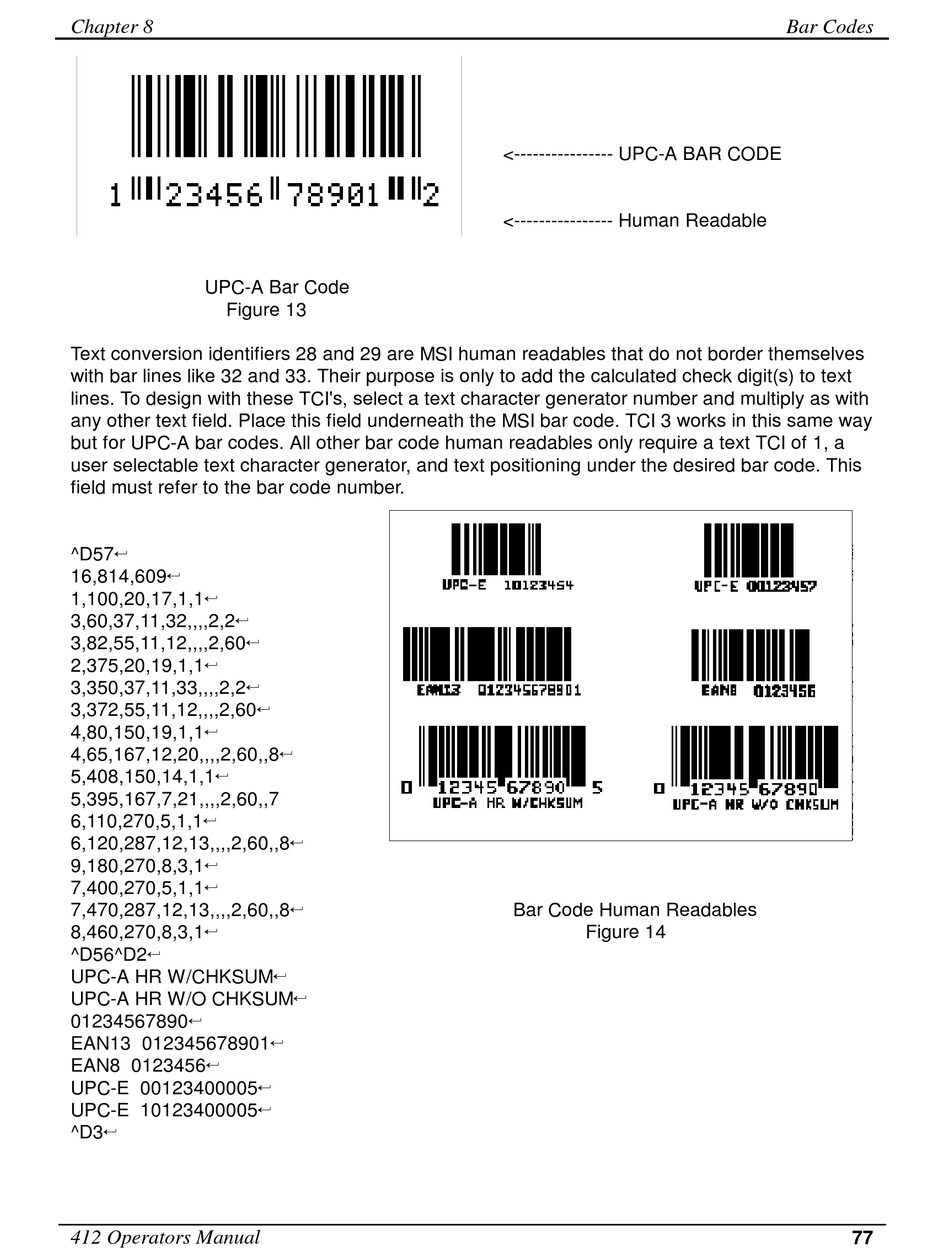

UPC-A Bar Code

Figure 13
Text conversion identifiers 28 and 29 are MSI human readables that do not border themselves
with bar lines like 32 and 33. Their purpose is only to add the calculated check digit(s) to text
lines. To design with these TCI's, select a text character generator number and multiply as with
any other text field. Place this field underneath the MSI bar code. TCI 3 works in this same way
but for UPC-A bar codes. All other bar code human readables only require a text TCI of 1, a
user selectable text character generator, and text positioning under the desired bar code. This
field must refer to the bar code number.
^D57 
16,814,609 
1,100,20,17,1,1 
3,60,37,11,32,,,,2,2 
3,82,55,11,12,,,,2,60 
2,375,20,19,1,1 
3,350,37,11,33,,,,2,2 
3,372,55,11,12,,,,2,60 
4,80,150,19,1,1 
4,65,167,12,20,,,,2,60,,8 
5,408,150,14,1,1 
5,395,167,7,21,,,,2,60,,7
6,110,270,5,1,1 
6,120,287,12,13,,,,2,60,,8 
9,180,270,8,3,1 
7,400,270,5,1,1 
7,470,287,12,13,,,,2,60,,8 
8,460,270,8,3,1 
^D56^D2 
UPC-A HR W/CHKSUM 
UPC-A HR W/O CHKSUM 
01234567890 
EAN13 012345678901 
EAN8 0123456 
UPC-E 00123400005 
UPC-E 10123400005 
^D3 
412 Operators Manual
<---------------- UPC-A BAR CODE
<---------------- Human Readable
Bar Code Human Readables
Figure 14
Bar Codes
77
