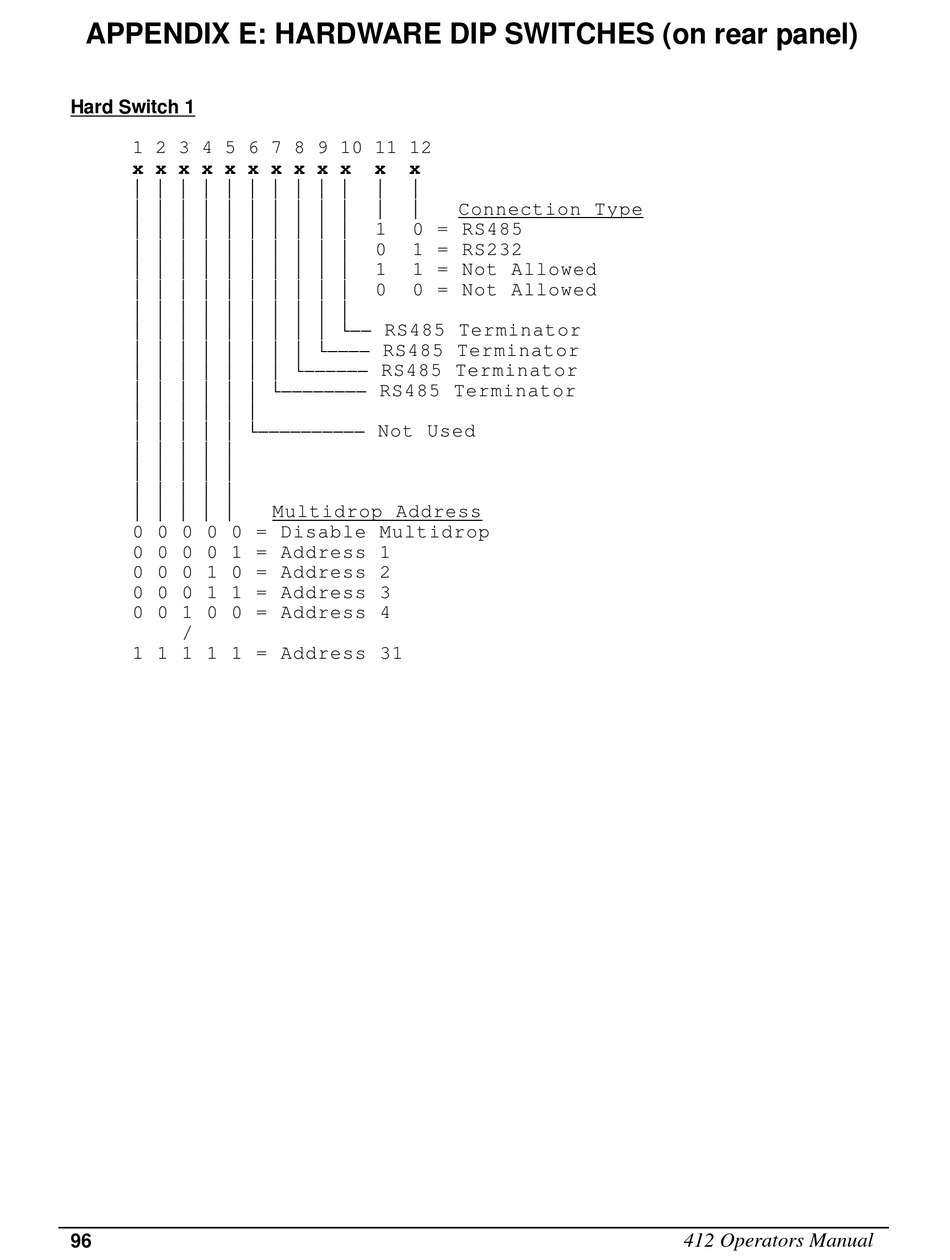

APPENDIX E: HARDWARE DIP SWITCHES (on rear panel)
Hard Switch 1
1 2 3 4 5 6 7 8 9 10 11 12
x x x x x x x x x x
* * * * * * * * * *
* * * * * * * * * *
* * * * * * * * * *
* * * * * * * * * *
* * * * * * * * * *
* * * * * * * * * *
* * * * * * * * * *
* * * * * * * * * .))
* * * * * * * * .))))
* * * * * * * .))))))
* * * * * * .))))))))
* * * * * *
* * * * * .))))))))))
* * * * *
* * * * *
* * * * *
* * * * *
0 0 0 0 0 = Disable Multidrop
0 0 0 0 1 = Address 1
0 0 0 1 0 = Address 2
0 0 0 1 1 = Address 3
0 0 1 0 0 = Address 4
/
1 1 1 1 1 = Address 31
96
x x
* *
* *
1 0 = RS485
0 1 = RS232
1 1 = Not Allowed
0 0 = Not Allowed
RS485 Terminator
RS485 Terminator
RS485 Terminator
RS485 Terminator
Not Used
Multidrop Address
Connection Type
412 Operators Manual
