Enabling Stereo Display - Intergraph Intense3D Wildcat 4110 User Manual

3. On the Intense3D Monitor Display Properties dialog box, click Configure Monitor to change
the display mode, select a monitor type, and change the resolution/refresh rate (see Figure 8).
Once you have made the changes you require, click OK to accept the new configuration and
dismiss the Configure Monitor dialog box. You are returned to the Intense3D Monitor
Display Properties dialog box.
4. Click OK on the Display Properties dialog box to accept the changes, or click Cancel to close
the dialog box without accepting any modifications.
5. Restart the workstation if you are prompted to do so. Most changes will take effect without
restarting.
NOTE See Appendix A, "Specifications," for a list of available monitor resolutions.
NOTE See "Enabling Stereo Display," for instructions on changing the Display Mode.

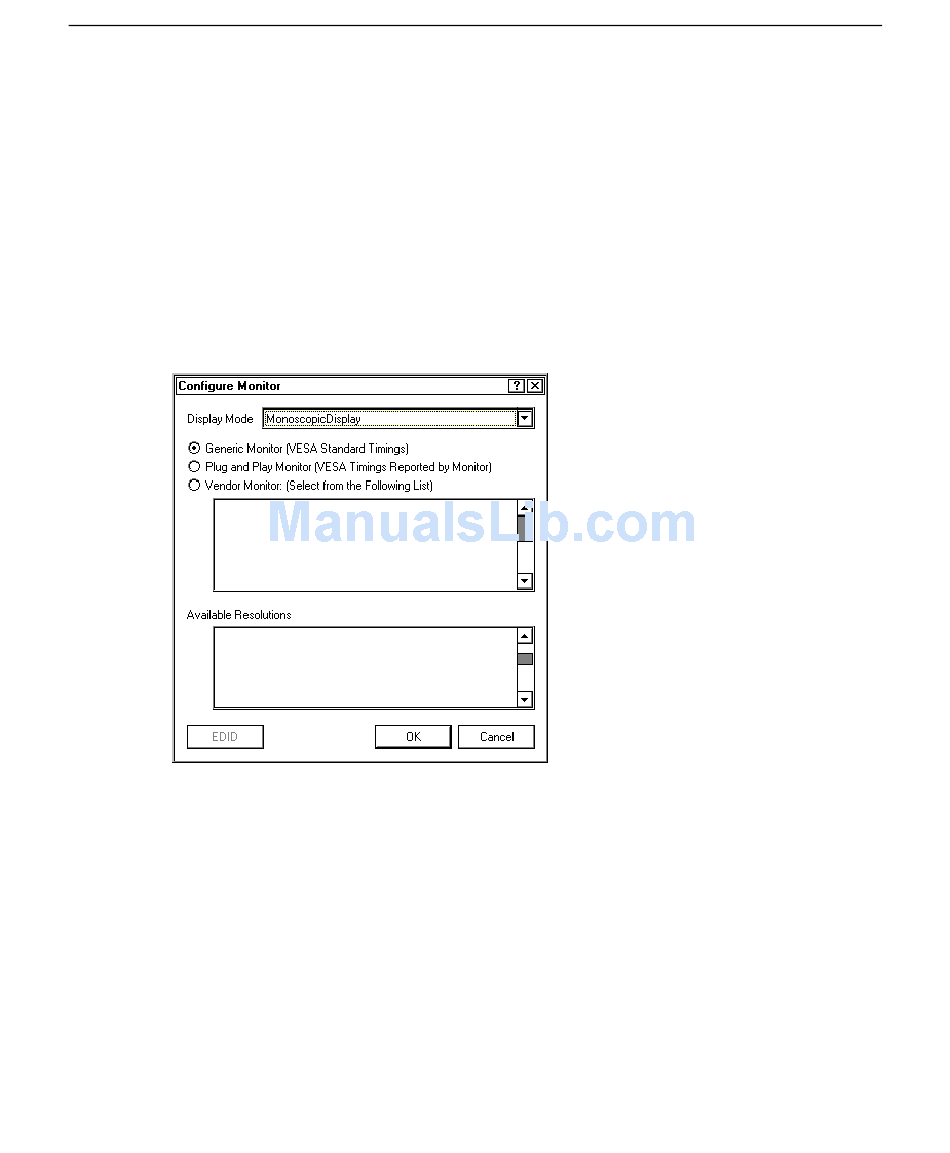

Figure 8. Configure Monitor

Enabling Stereo Display

If you connect a device to the stereo port on the Wildcat 4110 card, you must change the display
mode to view in stereo. See Figure 2 in Chapter 2, "Setup," for an illustration of the stereo output
port.
NOTE The Display Properties dialog box must be displayed. See "Configuring the Video
Display" in this chapter for instructions on activating the Display Properties dialog box
and selecting the Intense3D Monitor tab.
13
