NOTE Do not select the VGA version of the operating system. The video display runs in
VGA mode when the Intense3D Wildcat 4110 graphics driver is not running.
3. Click OK to close the System dialog box.

Check the Video Image

To check the video image:
1. If the Display Properties dialog box is not already displayed, go to the operating system Start
menu and select Settings/Control Panel/Display and click the Settings tab.
2. Click Test to test the display resolution.
3. Click OK to dismiss the Display Properties dialog box.
See Chapter 3, "Using the Video Card," for instructions on defining the display properties.

Connecting a Stereo Display Device

The following instructions apply only if you are connecting a stereo video display device to the
Wildcat 4110 video card.
To connect a stereo display device:
1. Connect one end of the stereo emitter cable to the input port on your stereoscopic display
device.
NOTE See the documentation delivered with your stereoscopic display device for
information on the connectors and proper cables.
2. Connect the other end of the stereo emitter cable to the stereo output port on the Wildcat 4110
video card (see Figure 4).
3. Configure the display settings to enable stereo display. See Chapter 3, "Using the Video
Card," for step-by-step instructions.

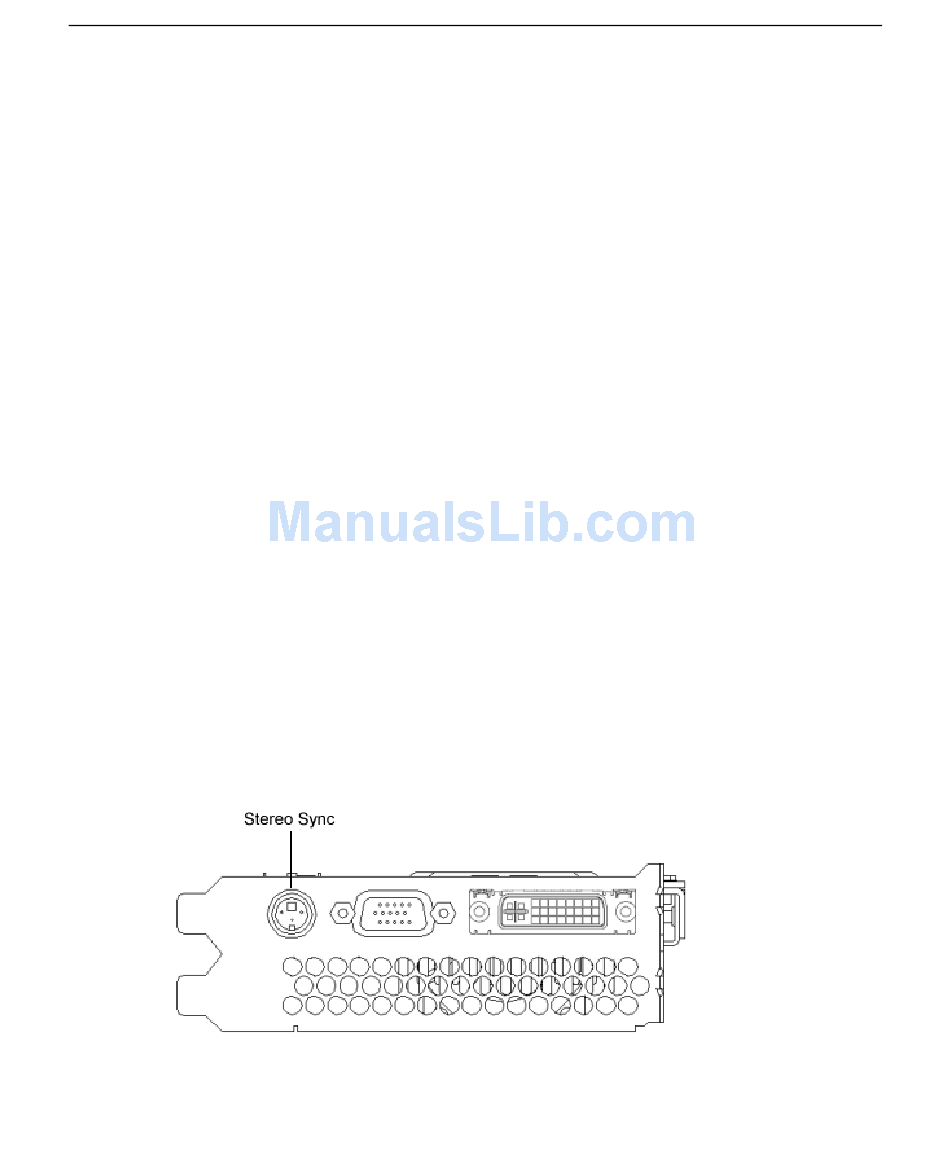

Figure 4. Wildcat 4110 Stereo Output Port
