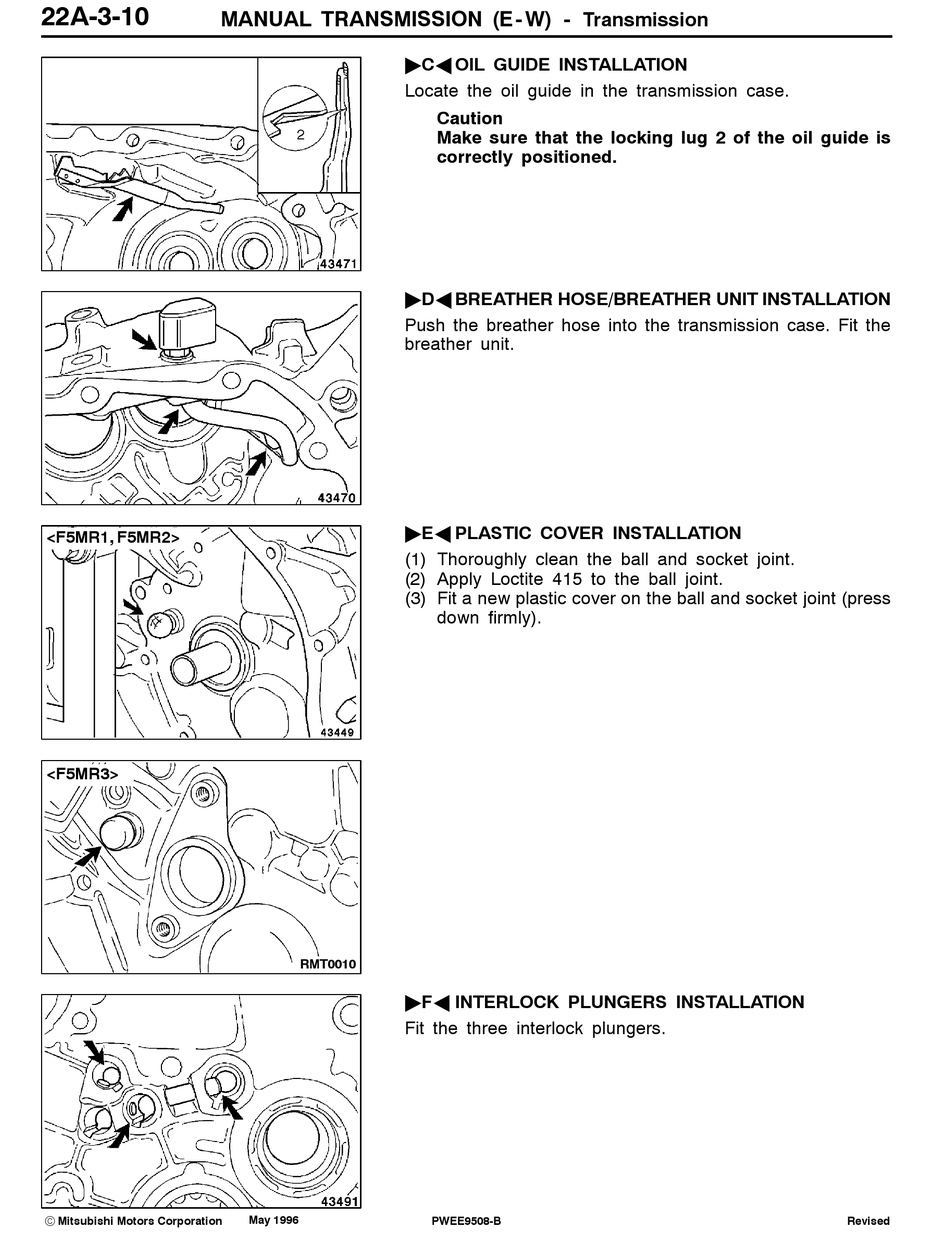

22A-3-10
MANUAL TRANSMISSION (E - W) -
<F5MR1, F5MR2>
<F5MR3>
E
E
Mitsubishi Motors Corporation Mitsubishi Motors Corporation
"CA OIL GUIDE INSTALLATION
Locate the oil guide in the transmission case.
2
"DA BREATHER HOSE/BREATHER UNIT INSTALLATION
Push the breather hose into the transmission case. Fit the
breather unit.
"EA PLASTIC COVER INSTALLATION
(1) Thoroughly clean the ball and socket joint.
(2) Apply Loctite 415 to the ball joint.
(3) Fit a new plastic cover on the ball and socket joint (press
RMT0010
"FA INTERLOCK PLUNGERS INSTALLATION
Fit the three interlock plungers.
May 1996
May 1995
Transmission
Caution
Make sure that the locking lug 2 of the oil guide is
correctly positioned.
down firmly).
PWEE9508-B PWEE9508 Revised
