Full Backup (Disabled Mode) - HP Data Protector A.06.11 Integration Manual

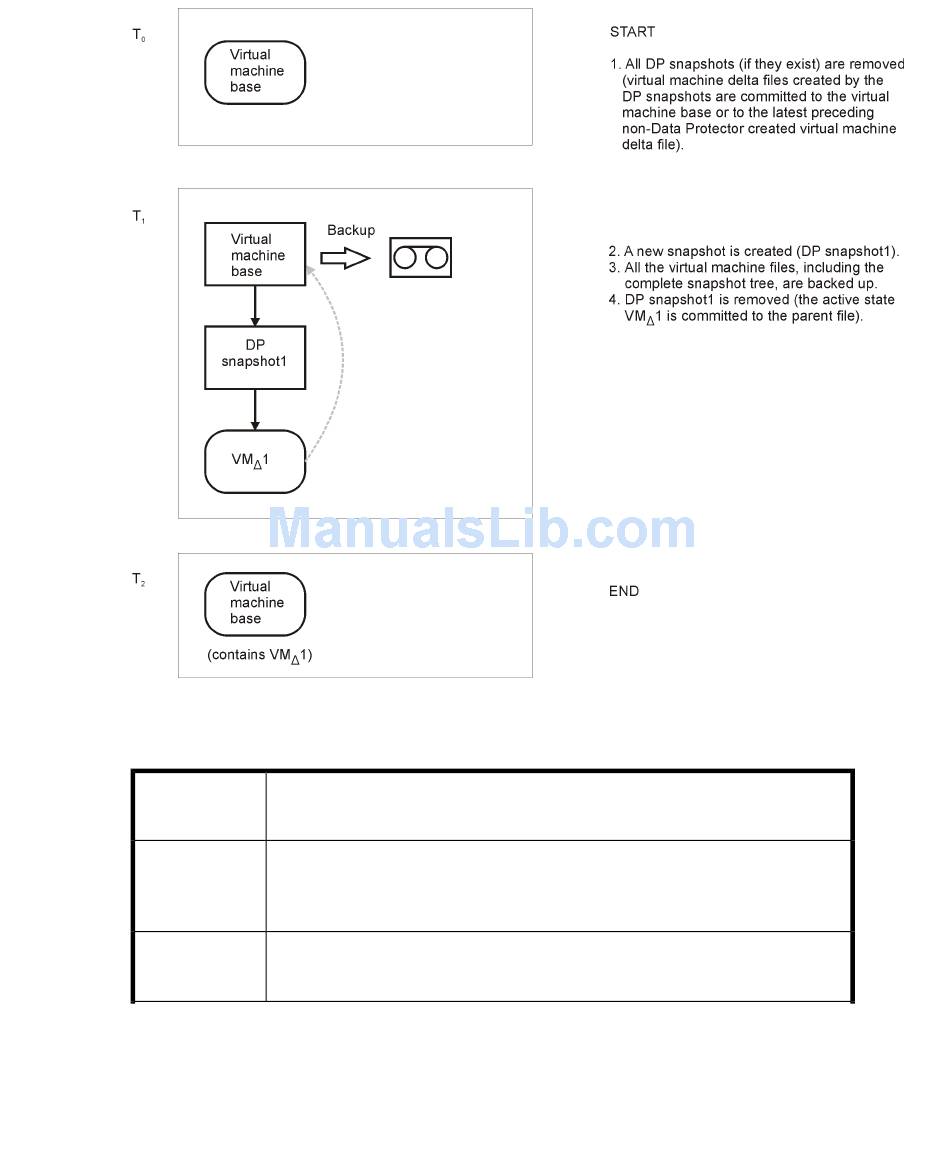

Figure 8 Full backup (disabled mode)
Table 6 Legend
Ti Boxes denoted by Ti show how the virtual machine snapshot tree changes
in time.
Virtual The rectangle denoted by Virtual machine base represents the virtual
machine base machine base or the last non-Data Protector created virtual machine delta
file on the active branch.
VMΔ A rectangle denoted by VMΔ represents a virtual machine delta file created
by a Data Protector snapshot.
