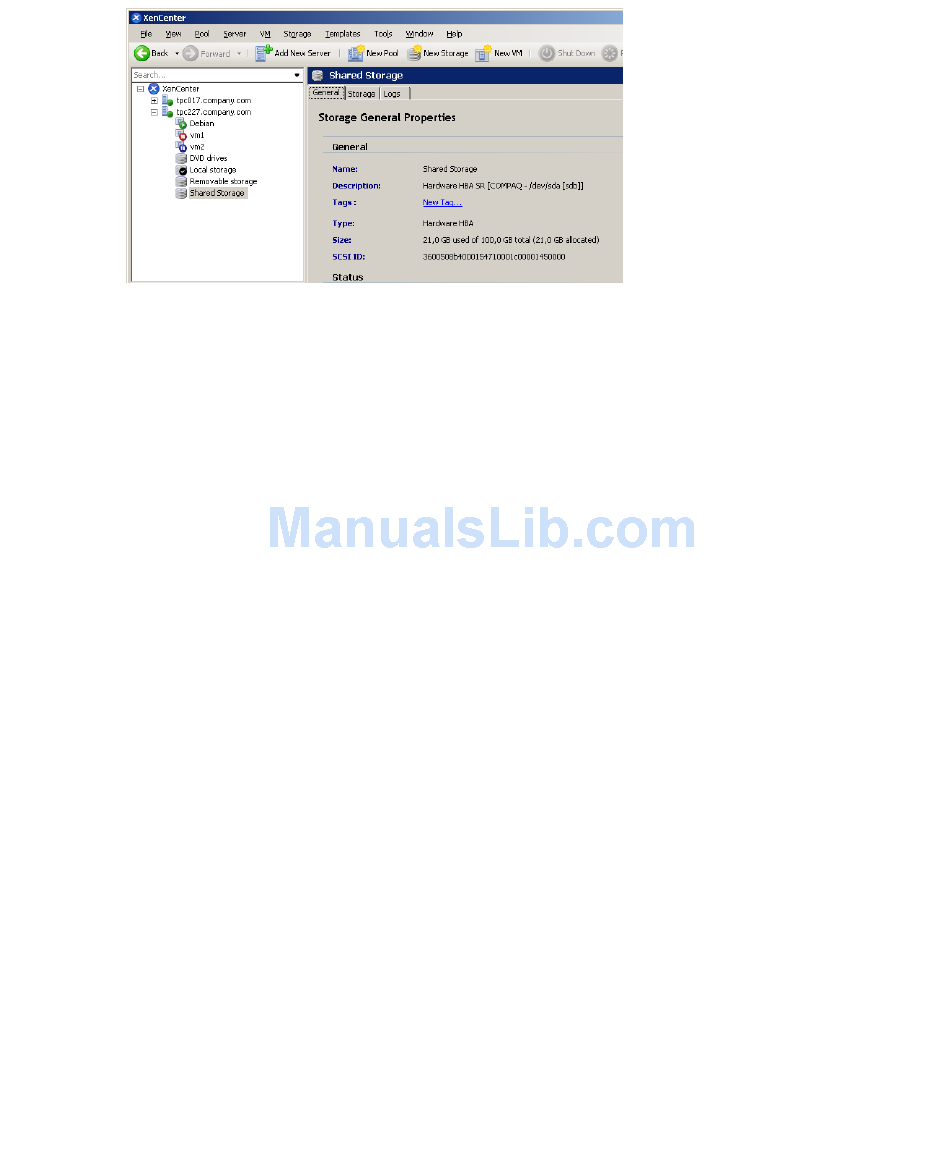

Figure 75 Available storage repositories
• Restore the Debian virtual machine, which was originally backed up using the
online mode, into the "Removable storage" storage repository. Do not create
a debug file.
Mode = "online"
url = "http://tpc227.company.com"
username = "user"
password = "myPassword"
vmName = ["Debian"]
debug = False
sr = "Removable storage"

Specifying a restore

1. In the Context List, click Restore.
2. In the Scoping Pane, expand Restore Sessions to display clients and then the
object backed up on those clients (The mount point containing the temporary
backup directory you created during the installation process).
3. Click the object to open the property pages.
4. In the Source tab, select the temporary backup directory to view the files available
for restore. Note that the filename formats indicate the mode of the backups in
the folder, as follows:
• offline or allOffline: servername_vmName.xva
• online or allOnline: servername_vmName_Snapshot.xva
Check the file format, to decide the mode of restore required, (it must be
equivalent to the type of backup). See
212 Integrating Citrix XenServer and HP Data Protector
Figure 76.
