Euphonix System 5 Post and Film Setup Guide

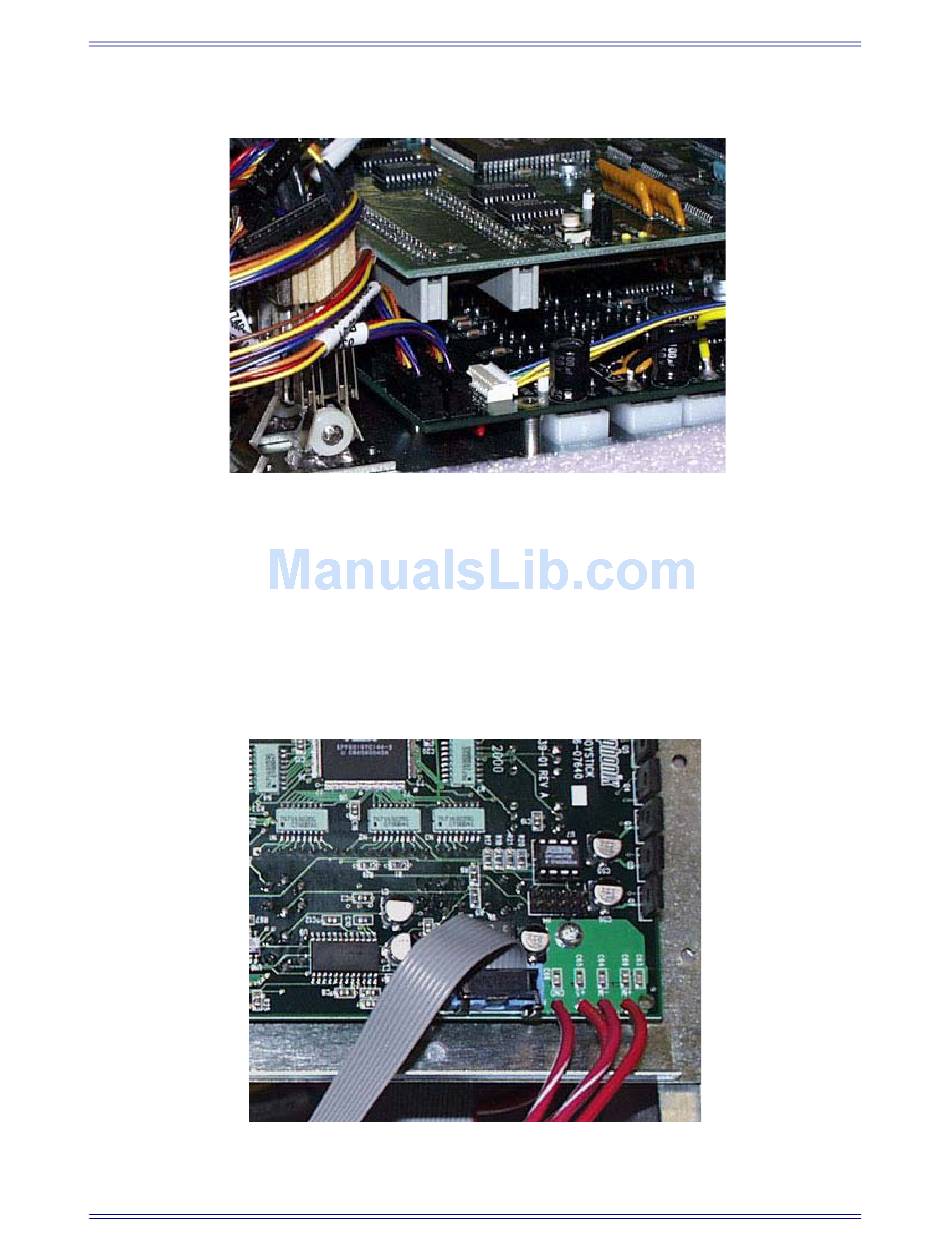

Connect the TFT backlight cable to the connector on the upper board of the film panel.

Joystick Panel Installation

Connect the 5-V power cables (red) from the Joystick to the header block on the bottom
of the module. Be sure to maintain correct polarity (red/white stripe is negative). See
the photo in Film Panel Installation. Connect the serial cables from the 9-pin connectors
on the rear panel of the CM403 to the headers on the joystick PCBs. Attach two serial
cables between the external CM403 9-pin joystick ports and the adjacent CM408 9-pin
serial ports.
9
