Euphonix System 5 Post and Film Setup Guide
Assign IP Address to Second Network Interface Card
Two network connections are displayed in the Network Connections window. One is
for your console's modules and pilots (typically named EuCon) the other for the con-
nection to your outside LAN.
1. Right-click on the LAN connection (NOT the EuCon connection) and choose
Properties.
The Studio LAN Properties dialog opens.
2. Double-click Internet Protocol (TCP/IP) in the properties dialog.
The TCP/IP Properties dialog opens.

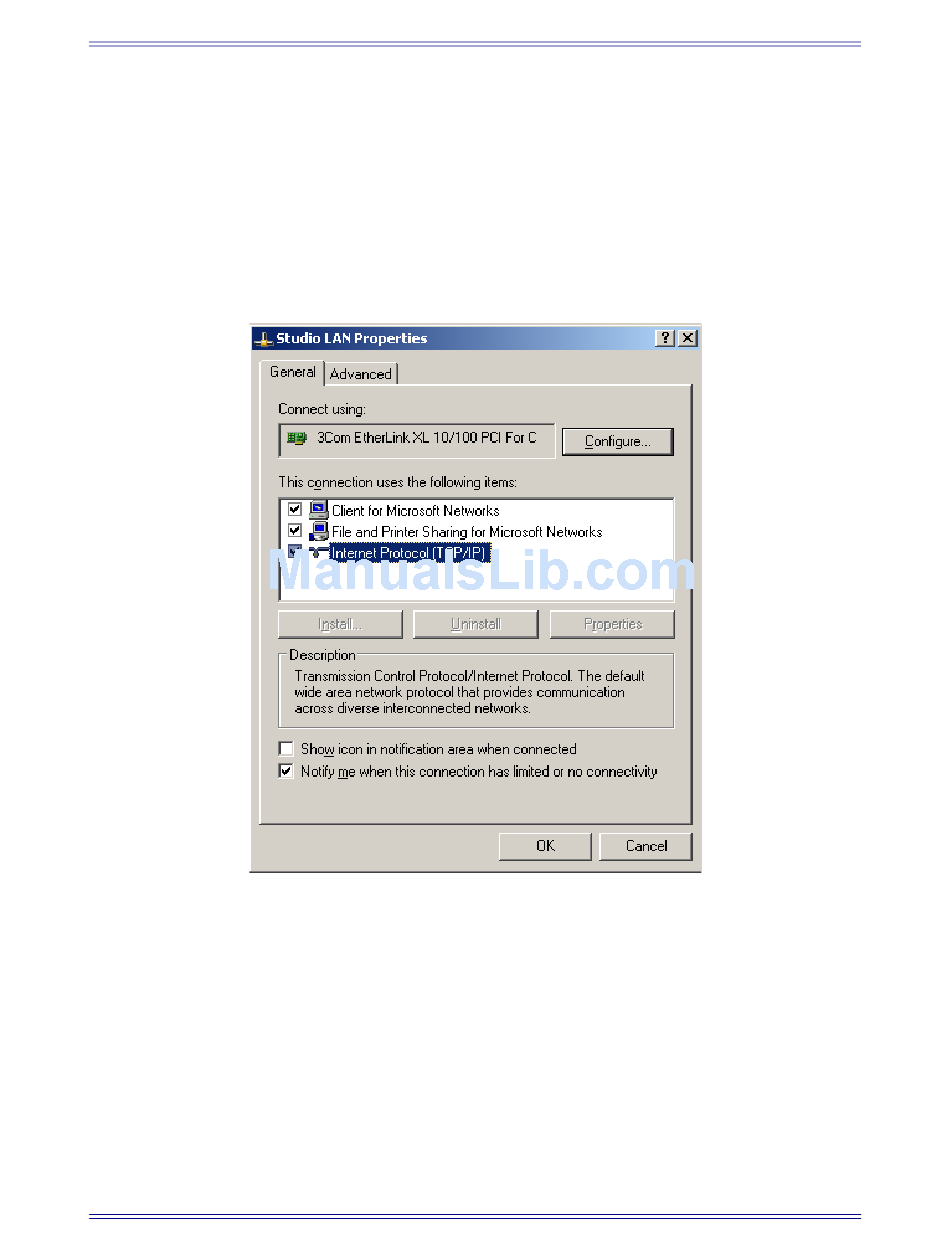

Figure 5 Studio LAN Properties dialog
