Euphonix System 5 Post and Film Setup Guide
CM403 Installation
CM403 Module
The CM403 uses the same form factor and architecture as a standard control module
(CM401, 402, 408). A single Ethernet port connects the module to the system via the
100 BaseT EuCon switch. The CM403 houses a TFT and fits three panels of the same
size: Film Post and the Dual-Joystick Panels. The Film Post panel can be placed above
or below the Joystick Panel depending on the preference of the operator. The user has
the option of placing their own motion controller, such as a JSK Engineering Inc. P2
Control Head or Soundmaster ION™, into the spare panel.

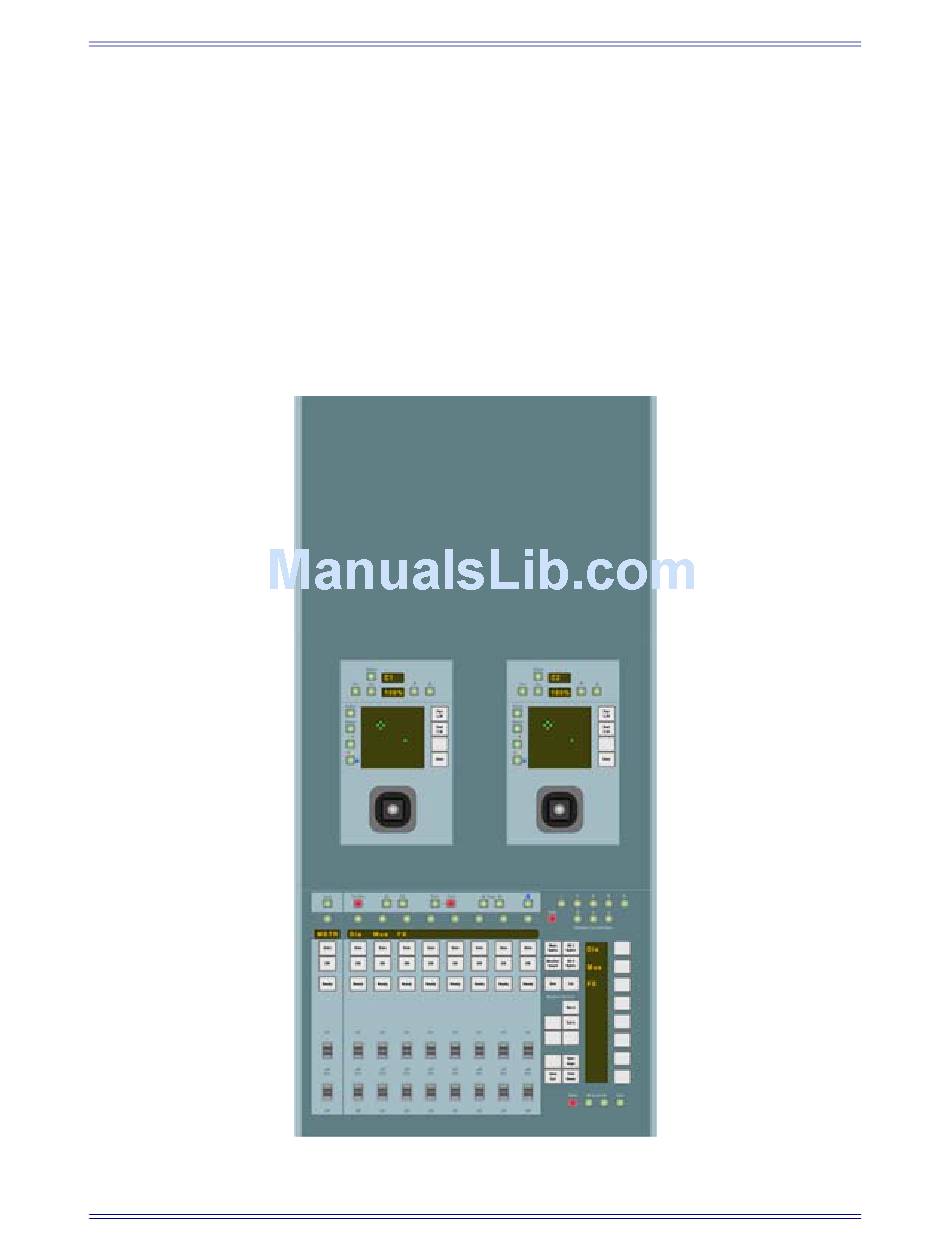

Figure 1 CM403 Module with Film Post Panel and Joysticks
