Euphonix System 5 Post and Film Setup Guide

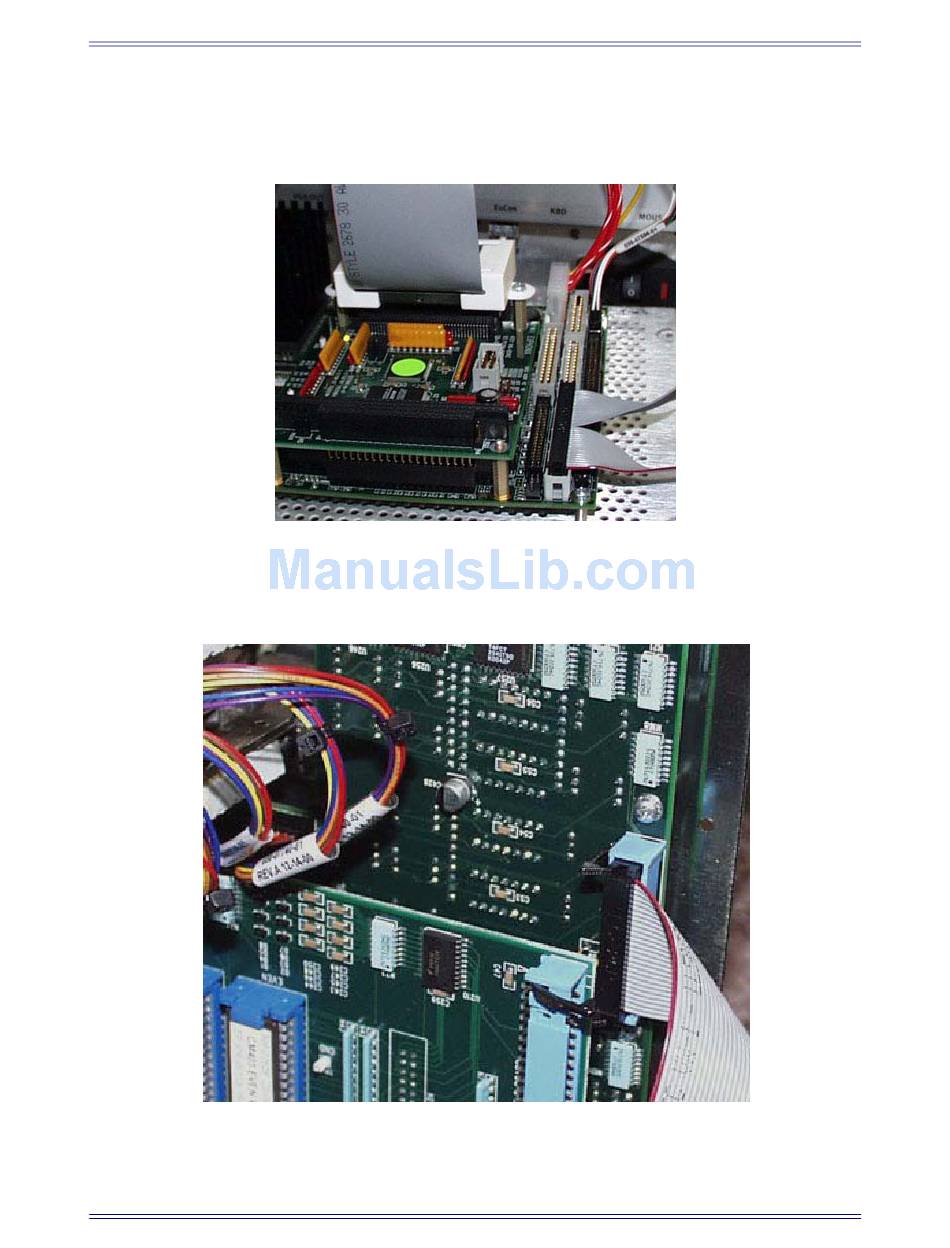

Connect the opposite end of the PC104 cable to the PC104 card on the SBC (Single
Board Computer) mounted on the rear ventilation panel of the module. Secure the RF
choke as shown above.
Connect the Euphonix Ext cable (25-pin D-sub on the rear panel) to H103 on the upper
board of the Film Panel.
8
