Setting the DIP-Switches

Figure 8 and
the VP-501xl:
DIP
1
2
Figure 9 and
the VP-502xl:
DIP
1
2
12
Operating the VP-501xl/VP-502xl
Table 4 describe the factory default DIP-switches setting for

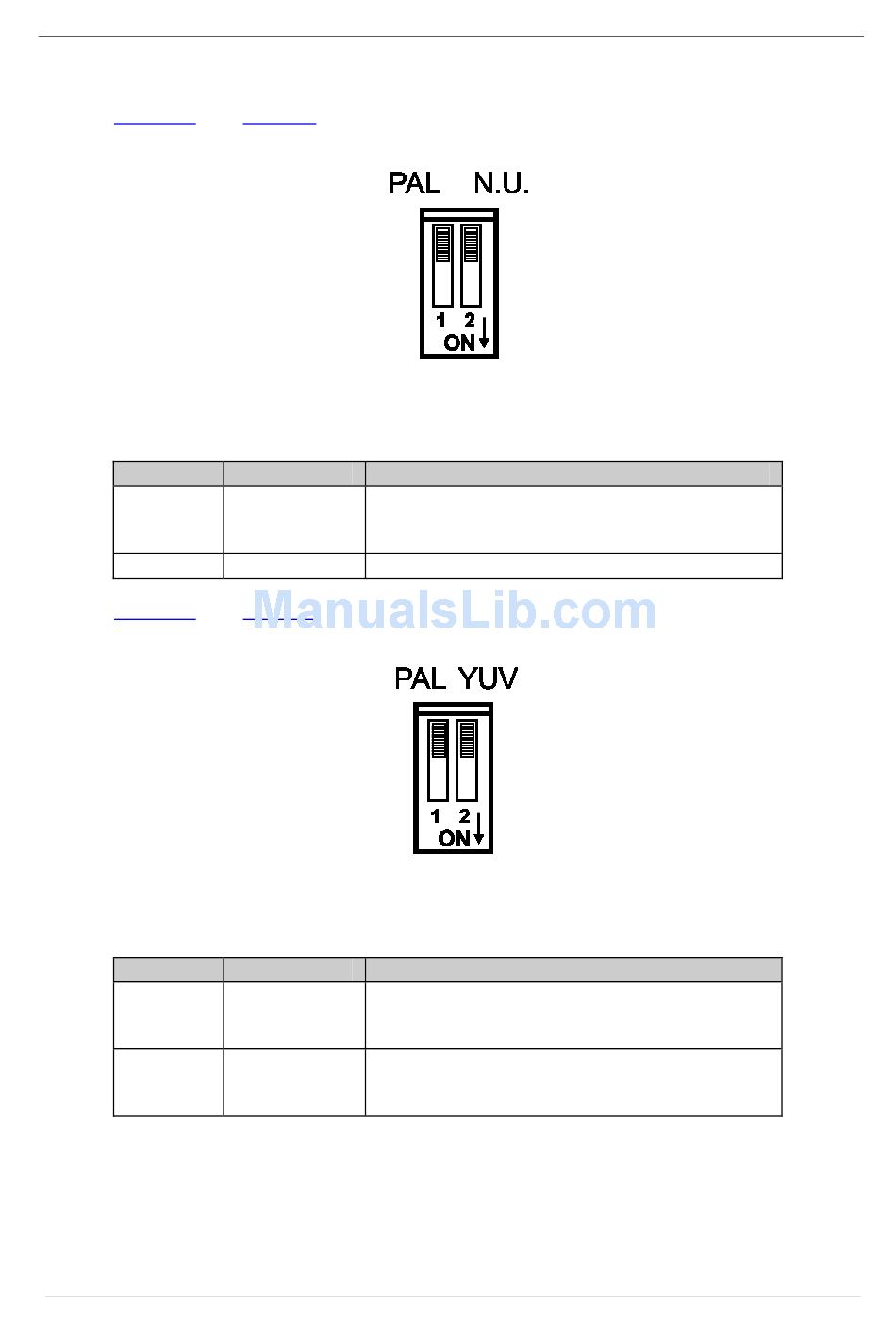

Figure 8: VP-501xl DIP-Switches

Table 4: VP-501xl DIP-Switch Settings

Function Description
PAL/NTSC Determines the video standard to be used:
Set to ON (down) to select PAL
Set to OFF (up) to select NTSC
N.U. Not Used
Table 5 describe the factory default DIP-switches setting for

Figure 9: VP-502xl DIP-Switches

Table 5: VP-502xl DIP-Switch Settings

Function Description
PAL/NTSC Determines the video standard to be used:
Set to ON (down) to select PAL
Set to OFF (up) to select NTSC
YUV/RGB Determines the input color space to be used:
Set to ON (down) to select YUV
Set to OFF (up) to select RGB
KRAMER: SIMPLE CREATIVE TECHNOLOGY
