Kramer VP-558 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

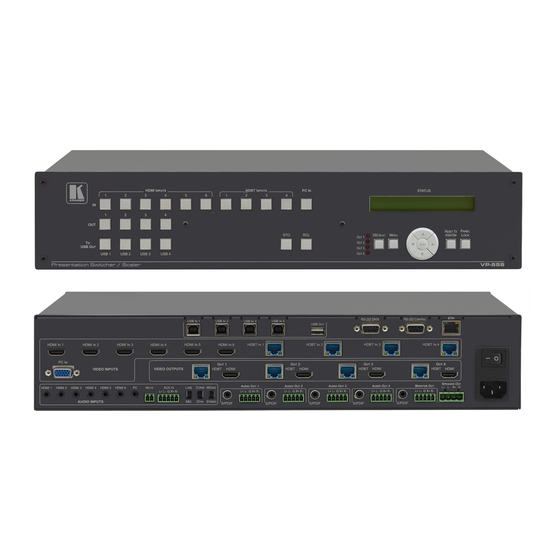

VP-558 Presentation Switcher Scaler
1 Power cord
Step 2: Get to know your VP-558
# Feature
1 TO USB OUT Buttons
2 OUT Buttons
3 IN Buttons
4 STO Button
5 RCL Button
6 OSD OUT LEDs
7 OSD SELECT Button
8 MENU Button
9 STATUS LCD Display

10 Navigation
Buttons



ENTER
11 RESET TO XGA/720p Button
12 PANEL LOCK Button
VP-558 Quick Start
VP-558 Quick Start Guide
This guide helps you and use your
INSTALL
Go to www.kramerav.com/downloads/VP-558
upgrades are available.
Function
Press a button to switch a USB input to the output (USB 1 – USB 4).
Press a button to switch an input to up to 4 outputs.
Press a button to switch an input to the output (HDMI inputs 1 – 6, HDBT inputs 1 – 4, and
PC In).
Press to store a configuration.
Press to recall a configuration.
Indicate where the OSD is displayed.
Press to select the output on which the OSD will be displayed (OUT 1 – OUT 4).
Press to display the OSD menu.
Displays the selected inputs switched to the outputs as well as front panel lock up
indication.
Press to decrease numerical values or select from several definitions.
When not in the OSD menu mode, press to reduce the output volume.
Press to move up the menu list values.
Press to increase numerical values or select from several definitions.
When not within the OSD menu mode, press to increase the output volume.
Press to move down the menu list.
Press to accept changes and change the SETUP parameters.
Press and hold for about 2 seconds to reset to XGA.
Press and hold for about 5 seconds to reset to 720p.
Press and hold for about 3 seconds to lock/unlock the front panel buttons.
VP-558 for the first time.
to download the latest user manual and check if firmware
1 Set of rack ears
4 Rubber feet
P/N: 2 9 0 0 - 3 0 0 8 6 2 QS
1 Quick start guide
Rev: 3
