Summary of Contents for Kramer VP-424
-
Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VP-424 HDMI to HDMI Scaler P/N: 2900-000765 Rev 2... -
Page 3: Table Of Contents
Defining the VP-424 HDMI to HDMI Scaler Connecting the VP-424 Controlling the VP-424 Using the OSD Menu Firmware Upgrade Technical Specifications Input Resolutions Support Figures Figure 1: VP-424 HDMI to HDMI Scaler Front Panel Figure 2: Connecting the VP-424 VP-424 – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer VP-424 HDMI to HDMI Scaler. This product, which incorporates HDMI™ technology, is ideal for: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VP-424 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview

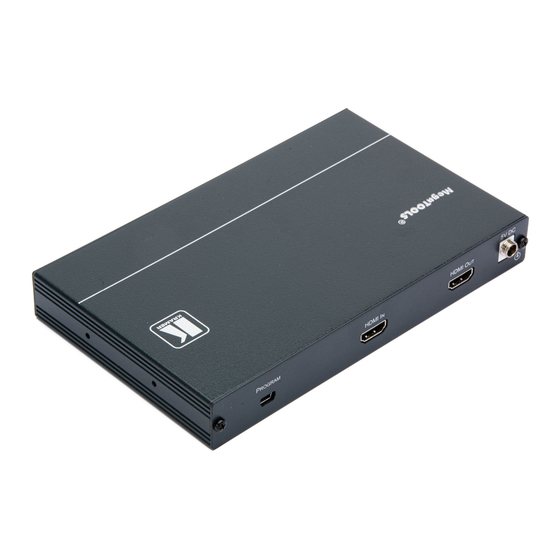

Overview The Kramer VP-424 HDMI to HDMI Scaler is a high-performance digital scaler for HDMI signals. It up- or down-scales HDMI signals to an HDMI output signal. The VP-424 HDMI to HDMI Scaler features: A maximum resolution of up to WUXGA and 1080p ... -
Page 8: Defining The Vp-424 Hdmi To Hdmi Scaler
Defining the VP-424 HDMI to HDMI Scaler This section defines the VP-424. Figure 1: VP-424 HDMI to HDMI Scaler Front Panel Feature Function ON LED Lights green when the unit is powered on INPUT LED Lights blue when an HDMI signal is detected on the input MENU Button Press to enter/exit the on-screen display (OSD) menu. -
Page 9: Connecting The Vp-424
Connecting the VP-424 Always switch off the power to each device before connecting it to your VP-424. After connecting your VP-424, connect its power and then switch on the power to each device. To connect the VP-424, as illustrated in the example in... -
Page 10: Controlling The Vp-424
Controlling the VP-424 The VP-424 can be controlled via the OSD menu (see Section 5.1) using the front panel MENU, ENTER, -, and + buttons (reset to XGA/720p buttons). Toggle the Freeze button to freeze the image on the display. - Page 11 To reset to XGA, press the FREEZE (+) and ENTER buttons simultaneously for about 2 seconds To reset to 720p, press the – and MENU buttons simultaneously for about 2 seconds INFORMATION Displays the input resolution, output resolution and the software version VP-424 - Controlling the VP-424...
-
Page 12: The Osd Menu
INFO DISPLAY Select the information shown on the screen during operation: ON - the information is shown permanently OFF - the information is not shown INFO - the information is shown for a few seconds VP-424 - Controlling the VP-424... -
Page 13: Firmware Upgrade
Firmware Upgrade To upgrade the VP-424 firmware: 1. Copy the new firmware from the Kramer Web site at http://www.kramerelectronics.com/support/downloads.asp to your computer. 2. Disconnect the power to the device. 3. Connect the USB cable to your PC. 4. Press and hold the menu button and plug in the power supply simultaneously. -
Page 14: Technical Specifications
Go to our Web site at http://www.kramerelectronics.com to access the list of resolutions Input Resolutions Support Resolution/Refresh Rate Resolution/Refresh Rate 480I/576I(NTSC/PAL) SXGA@(60) 480P/576P UXGA@60 720P@(60/50) WXGA@60(1280x800) 1080I@(60/50) WXGA@60(1366x768) 1080P@(60/50) WSXGA@60(1680x1050) 1080P@(24/25/30) WUXGA@60(1920x1200 RB) VGA@(60/72/75) WXGA+@60(1440x900) SVGA@(56/60/72/75) SXGA+@60(1400x1050) XGA@(60/70/75) VP-424 - Technical Specifications... - Page 15 VP-424 - Technical Specifications...
- Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
