- Page 1 K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL VP-501N UXGA Scan Converter P/N: 2900-300183 Rev 3...
-
Page 3: Table Of Contents
Technical Specifications Figures F igure 1: VP-501N UXGA Scan Converter F igure 2: Connecting a Computer Graphics Source to the VP-501N F igure 3: Connecting a High-Definition Source to the VP-501N F igure 4: Over-scanned and Under-scanned images F igure 5: Test Pattern Example F igure 6: VP-501N DIP-Switches VP-501N –... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer VP-501N away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
It converts the input up to UXGA (1600x1200) and HDTV (1080i) to composite and s−Video (Y/C) signals simultaneously in either PAL or NTSC formats. In particular, the VP-501N features: • User-friendly front panel buttons for easy control of ProcAmp functions,... -
Page 8: Defining The Vp-501N Uxga Scan Converter

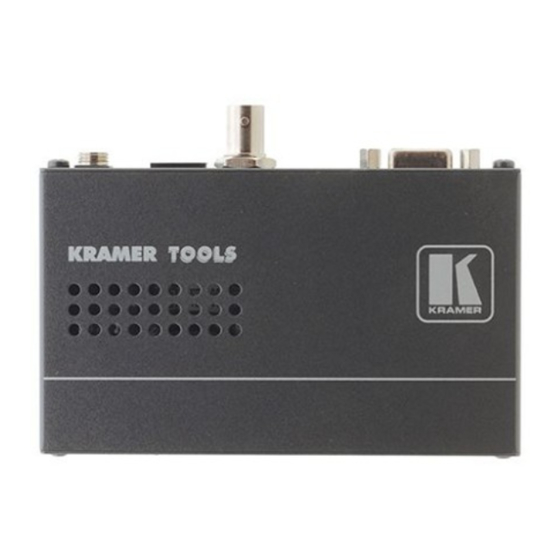

Defining the VP-501N UXGA Scan Converter Figure 1: VP-501N UXGA Scan Converter Feature Function 12V DC Power Connector +12V DC connector for powering the unit Y/C OUT 4-pin Connector Connects to the s-Video acceptor CV OUT BNC Connector Connects to the composite video acceptor... -
Page 9: Input Resolutions
Input Resolutions The VP-501N supports the following resolutions: Supported Input Resolutions Resolution (VGA) Refresh Rate (Hz) 640x480 800x600 1024x768 1152x864 1280x800 1280x1024 1280x1024 1366x768 1440x900 1400x1050 1600x1200 Resolution (Component) Refresh Rate (Hz) 1080i 1080i 1080p 1080p 720p 720p 480p 576p... -
Page 10: Connecting The Vp-501N Uxga Scan Converter
Figure To connect a high definition source, use a breakout cable such as the Kramer C-GM/3RVF. If you have a VGA to a 5BNC cable, use the RGB wires only. 2. Connect the Y/C OUT 4-pin connector to the Y/C acceptor (for example, an s-Video recorder) and/or the CV OUT BNC connector to the CV acceptor (for example, a composite video recorder). -
Page 11: F Igure 2: Connecting A Computer Graphics Source To The Vp-501N
Figure 2: Connecting a Computer Graphics Source to the VP-501N Figure 3: Connecting a High-Definition Source to the VP-501N VP-501N - Connecting the VP-501N UXGA Scan Converter... -
Page 12: Operating The Vp-501N Uxga Scan Converter
Operating the VP-501N UXGA Scan Converter You can operate your VP-501N via the front panel buttons that function as: • User-friendly front panel buttons for easy control of ProcAmp functions, flicker-reduction, image optimization, one-touch freezing, over-scanning and under-scanning • Menu buttons: MENU, ENTER, – and +; or •... -
Page 13: Adjusting The Display Via The Menu Buttons
Press the + or - buttons to move up or down the menu respectively and select a parameter within the sub-menu • Press ENTER to enter a sub-menu, save a setup and confirm factory reset VP-501N - Operating the VP-501N UXGA Scan Converter... -
Page 14: Using The Menu
Using the Test Patterns The Advanced menu lets you select Test Patterns and Save and Recall setups. The VP-501N stores seven test patterns. From the Advanced menu, you can select a test pattern (from 1 to 7) to show on screen. -
Page 15: Saving And Recalling
Saving and Recalling The VP-501N lets you save and recall up to four setups (from 0 to 3). The Save mode stores all the menu settings in one of the four Save setup numbers. Saving Through the Advanced Menu To save setup 1, for example: 1. -
Page 16: Setting The Dip-Switches
To recall a setup select Recall from the advanced menu and select the setup number you want to recall. Setting the DIP-Switches Figure 6 describes the factory default DIP-switches setting for the VP-501N: Figure 6: VP-501N DIP-Switches Function Description PAL/NTSC... -
Page 17: Technical Specifications
12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98", W, D, H) WEIGHT: 0.3kg (0.67lbs) approx. ACCESSORIES: Power supply, mounting bracket OPTIONS: 19" rack adapter RK-3T Specifications are subject to change without notice Go to our Web site at http://www.kramerelectronics.com to access the list of resolutions VP-501N - Technical Specifications... - Page 19 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
