Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VP-505 3G HD-SDI to Video Scan Converter P/N: 2900-300013 Rev 3... -
Page 3: Table Of Contents
Operating the VP-505 3G HD-SDI to Video Scan Converter Using the Front Panel Buttons Using the OSD Technical Specifications Figures Figure 1: VP-505 3G HD-SDI to Video Scan Converter Figure 2: Connecting the VP-505 3G HD-SDI to Video Scan Converter VP-505 – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer VP-505 3G HD-SDI to Video Scan Converter, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VP-505 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The Kramer VP-505 3G HD-SDI to Video Scan Converter is a high-quality scan converter for down-scaling SDI, HD-SDI and 3G HD-SDI signals to PAL or NTSC video. The VP-505 features: A maximum data rate of 3Gbps An SDI input ... -
Page 8: Defining The Vp-505 3G Hd-Sdi To Video Scan Converter

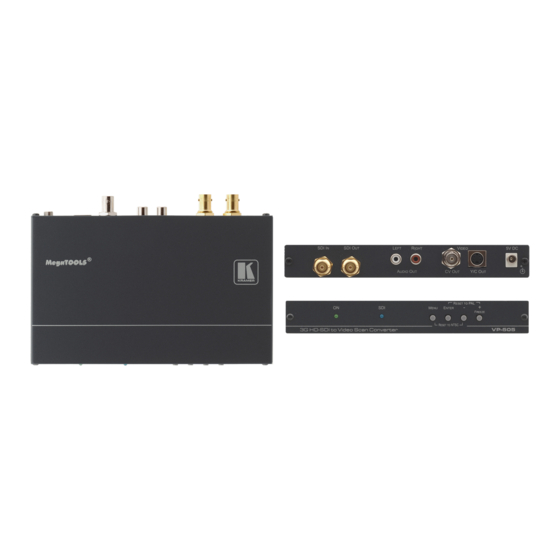

Defining the VP-505 3G HD-SDI to Video Scan Converter This section defines the VP-505. Figure 1: VP-505 3G HD-SDI to Video Scan Converter Feature Function ON LED Lights green when the unit is powered on SDI LED Lights blue when an SDI signal is detected on the input MENU Button Press to display the OSD (On-screen Display) menu. -
Page 9: Connecting The Vp-505
Connecting the VP-505 Always switch off the power to each device before connecting it to your VP-505. After connecting your VP-505, connect its power and then switch on the power to each device. To connect the VP-505 as illustrated in the example in Figure 1. -
Page 10: Figure 2: Connecting The Vp-505 3G Hd-Sdi To Video Scan Converter
Figure 2: Connecting the VP-505 3G HD-SDI to Video Scan Converter VP-505 - Connecting the VP-505... -
Page 11: Operating The Vp-505 3G Hd-Sdi To Video Scan Converter
Operating the VP-505 3G HD-SDI to Video Scan Converter The VP-505 is operated directly via the front panel buttons (see Section 5 .1) and via the OSD menu (see Section 5 .2). Using the Front Panel Buttons During normal operation (without the OSD), the front panel buttons perform in the following manner: ... - Page 12 6. Press the + button to increase the value to 42. 7. Press ENTER to set the value. G OFFSET is highlighted in green. 8. To exit normal operation, press MENU. VP-505 - Operating the VP-505 3G HD-SDI to Video Scan Converter...
-
Page 13: The Main Menu
Sets the output red signal level offset 0-63 G OFFSET Sets the output green signal level offset 0-63 B OFFSET Sets the output blue signal level offset 0-63 EXIT Exits the Color submenu VP-505 - Operating the VP-505 3G HD-SDI to Video Scan Converter... -
Page 14: Technical Specifications
10% to 90%, RHL non-condensing DIMENSIONS: 18.8cm x 11.3cm x 2.6cm (7.4” x 4.5” x 1”) W, D, H WEIGHT: 0.57kg (1.26lbs) approx. ACCESSORIES: Power supply OPTIONS: RK-T2B 19" rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com VP-505 - Technical Specifications... - Page 15 VP-505 - Technical Specifications...
- Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
