Summary of Contents for Kramer VP-413
- Page 1 Kramer Electronics, Ltd. USER MANUAL Models: 413, Video to WXGA Scaler 414, Video to WXGA / HD Scaler 415, Video to WXGA / DVI Scaler 416, Video to DVI-I / HD Scaler...
-
Page 2: Table Of Contents
Table 3: VP-414 Video to WXGA / HD Scaler Features Table 4: VP-415 Video to WXGA Scaler Features Table 5: VP-416 Video to WXGA / DVI-I / HD Scaler Features Table 6: Technical Specifications of the VP-413, VP-414, VP-415 and VP-416 Contents... -
Page 3: Introduction
VP-413 Video to WXGA Scaler, and/or VP-414 Video to WXGA / HD Scaler, and/or VP-415 Video to WXGA / DVI-I Scaler, and/or VP-416 Video to WXGA / HD / DVI-I Scaler Power adapter: 5V DC Input for VP-413 and VP-415; 12V DC Input for VP-414 and VP-416 This user manual... - Page 4 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 5 Plasma Display Getting Started s-Video Player Signal PIN # Composite Video Player...
-
Page 6: Overview
Warning before installing or removing device or servicing unit. 1 5V DC for the VP-413 and the VP-415; 12V DC for the VP-414 and the VP-416 2 Includes: VGA, SVGA, XGA and WXGA 3 Includes: 480p, 576p, 720p and 1080i (a pseudo 1080i format is used in this case, such as a progressive scan 540p. Note that... -
Page 7: Your Scaler

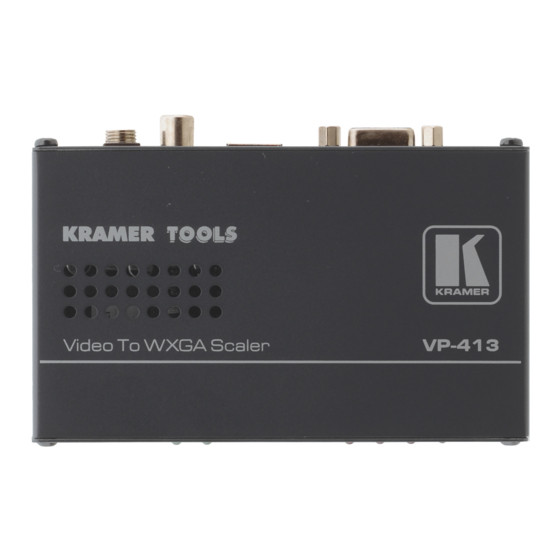

Your Scaler This section describes the VP-413 (see section 4.1), the VP-414 (see section 4.2), the VP-415 (see section 4.3) and the VP-416 (see section 4.4). 4.1 Your VP-413 Video to WXGA Scaler The VP-413 cover is perforated to prevent chip overheating. Figure 1 and... -
Page 8: Your Vp-414 Video To Wxga / Hd Scaler
Illuminates when VGA or 480p resolution is selected Illuminates when SVGA or 576p resolution is selected Illuminates when XGA or 720p resolution is selected Illuminates when WXGA or 1080i resolution is selected KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Your Vp-415 Video To Wxga / Dvi Scaler
4.3 Your VP-415 Video to WXGA / DVI Scaler Figure 3 and Table 4 define the VP-415 Video to WXGA / DVI Scaler: Figure 3: VP-415 Video to WXGA Scaler Table 4: VP-415 Video to WXGA Scaler Features Feature 5V DC CV IN RCA Input Connector Y/C IN 4p Input Connector DVI-I OUT DVI Connector... -
Page 10: Your Vp-416 Video To Dvi-I / Hd Scaler
Illuminates when VGA or 480p resolution is selected Illuminates when SVGA or 576p resolution is selected Illuminates when XGA or 720p resolution is selected Illuminates when WXGA or 1080i resolution is selected KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 11: Connecting The Scalers
5. Press the OUTPUT RES. button to select the desired resolution. 1 Switch OFF the power on each device before connecting it to your VP-413. After connecting your VP-413, switch on its power and then switch on the power on each device... -
Page 12: Connecting The Vp-414
3 Note that the HD resolutions are in YUV colorspace 4 The connection is not illustrated in Figure 6 Connecting the Scalers the contact closure remote control PINS (see section 5.5). Composite Video Player s-Video Player Figure 6: Connecting the VP-414 KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 13: Connecting The Vp-415
5.3 Connecting the VP-415 To connect the VP-415, as the example in Figure 7 illustrates, do the following 1. Connect a composite video source to the CV IN RCA connector and/or an s-Video source to the Y/C 4p input connector. 2. -
Page 14: Connecting The Vp-416
3 Note that the HD resolutions are in YUV colorspace 4 The connection is not illustrated in Figure 6 Connecting the Scalers the contact closure remote control PINS (see section 5.5). Composite Video Player s-Video Player Figure 8: Connecting the VP-416 KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 15: Connecting The Contact Closure Remote Control Pins
5.5 Connecting the Contact Closure Remote Control PINs The REMOTE INPUT SELECTOR lets you select the required input via the contact closure remote control pins. For example, you may override the presently routed input by using the remote control contact closure. To do so, connect momentarily the appropriate input pin on the REMOTE terminal block connector to the G (Ground) pin, as Figure 9 illustrates. -
Page 16: Technical Specifications
VP-415: 5V DC, 850mA (typical) VP-416: 12V DC, 500mA (typical) DIMENSIONS: VP-413, VP-415: 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98", W, D, H) VP-414, VP-416: 18.8cm x 11.4cm x 2.4cm (7.41" x 4. 5" x 0.95", W, D, H) WEIGHT: VP-413, VP-415: 0.3 kg. - Page 17 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 18 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
