Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VP-506 UXGA Scan Converter P/N: 2900-300098 Rev 5... -
Page 3: Table Of Contents
Using the Menu Using Test Patterns Saving and Recalling Technical Specifications Figures Figure 1: VP-506 DVI/UXGA Scan Converter Figure 2: Connecting the VP-506 DVI/UXGA Scan Converter Figure 3: Overscanned and Underscanned images Figure 4: Test Pattern Number 1 VP-506 – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VP-506 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The Kramer VP-506 is a high-quality scan converter for down-scaling computer graphics (VGA up to UXGA) to PAL or NTSC video. It supports VGA up to UXGA, as well as the HD resolutions: 480p, 576p, 720p and 1080p. The VP-506 features: ... -
Page 8: Defining The Vp-506 Dvi/Uxga Scan Converter

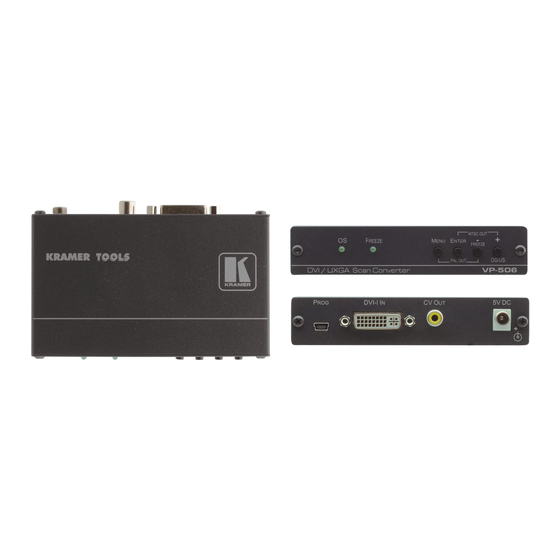

Defining the VP-506 DVI/UXGA Scan Converter This section defines the VP-506. Figure 1: VP-506 DVI/UXGA Scan Converter Feature Function OS LED Lights when the image is overscanned The displayed image, when set correctly, is larger than the screen FREEZE LED... -
Page 9: Connecting The Vp-506
Connecting the VP-506 Always switch off the power to each device before connecting it to your VP-506. After connecting your VP-506, connect its power and then switch on the power to each device. To connect your VP-506 as the example in... -
Page 10: Operating The Vp-506
Operating the VP-506 You can operate your VP-506 via the front panel buttons, which are dual-purpose buttons (except for the MENU button) that function as: Quick-set buttons: FREEZE and OS/US; or Menu buttons: MENU, ENTER, – and + This section describes how to: ... -
Page 11: Adjusting The Display Via The Menu Buttons
Menu appears on the screen. Use the menu buttons to scroll through the menu and make the required adjustments. The following table defines the menu items. The menu times-out after 20 seconds of inactivity. VP-506 - Operating the VP-506... -
Page 12: Using Test Patterns
Using Test Patterns The Advanced menu lets you select Test Patterns and Save and Recall setups. The VP-506 stores nine test patterns. From the Advanced menu, you can select a test pattern (from 1 to 7) to show on screen. -
Page 13: Saving And Recalling
4) to appear when there is no input connected to the unit. Saving and Recalling The VP-506 lets you save and recall up to four setups (from 0 to 3). The Save mode stores all the menu settings in one of the Save setup numbers. - Page 14 Note that your setup is saved to one of the 4 setups and overwrites the previous setup associated with this setup number. 5.5.2 Recalling a Setup To recall a setup select Recall from the advanced menu and select the setup number you want to recall. VP-506 - Operating the VP-506...
-
Page 15: Technical Specifications
12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") W, D, H WEIGHT: 0.3kg (0.67lbs) approx ACCESSORIES: Power supply, mounting bracket OPTIONS: RK-1 19" rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com VP-506 - Technical Specifications... - Page 17 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
