Page 1: User Manual

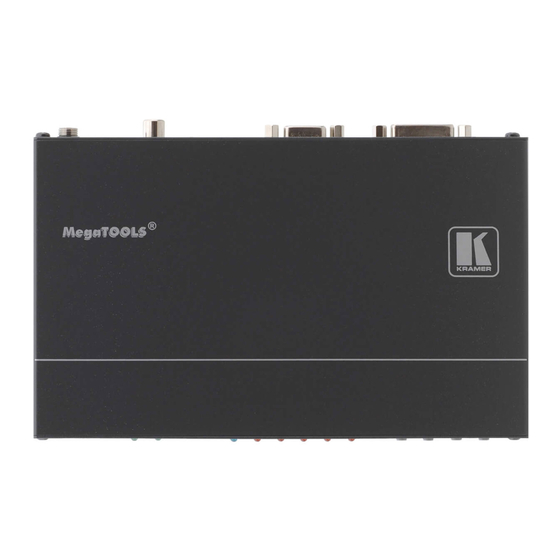

Kramer Electronics, Ltd. USER MANUAL Model: VP-417 Video to PC/HD/DVI Scaler... -
Page 2: Table Of Contents
Table 2: VP-417 Video to PC/HD/DVI Scaler Rear Panel Features Table 3: 15-pin HD Pinout for HD Table 4: The Main Menu Parameters and Functions Table 5: The OSD Submenu Parameters and Functions Table 6: Technical Specifications of the VP-417 Video to PC/HD/DVI Scaler... -
Page 3: Introduction
Our 1,000-plus different models now appear in 11 groups that are clearly defined by function. Thank you for purchasing your Kramer VP-417 Video to PC/HD/DVI Scaler which is ideal for: •... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
RGBHV (PC) and DVI video outputs • An external +5V DC power source, making it suitable for field operation You can operate your VP-417 directly via the front panel push buttons and the OSD. To achieve the best performance: •... -
Page 6: Defining The Vp-417 Video To Pc/Hd/Dvi Scaler
Figure 1 Table 1 define the VP-417 Video to PC/HD/DVI Scaler front panel features. Figure 1: VP-417 Video to PC/HD/DVI Scaler Front Panel Table 1: VP-417 Video to PC/HD/DVI Scaler Front Panel Features Feature Function INPUT SELECT Input selector Press to toggle between the CV or the Y/C (s-Video) input... -
Page 7: Connecting The Vp-417 Video To Pc/Hd/Dvi Scaler
Connecting the VP-417 Video to PC/HD/DVI Scaler Figure 2: VP-417 Video to PC/HD/DVI Scaler Rear Panel Table 2: VP-417 Video to PC/HD/DVI Scaler Rear Panel Features Feature Function DVI OUT Connector Connect to the DVI acceptor Outputs PC/HD OUT 15-pin HD Connector... -
Page 8: Operating The Vp-417 Video To Pc/Hd/Dvi Scaler
5. Connect the 5V DC power adapter to the power socket and to the mains electricity (not shown in Figure Operating the VP-417 Video to PC/HD/DVI Scaler The VP-417 is operated directly via the front panel buttons and via the OSD (On-screen Display) menu (see Section 6.2). -
Page 9: Using The Osd
1 That is, the user is not within the OSD menu 2 When on, the VP-417 disables its output syncs after a few minutes when no input source is detected. This feature is useful for applications where the projector should automatically shut down when no source is present... -
Page 10: 6.2.2 The Osd Settings Submenu
Exits the OSD Settings submenu to the Main Menu (see Table Native Output Resolution When the output resolution is set to Native, the VP-417 reads the EDID of the display and sets the output resolution accordingly. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 11: Technical Specifications
Technical Specifications Table 6 lists the technical specifications of the VP-417. Table 6: Technical Specifications of the VP-417 Video to PC/HD/DVI Scaler INPUTS: 1 Y/C (s-Video) 1Vpp (Y); 0.3Vpp (C)/75Ω on a 4-pin connector 1 CV 1Vpp/75Ω on an RCA connector... - Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 13 For the latest information on our products and a list of Kramer distributors visit www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
