Summary of Contents for Kramer VP-510
-
Page 1: User Manual
USER MANUAL MODEL: VP-510 4K to 2K Down-Converter P/N: 2900-300449 Rev 2 www.kramerAV.com... -
Page 3: Table Of Contents
Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the VP-510 4K to 2K Down-Converter Connecting the VP-510 Technical Specifications Figures Figure 1: VP-510 4K to 2K Down-Converter Figure 2: Connecting the VP-510 4K to 2K Down-Converter VP-510 – Contents... -
Page 4: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration. Congratulations on purchasing your Kramer VP-510 4K to 2K Down-Converter. This product, which incorporates HDMI™ technology, is ideal for: •... -
Page 5: Getting Started
Avoid interference from neighbouring electrical appliances that may adversely influence signal quality • Position your VP-510 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The VP-510 is a down-converter for 4K HDMI signals. The unit takes a 4K resolution input, provides a loop output and down-converts it to 2K resolution. It allows the use of legacy equipment with the latest 4K signals. When used with a non-4K (or unsupported 4K) input source, the input is routed to the output with no down-conversion or scaling. -
Page 8: Defining The Vp-510 4K To 2K Down-Converter

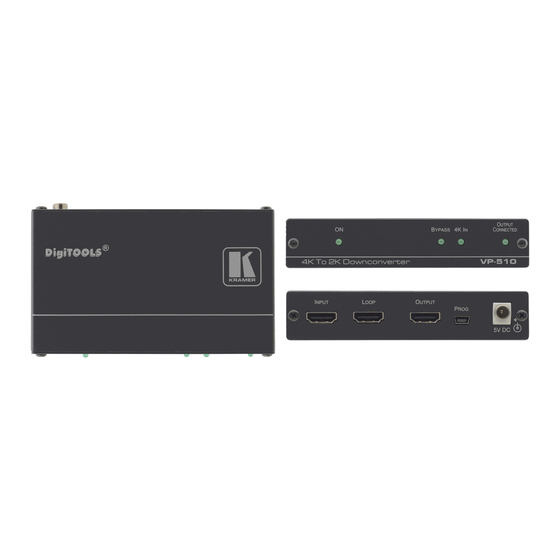

Defining the VP-510 4K to 2K Down-Converter This section defines the VP-510. Figure 1: VP-510 4K to 2K Down-Converter Feature Function ON LED Lights when the unit is power on BYPASS LED Lights when a source is connected and the signal is... -
Page 9: Connecting The Vp-510
Connecting the VP-510 Always switch off the power to each device before connecting it to your VP-510. After connecting your VP-510, connect its power and then switch on the power to each device. Note: The EDID is read through the loop output. The last EDID connected is saved as a default for when there is no connection to the loop output. -
Page 10: Technical Specifications
12.0cm x 7.2cm x 2.4cm (4.72” x 2.81” x 0.96”) W, D, H WEIGHT: 0.16kg (0.35lbs) INCLUDED ACCESSORIES: Power supply OPTIONAL: RK-3T 19” rack adapter Specifications are subject to change without notice For the most updated resolution list, go to our Web site at http://www.kramerelectronics.com VP-510 - Technical Specifications... -
Page 12: Safety Warning
SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site to find updates to this user manual. We welcome your questions, comments, and feedback.
