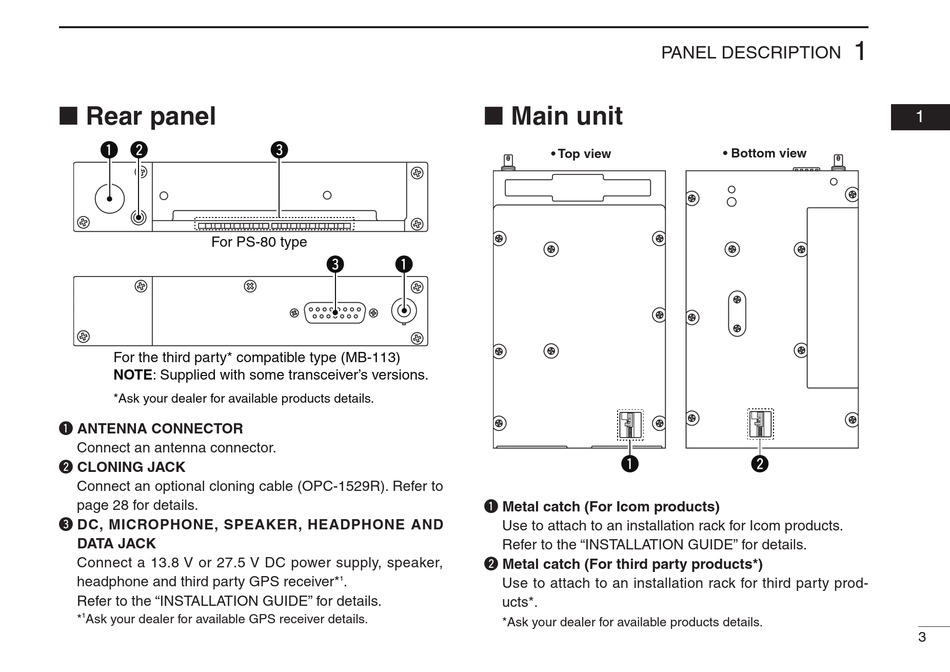

■ Rear panel

q w
For PS-80 type
For the third party* compatible type (MB-113)
NOTE: Supplied with some transceiver's versions.
*Ask your dealer for available products details.
q ANTENNA CONNECTOR
Connect an antenna connector.
w CLONING JACK
Connect an optional cloning cable (OPC-1529R). Refer to
page 28 for details.
e DC, MICROPHONE, SPEAKER, HEADPHONE AND
DATA JACK
Connect a 13.8 V or 27.5 V DC power supply, speaker,
headphone and third party GPS receiver*
Refer to the "INSTALLATION GUIDE" for details.
* 1 Ask your dealer for available GPS receiver details.
e
e q
.
1
PANEL DESCRIPTION

■ Main unit

• Top view
q
q Metal catch (For Icom products)
Use to attach to an installation rack for Icom products.
Refer to the "INSTALLATION GUIDE" for details.
w Metal catch (For third party products*)
Use to attach to an installation rack for third party prod-
ucts*.
*Ask your dealer for available products details.
