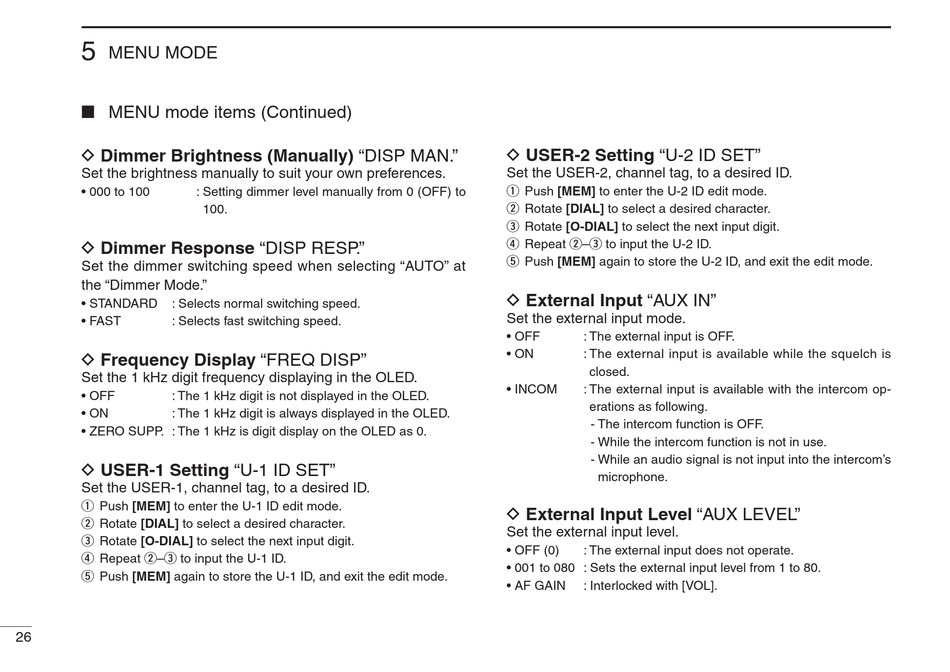

Icom IC-A210 Instruction Manual page 30

5
MENU MODE
■ MENU mode items (Continued)
D Dimmer Brightness (Manually) "DISP MAN."
Set the brightness manually to suit your own preferences.
• 000 to 100
D Dimmer Response "DISP RESP."
Set the dimmer switching speed when selecting "AUTO" at
the "Dimmer Mode."
• STANDARD : Selects normal switching speed.
• FAST : Selects fast switching speed.
D Frequency Display "FREQ DISP"
Set the 1 kHz digit frequency displaying in the OLED.
• OFF : The 1 kHz digit is not displayed in the OLED.
• ON : The 1 kHz digit is always displayed in the OLED.
• ZERO SUPP. : The 1 kHz is digit display on the OLED as 0.
D USER-1 Setting "U-1 ID SET"
Set the USER-1, channel tag, to a desired ID.
q Push [MEM] to enter the U-1 ID edit mode.
w Rotate [DIAL] to select a desired character.
e Rotate [O-DIAL] to select the next input digit.
r Repeat w–e to input the U-1 ID.
t Push [MEM] again to store the U-1 ID, and exit the edit mode.
26
: Setting dimmer level manually from 0 (OFF) to
100.
D USER-2 Setting "U-2 ID SET"
Set the USER-2, channel tag, to a desired ID.
q Push [MEM] to enter the U-2 ID edit mode.
w Rotate [DIAL] to select a desired character.
e Rotate [O-DIAL] to select the next input digit.
r Repeat w–e to input the U-2 ID.
t Push [MEM] again to store the U-2 ID, and exit the edit mode.
D External Input "AUX IN"
Set the external input mode.
• OFF : The external input is OFF.
• ON : The external input is available while the squelch is
closed.
• INCOM : The external input is available with the intercom op-
erations as following.
- The intercom function is OFF.
- While the intercom function is not in use.
- While an audio signal is not input into the intercom's
microphone.
D External Input Level "AUX LEVEL"
Set the external input level.
• OFF (0) : The external input does not operate.
• 001 to 080 : Sets the external input level from 1 to 80.
• AF GAIN : Interlocked with [VOL].
