Specifications - Icom IC-A210 Instruction Manual

8

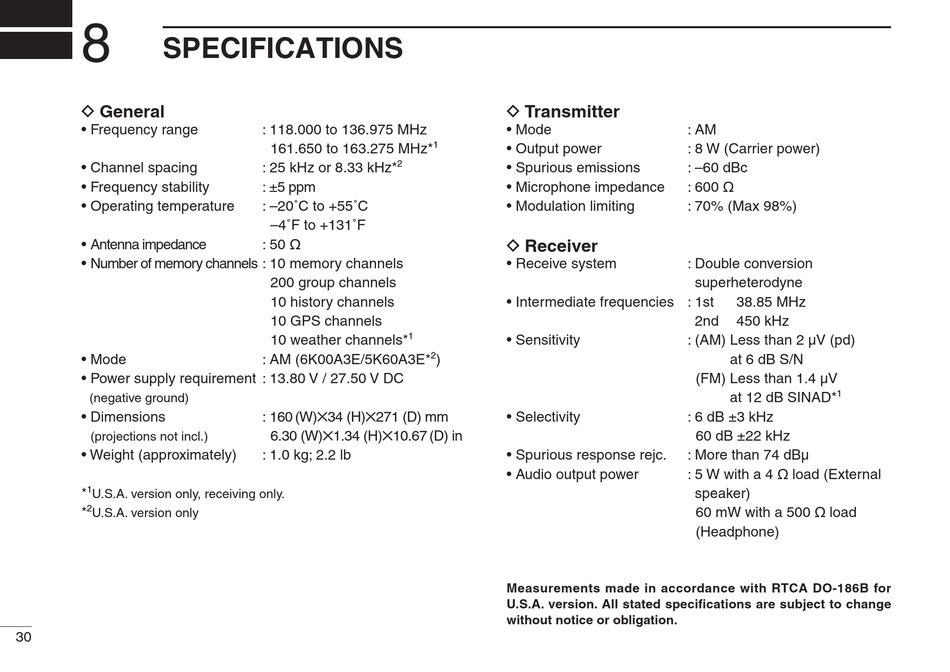

SPECIFICATIONS

D General
• Frequency range
• Channel spacing
• Frequency stability
• Operating temperature
• Antenna impedance
• Number of memory channels : 10 memory channels
• Mode
• Power supply requirement : 13.80 V / 27.50 V DC
(negative ground)
• Dimensions
(projections not incl.)
• Weight (approximately)
* 1
U.S.A. version only, receiving only.
2
*
U.S.A. version only
30
: 118.000 to 136.975 MHz
1
161.650 to 163.275 MHz*
2
: 25 kHz or 8.33 kHz*
: ±5 ppm
: –20˚C to +55˚C
–4˚F to +131˚F
: 50 ø
200 group channels
10 history channels
10 GPS channels
10 weather channels* 1
: AM (6K00A3E/5K60A3E* 2 )
: 160 (W)✕34 (H)✕271 (D) mm
6.30 (W)✕1.34 (H)✕10.67 (D) in
: 1.0 kg; 2.2 lb
D Transmitter
• Mode
• Output power
• Spurious emissions
• Microphone impedance
• Modulation limiting
D Receiver
• Receive system
• Intermediate frequencies : 1st
• Sensitivity
• Selectivity
• Spurious response rejc.
• Audio output power
Measurements made in accordance with RTCA DO-186B for
U.S.A. version. All stated specifications are subject to change
without notice or obligation.
: AM
: 8 W (Carrier power)
: –60 dBc
: 600 ø
: 70% (Max 98%)
: Double conversion
superheterodyne
38.85 MHz
2nd 450 kHz
: (AM) Less than 2 µV (pd)
at 6 dB S/N
(FM) Less than 1.4 µV
1
at 12 dB SINAD*
: 6 dB ±3 kHz
60 dB ±22 kHz
: More than 74 dBµ
: 5 W with a 4 ø load (External
speaker)
60 mW with a 500 ø load
(Headphone)
